Description

Price

10aa

Sheave Drive Pulley Fixed Ass'y

417224581

$209.99

10ab

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abh

417224747

$749.99

10abb

Bushing

293250389

$21.99

10abc

Circlip

293370137

$3.28

10abd

Slider

417224478

$31.99

10abe

Stopper

417224509

$2.29

10abf

Stopper

417224740

$2.19

10abg

Pin

417224510

$9.95

10abh

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10ac

Spider Drive Pulley Ass'y | Includes 10ac to 10acg

417224624

$209.99

10acc

Spring Guide

417224614

$10.49

10acd

Roller Pulley Ass'y

417224947

$35.99

10ace

Axle - 10mm

417224204

$10.49

10acf

Thrust Washer

417224868

$2.32

10acg

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224171

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10e

Ramp Pulley Ass'y 887

417224690

$31.99

10f

Pin Ramp

417224694

$10.49

10g

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10h

Coupling Flange

417224680

$45.99

10j

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127632

$539.99

100ac

Pulley Roller

417127016

$24.49

100ad

Pivot Stud

417127294

$14.49

100ae

Lock Washer 8 mm

250200009

$2.11

100af

Spring Pin

250400070

$2.00

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100bb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100bc

Circlip

293370049

$4.99

100c

Cam Ass'y | Includes 100c to 100c3

417127672

$159.49

100cb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100cc

Circlip

293370049

$4.99

100d

Green, Spring

417127137

$41.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

250000981

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300586

$154.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300561

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Duct Cooling

417300569

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

500

Rear Guard Support

417300579

$14.49

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11

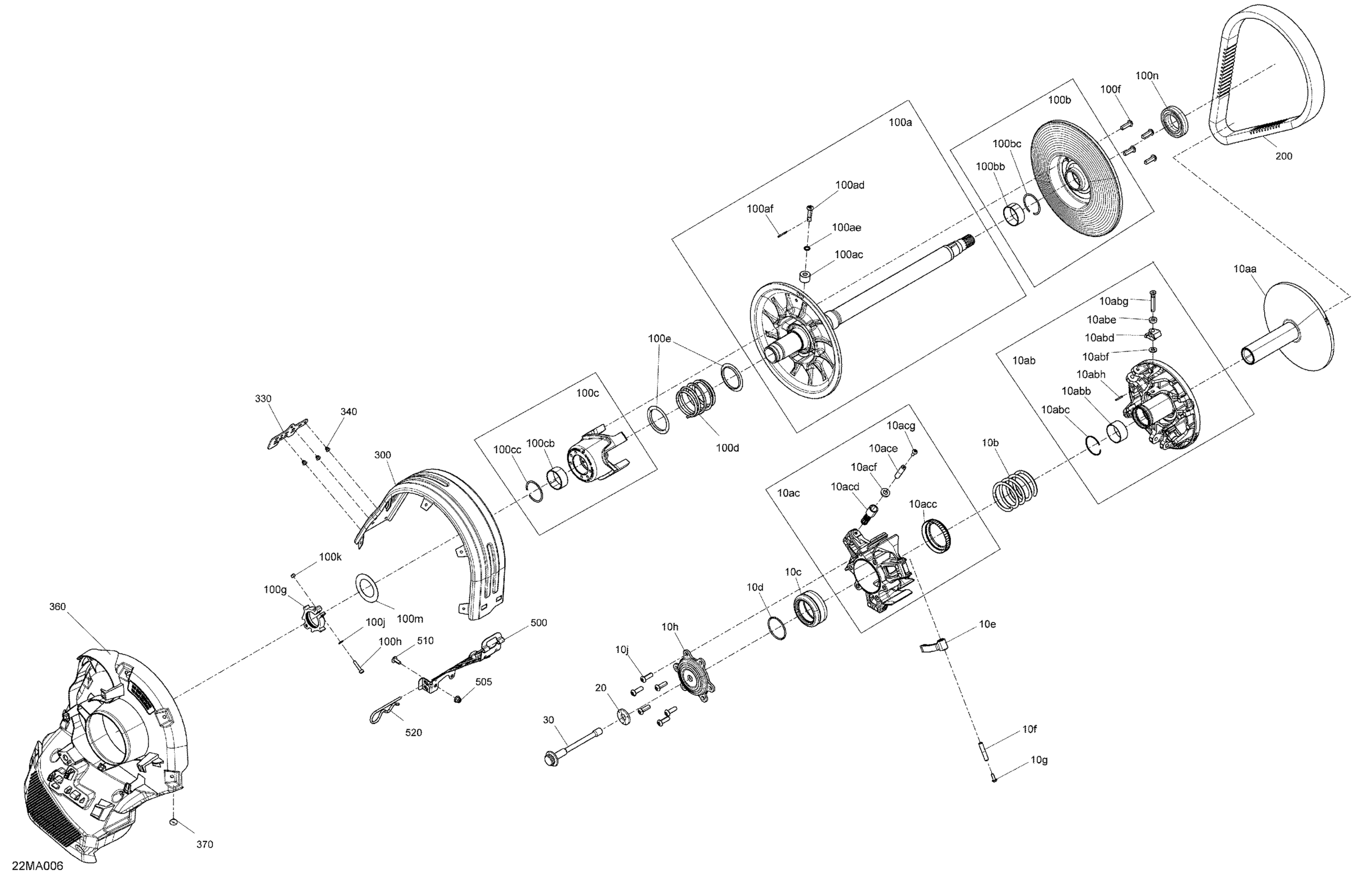

Ski-Doo TUNDRA 600 EFI - SPORT - 2021 Drive - Pulley Diagram

Sheave Drive Pulley Fixed Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abh

Bushing

Circlip

Slider

Stopper

Stopper

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley Ass'y | Includes 10ac to 10acg

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp Pulley Ass'y 887

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

Coupling Flange

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Duct Cooling

Pop Rivet 3/16"

Rear Guard Support

Hex. Flange Elastic Nut M6

Torx Screw M6 X 16

Hair Pin
