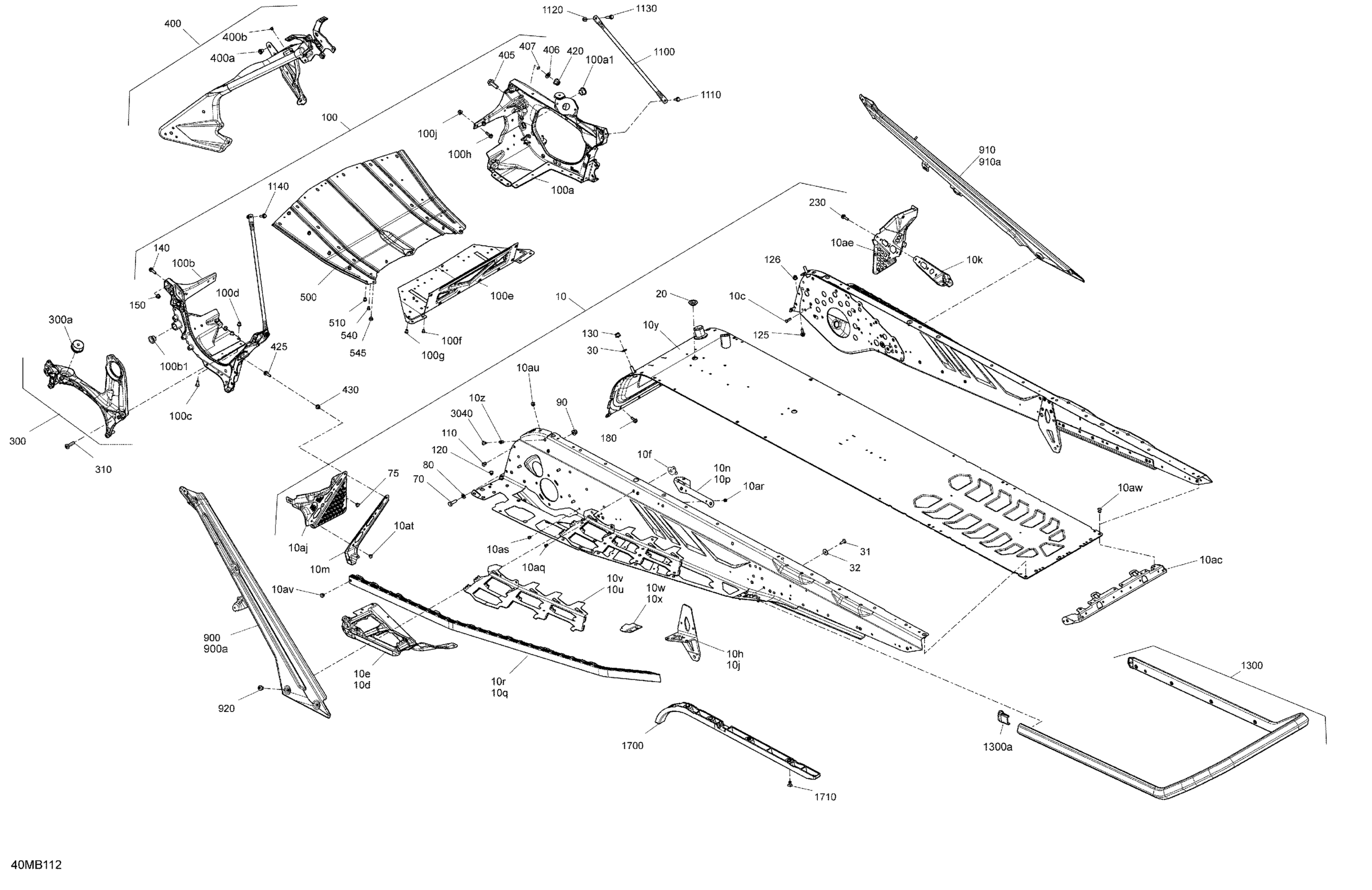

Ski-Doo TUNDRA 600 EFI - LT - Europe, 2022 Frame - System Diagram

Full Moon,Tunnel Chassis Module 154 | Includes 10 to 10aw

518333191

Unavailable

Clinch Stud M6 X 20

250300027

$1.87

Deep Black, RH Footrest Reinforcement

518332803

$77.58

Deep Black, LH Footrest Reinforcement

518332802

$16.39

Front Suspension Arm Reinforcement

518335959

$3.73

LH Bracket

518329632

$64.15

RH Rear Suspension Support

518334407

$37.28

Stirrup Reinforcement

518331253

$17.88

Deep Black, LH Chassis Reinforcement

518332924

$17.88

LH Under Chassis Reinforcement

518331744

$15.64

RH Under Chassis Reinforcement

518331745

$16.39

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

RH Tunnel Liner

518329646

$32.06

LH Tunnel Liner

518329647

$32.06

LH Reinforcement Plate

518329088

$2.99

RH Reinforcement Plate

518329089

$4.09

Radiator Tunnel 154

518335129

$658.93

Clinch Nut M6 Hexsert

605636003

$4.00

Rear Cap

518328990

$20.12

RH Footrest

518330691

$20.12

LH Foot Protector

518331559

$23.10

Avex Rivet

390909100

$0.28

Rivet

293150183

$2.00

Avex Rivet

390909200

$0.28

Hemlock Rivet, 6.5 mm

293150096

$3.07

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Conical Spring Washer M8

250200146

$0.96

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Hex Screw M8 X 30

250000942

$1.06

Hemlock Rivet, 6.5 mm

293150096

$3.07

Flat Washer 8 mm

234081410

$0.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Engine Chassis Module Ass'y | Includes 100 to 100j

518333200

Unavailable

RH Member Ass'y | Includes 100a to 100a3

518332687

$202.21

Leg Bushing

505072690

$5.75

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

Leg Bushing

505072690

$5.75

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

Collar Huck Magna-Grip 6.4

293150149

$0.36

Bottom Plate

518332716

$33.55

Avex Rivet

390909100

$0.28

Insert M5 X 0.8

293450268

$1.90

Hex. Flange Screw M6 X 20

207662046

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M6 X 20

207662046

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 16

207661646

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

Vibration Damper

512061516

$55.94

Screw-Pan HD.Torx M8X30

250001060

$0.75

Chassis Suspension Module | Includes 400 to 400n

518335307

$352.96

Insert M5 X 0.8

293450268

$1.90

Rivet Avibulb 3/16

293150203

$0.28

Screw Hex M10 X 30

250001148

$1.61

Flat Washer 10 mm

234001410

$1.12

O-Ring

505072448

$2.18

Hex. Flange Elastic Nut M10

250100165

$0.81

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Front Bottom Plate

518331615

$29.07

Insert M5 X 0.8

293450268

$1.90

Avex Rivet

390909100

$0.28

Rivet 6,4 mm

293150173

$3.88

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

LH Rear Diagonal Cross Member

518333356

$105.19

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$105.19

RH Rear Diagonal Cross Member

518332559

$105.19

Pan Head Torx Screw M8 X 12

250000887

$1.79

Upper Colomn Support

518329974

$20.12

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 25

207662556

$4.15

Hex. Flange Screw M6 X 20

207662046

$2.00

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$152.21

Bumper Cap

520001629

$0.93

Front Protector

518329982

$17.13

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$1.87
