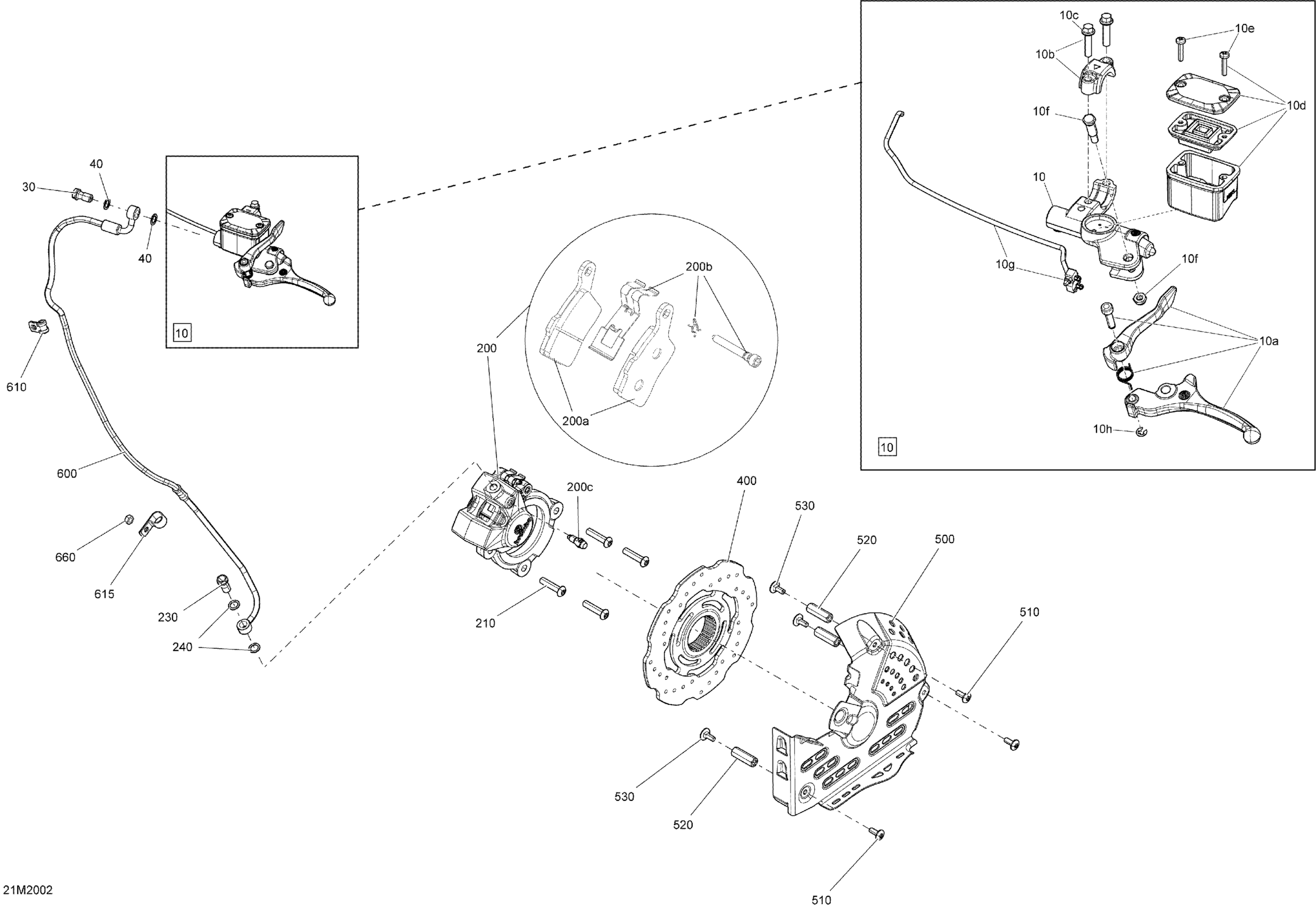

Ski-Doo 001 - TUNDRA 600 ACE - Europe, 2020 06- Brakes - System Diagram

Description

Price

Master Cylinder Ass. | Includes 10 to 10g

507032596

$224.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10c

Hex. Flange Screw M6 X 25

250000447

$2.11

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10e

Screw M4 X 20

415129356

$2.22

10f

Pin Ass'y

415030000

$19.99

10g

Microswitch This part replaces 507032592.

507032597

$68.99

10h

Circlip | Model-RS

414439000

$4.23

Banjo Bolt

507032551

$5.61

Copper Washer

705601628

$4.44

200

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt

507032551

$5.61

240

Copper Washer

705601628

$4.44

400

Disc

507032487

$185.49

500

Aluminum Disk Protector

507032446

$28.99

510

Torx Screw M6 X 16

250000365

$2.11

520

Threaded Tube

507032497

$15.72

530

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

600

Hose

507032535

$46.49

610

Open Clamp

414108400

$3.17

615

Open Clamp

414108400

$3.17

660

Elastic Stop Nut M6

232561414

$0.55
