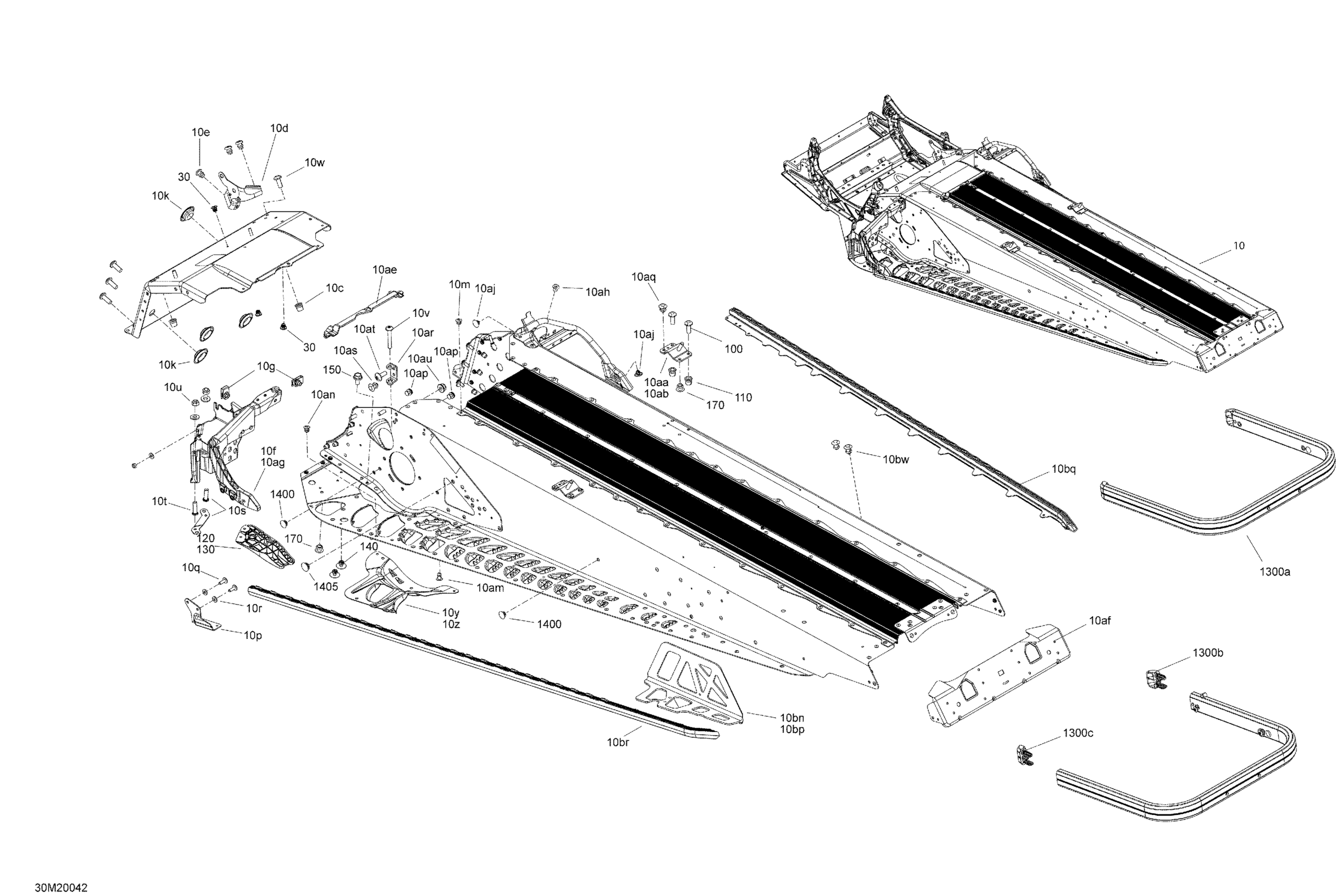

Ski-Doo 001 - TUNDRA 550F - North America, 2020 09- Frame - Rear Section Diagram

#

Description
Price

10

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

$3.00

10

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

10c

Collar Huck Magna-Grip 6.4

293150149

$0.48

10d

RH Engine Support

518325559

$19.49

10e

Hemlock Rivet, 6.5 mm

293150096

$3.27

10f

LH Stirup

518326820

$37.99

10g

Panel Nut M5 X 0.8

250000958

$4.23

10k

Black, Plug

293730052

$9.19

10m

Rivet Avibulb 3/16

293150203

$2.09

10p

Support

518326960

$12.99

10q

Tork Screw M6 X 18

250000536

$2.11

10r

Flat Washer

250200039

$0.74

10s

Attach | Includes 10n to 10p

518326986

$12.99

10t

Clinch Stud M6 X 20

250300027

$2.09

10u

Elastic Stop Nut M6

232561414

$0.55

10v

Torx Screw M8 X 55

250000535

$3.17

10w

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

10y

RH Reinforcement

518324874

$27.99

10z

LH Reinforcement

518324875

$27.99

10aa

RH Rear Base

518325973

$21.99

10ab

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10ae

Seal

518326656

$9.19

10af

Rear Cap

518327105

$22.49

10ag

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

10ah

Avex Rivet

390909200

$0.30

10aj

Full Moon Dart 5 mm

293730042

$2.21

10am

Avex Rivet

390909100

$0.30

10an

Stavex Rivet

293150144

$0.82

10ap

Henrob Rivet

293150146

$2.09

10aq

Hemlock Rivet, 6.4 mm

293150174

$7.86

10ar

U-Attach

518326961

$10.99

10as

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10at

Tork Screw M6 X 16

250000534

$2.11

10au

Hex. Flange Nut M6

233061414

$1.68

10bn

RH Bracket | Sport

518328787

$79.99

10bn

RH Slide Bracket

518325955

$45.99

10bp

LH Bracket | Sport

518328788

$79.99

10bp

LH Slide Bracket

518325956

$49.99

10bq

RH ROLLER - Call your local BRP dealership

518325377

$69.99

10bq

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

10br

LH Roller

518325378

$76.99

10br

LH Roller | Includes 10bd to 10be

518325160

$78.99

10bw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

30

Pop Rivet 3/16"

390402400

$0.35

100

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

110

Collar Huck Magna-Grip 6.4

293150149

$0.48

120

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

140

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

170

Hemlock Rivet, 6.4 mm

293150174

$7.86

1300a

Clear Rear Bumper | Sport

518325577

$111.49

1300a

Clear Rear Bumper

518325579

$111.49

1300b

Full Moon RH Cap

520000711

$8.79

1300c

Full Moon LH Cap

520000712

$9.19

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55
