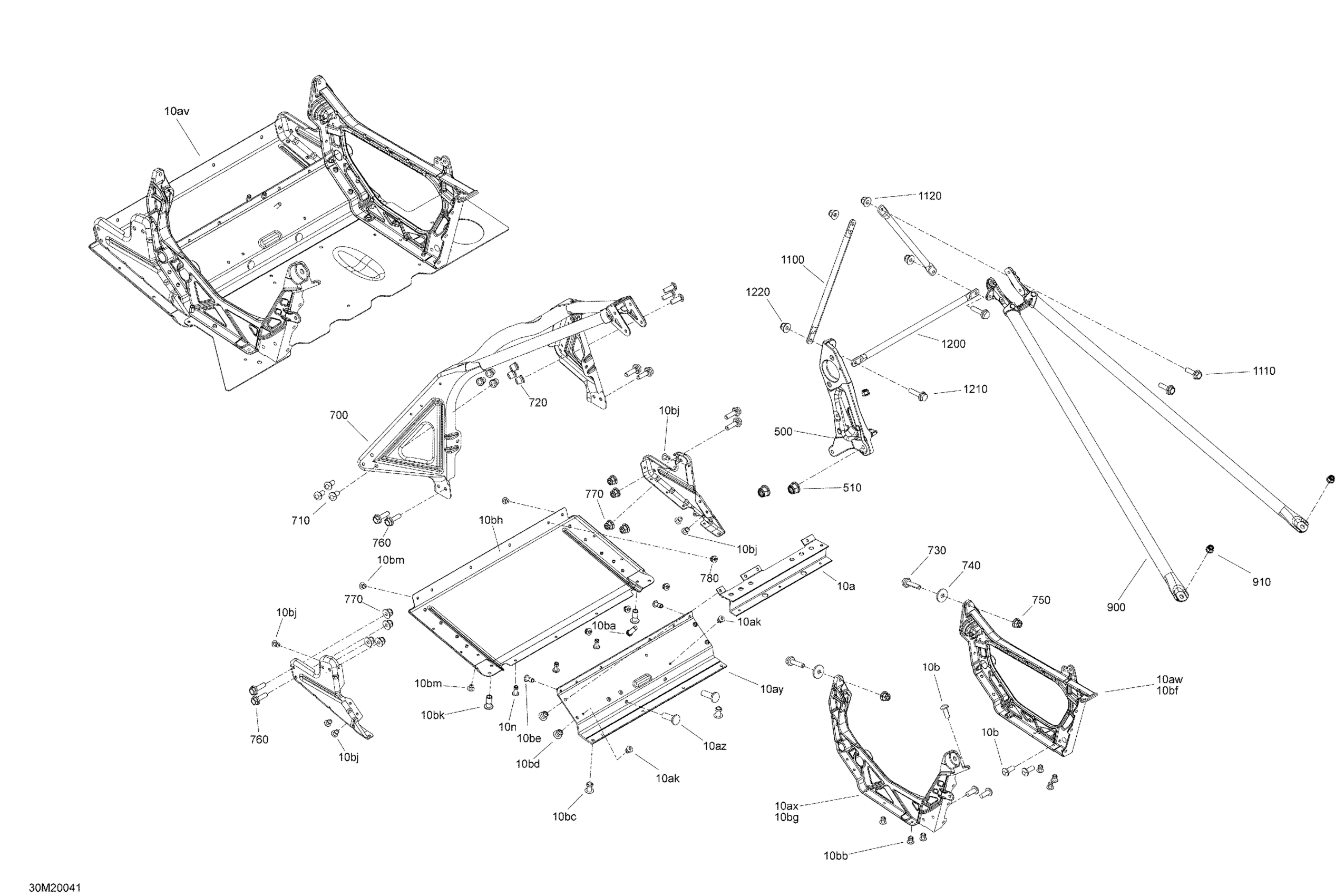

Ski-Doo TUNDRA 550F - 2020 Frame - Front Section Diagram

#

Description
Price

10a

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

10b

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

10n

Monobolt Rivet, 4.8 mm

293150191

$0.99

10ak

Rivet Avibulb 3/16

293150203

$2.09

10av

Module E Tundra | Includes 10av to 10bm

518326926

$519.99

10aw

RH Member

518326795

$284.99

10ax

LH Member

518325558

$249.99

10ay

Front Member | Includes 10as to 10at

518325818

$58.99

10az

Clinch Stud

250300038

$4.29

10ba

Clinch Stud M6 X 20

250300027

$2.09

10bb

Stavex Rivet

293150144

$0.82

10bc

Hemlock Rivet 6.5 mm

293150120

$7.41

10bd

Hemlock Rivet, 6.5 mm

293150119

$4.29

10be

Monobolt Rivet, 4.8 mm

293150191

$0.99

10bf

RH Front Member

518325949

$19.99

10bg

LH Front Member

518325950

$19.49

10bh

Front Bottom Plate

518325951

$31.99

10bj

Avex Rivet

390909100

$0.30

10bk

Monobolt Rivet 6.4

293150182

$3.09

10bm

Avex Rivet

390909200

$0.30

500

Pulley Support

518328346

$129.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

700

Front Member, S Module

518326557

$369.99

710

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

720

Collar Huck Magna-Grip 6.4

293150149

$0.48

730

Hex. Flange Screw M6 X 25

207662544

$0.64

740

Flat Washer

224061201

$1.37

750

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

760

Hex. Flange Screw M6 X 20

207662044

$2.00

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

780

Pop Rivet 3/16"

390402200

$0.35

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
