Description

Price

10

Chaincase

504153181

$349.99

10a

Plate | Not Shown

518325816

$79.99

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket, 19 Teeth

504152031

$109.99

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Kit Sprocket This part replaces 504152593.

861805538

$164.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300122

$2.11

1160

Magnetic Cap

504152619

$23.49

1500

Drive Chain, 102 Links

504152579

$153.49

1510

Hex. Nut M10 X 1.5

232006414

$1.37

1520

Adjustment Screw

504152602

$12.49

1530

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

1550

Bonded Washer

250200100

$2.11

1600

Tensioner chain

504153429

$15.99

1610

Slider Chain

504152739

$65.99

1640

Tensioner Axle

504152841

$16.34

1650

Circlip

504152282

$3.17

1700

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

1700a

Casting Cover

504153151

$194.99

1700b

Rotation Sensor

504152896

$37.99

1710

Tight Seal

293300130

$7.51

1720

Hex. Flange Screw M6 X 30

250001013

$2.11

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

2030

O-Ring

293300122

$2.11

2040

Magnetic Cap

504152619

$23.49

2050

Circlip

504152572

$6.95

2500

Bearing Housing

504153185

$29.49

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

2520

Ball Bearing

293350074

$38.49

2550

Countershaft

504153000

$593.49

3000

Drive Axle Ass'y

504154054

$529.99

3000a

Retaining Ring

504153886

$21.99

3000b

Ball Bearing

293350059

$30.99

3200

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

3200

Track Ass'y, 16X137X1.2C | LT

504152907

$959.99

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

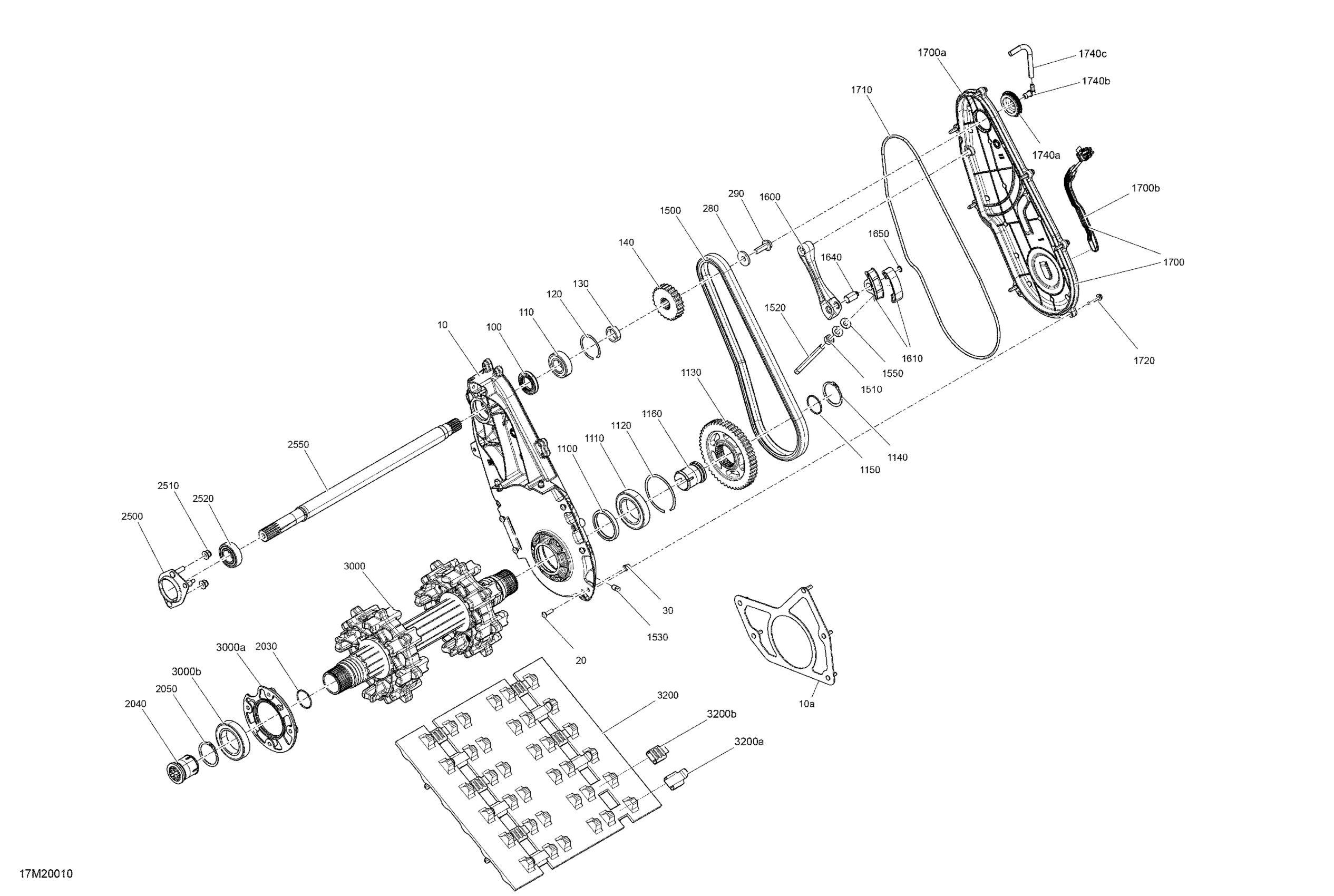

Ski-Doo 001 - TUNDRA 550F - North America, 2020 05- Drive - System Diagram

Chaincase

Plate | Not Shown

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket, 19 Teeth

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152593.

Circlip

O-Ring

Magnetic Cap

Drive Chain, 102 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Bonded Washer

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Casting Cover

Rotation Sensor

Tight Seal

Hex. Flange Screw M6 X 30

Cap

Male Connector

Polyurethane Hose 10000Mm Long

O-Ring

Magnetic Cap

Circlip

Bearing Housing

Hex. Flange Elastic Nut M8

Ball Bearing

Countershaft

Drive Axle Ass'y

Retaining Ring

Ball Bearing

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

Track Ass'y, 16X137X1.2C | LT

Track Guide | Track Width 16''

Cleat

Track Guide | Track Width 16''

Cleat
