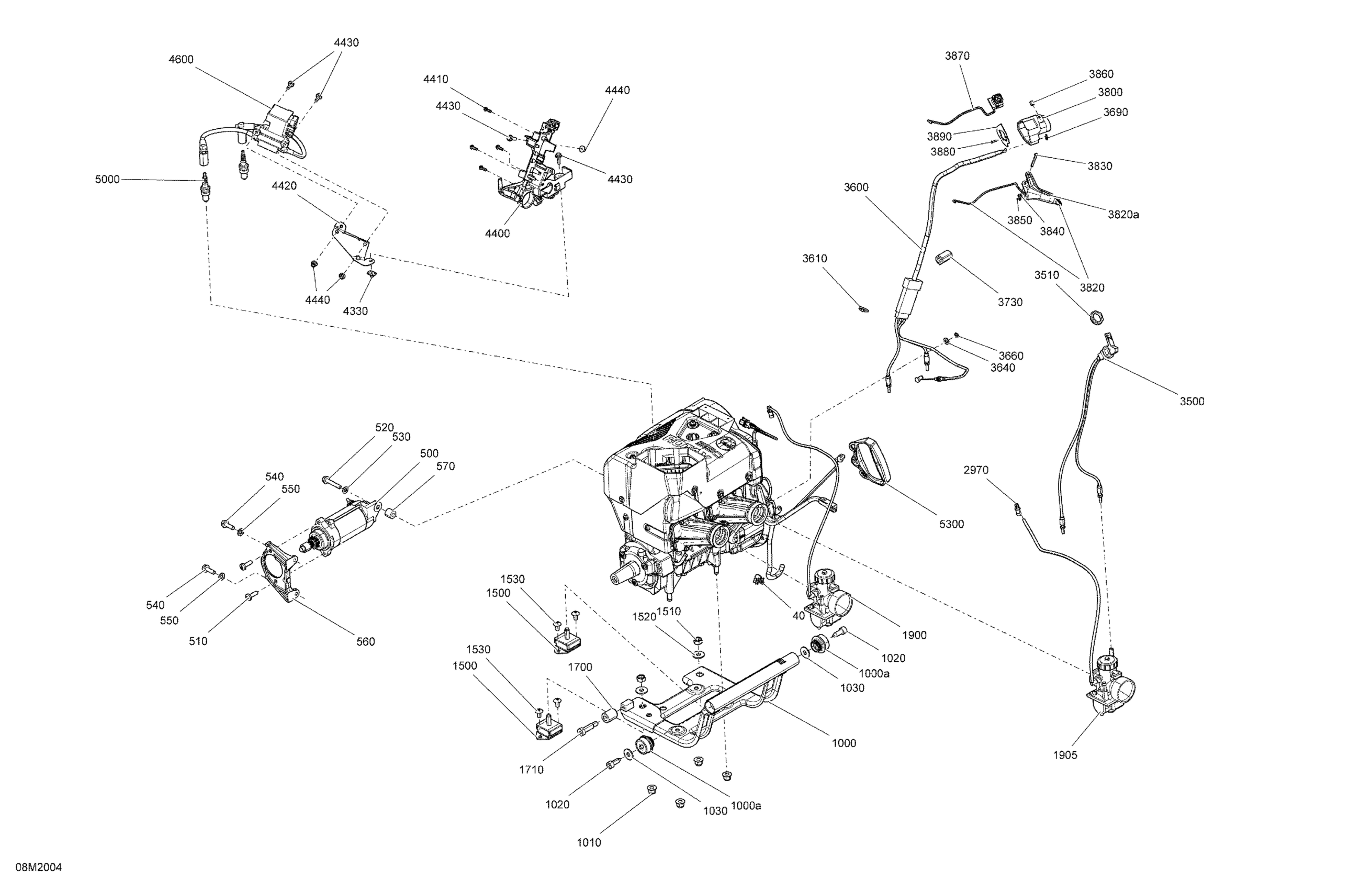

Ski-Doo TUNDRA 550F - 2020 Engine - System Diagram

#

Description
Price

40

Clip

515177066

$4.00

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

520

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

530

Flat Washer With Teflon 8 mm

250200008

$3.12

540

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

550

Conical Spring Washer M8

250200146

$0.83

560

Support

512060656

$56.89

570

Spacer

515176597

$13.58

1000

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

1000a

Rubber Mount

512059691

$44.58

1010

Hex. Flange Elastic Nut M10

233201414

$1.26

1020

Screw M10 X 30

250000094

$23.05

1030

Flat Washer M10 | 4X4

250200014

$1.17

1500

Rubber Mount

512060564

$39.97

1510

Elastic Stop Nut M10

232500416

$1.56

1520

Flat Washer M10 | 4X4

250200014

$1.17

1530

Torx Truss Screw M8 X 16

250000746

$2.78

1700

Stopper

512060395

$17.66

1710

Socket Head Screw, Scotch Grip

250000463

$7.31

1900

Carburetor VM30-219, PTO

403138814

$299.20

1905

Carburetor VM30-218, MAG

403138813

$304.58

1920

Gemi Clamp | Not Shown

512059834

$10.52

2970

Male Connector

414814100

$2.18

3500

Choke Cable

512060676

$93.05

3510

Plastic Nut

512060671

$0.98

3600

Throttle Cable

512060885

$76.12

3640

Flat Washer 8 mm, Nylon

234081100

$1.00

3660

Circlip

414753500

$0.59

3690

Circlip

414274500

$0.74

3730

Protector

512060313

$9.31

3800

Throttle Housing

512060603

$10.57

3820

Handle Ass'y | Includes 3820 to 3820a

512061251

$89.97

3820a

Handle, 30 mm

572084501

$16.12

3830

Lever Pin

414438700

$11.14

3840

Flat Washer M5, Stainless

234051600

$0.64

3850

Circlip

293370050

$0.46

3860

Socket Set Screw M8 X 10

414440800

$4.00

3870

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

3880

Torx Truss Screw M2 X 12

250000756

$6.26

3890

Plate

512060390

$9.31

4330

Nut Welded, M6

293100003

$6.32

4400

Coils Support

512060924

$9.31

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

4420

Coils Support

512060460

$18.43

4430

Hex. Flange Screw M6 X 20

207662044

$1.66

4440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4600

Calibrated Module

512060324

$579.99

5000

Spark Plug NGK BR9ECS-5

512059552

$9.70

5300

Starter Grip

512060136

$14.54
