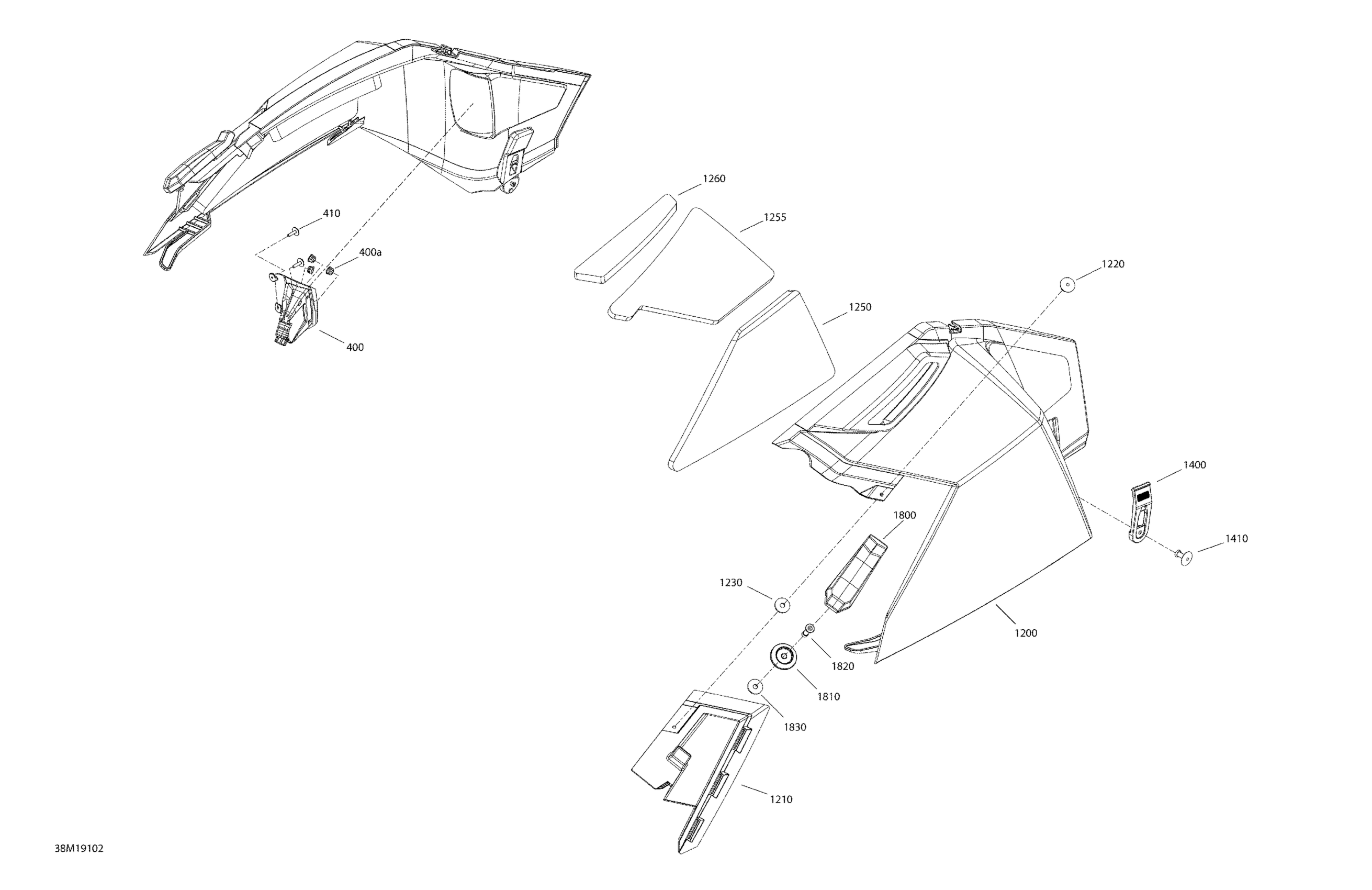

Ski-Doo Tundra 550F, 2019 Hood - Panel Section Diagram

Description

Price

400

Black, RH Console | Includes 400 to 400b

517304322

$33.82

400a

Black, Cap

275500241

$2.76

410

Screw M4 X 16

250000725

$2.87

1200

RH Panel

517305016

$203.05

1210

RH Insert

517304090

$26.89

1220

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1230

Washer

517124300

$0.16

1250

Foam

517304870

$27.66

1255

Foam

517304871

$12.69

1200

LH Panel

517305017

$203.05

1210

LH Panel Insert

517304092

$26.89

1220

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1230

Washer

517124300

$0.16

1250

Foam

517304874

$27.66

1255

Foam

517304875

$12.69

1260

Foam

517304880

$27.66

1400

Rear Panel Latch

517304999

$16.89

1410

Pop Rivet 3/16”

293150108

$1.23

1800

Front Latch Panel

517305186

$20.74

1810

Anchor Link

517304320

$12.62

1820

Pop Rivet 3/16"

293150014

$0.87

1830

Washer

517124300

$0.16
