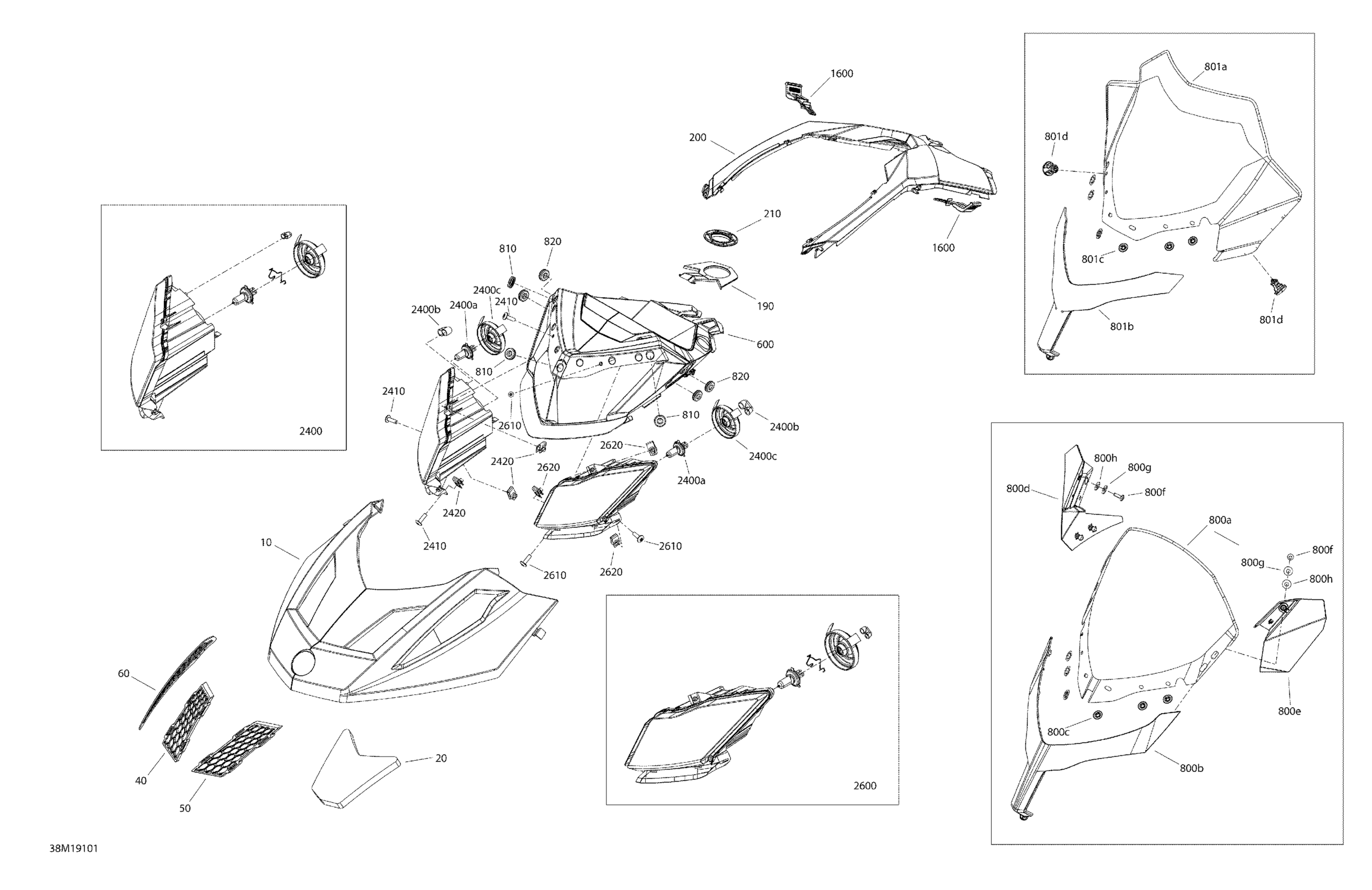

Ski-Doo Tundra 550F, 2019 Hood - Hood Section Diagram

#

Description
Price

10

Hood

517305014

$217.13

20

Foam Hood

517304877

$26.84

40

RH Hood Grille

517303805

$28.33

50

LH Hood Grille

517303804

$28.33

60

RH Lateral Hood Grille

517304187

$32.06

190

Deep Black, Cap Console

517304027

$12.67

200

Console

517305015

$201.46

210

Console Nut

517306602

$10.88

600

Indicator Support

517303999

$101.46

800a

Windshield (430) | Package Sport

517305720

$158.93

800b

Medium Windshield Support

860200229

$32.06

800c

Push Nut

732610072

$1.72

800d

RH Console Air Deflector

517304024

$29.07

800e

LH Console Air Deflector

517304025

$29.07

800f

Torx Screw K50 X 16

250000720

$1.39

800g

Washer M5

250200025

$0.61

800h

Rubber Washer 5 mm

250200024

$1.77

801a

Windshield (20'') | Package LT

517305721

$187.28

801b

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

860200228

Unavailable

801c

Push Nut

732610072

$1.72

801d

Button

517304744

$1.90

810

Grommet

517303756

$3.15

820

Grommet

517303756

$3.15

1600

Center Panel Latch

517304093

$14.90

2400

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

2400

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

2400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2400b

Cap

515176498

$11.82

2400c

Rubber Cap Protector

219800280

$17.13

2410

Torx Truss Screw M6 X 20

250000705

$1.74

2420

Panel Nut M6 X 1.0

250100198

$1.73

2610

Torx Truss Screw M6 X 20

250000705

$1.74

2620

Panel Nut M6 X 1.0

250100198

$1.73
