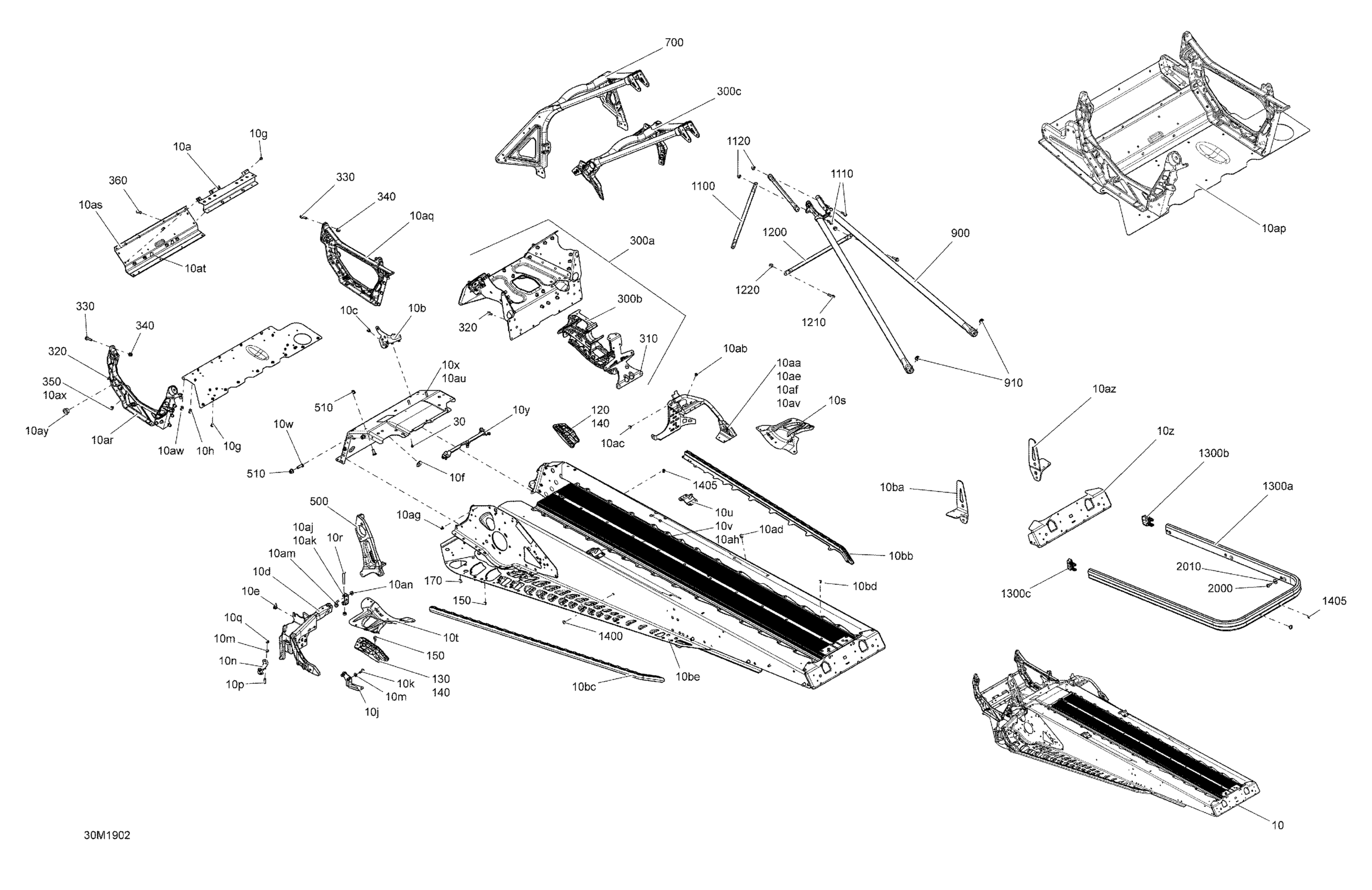

Ski-Doo Tundra 550F, 2019 Châssis - 550F Diagram

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

Unavailable

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

RH Engine Support

518325559

$18.43

Hemlock Rivet, 6.5 mm

293150096

$3.17

LH Stirup

518326820

$36.89

Panel Nut M5 X 0.8

250000958

$3.48

Black, Plug

293730052

$6.37

Rivet Avibulb 3/16

293150203

$0.29

Monobolt Rivet, 4.8 mm

293150191

$0.95

Support

518326960

$9.71

Tork Screw M6 X 18

250000536

$2.06

Flat Washer

250200039

$0.72

Attach | Includes 10n to 10p

518326986

$9.71

Clinch Stud M6 X 20

250300027

$1.92

Elastic Stop Nut M6

232561414

$1.55

Torx Screw M8 X 55

250000535

$2.63

RH Reinforcement

518324874

$25.35

LH Reinforcement

518324875

$25.35

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

Clinch Stud

250300038

$4.00

Clinch Stud M6 X 20

250300027

$1.92

Seal

518326656

$8.43

Rear Cap

518327105

$20.74

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

Avex Rivet

390909200

$0.29

Full Moon Dart 5 mm

293730042

$2.12

Rivet Avibulb 3/16

293150203

$0.29

Avex Rivet

390909100

$0.29

Stavex Rivet

293150144

$0.77

Henrob Rivet

293150146

$1.92

Hemlock Rivet, 6.4 mm

293150174

$6.43

U-Attach

518326961

$8.45

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Tork Screw M6 X 16

250000534

$1.74

Hex. Flange Nut M6

233061414

$1.34

Module E Tundra | Includes 10av to 10bm

518326926

$477.66

RH Member

518326795

$259.97

LH Member

518325558

$230.74

Front Member | Includes 10as to 10at

518325818

$54.58

Clinch Stud

250300038

$4.00

Clinch Stud M6 X 20

250300027

$1.92

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Monobolt Rivet, 4.8 mm

293150191

$0.95

RH Front Member

518325949

$18.43

LH Front Member

518325950

$17.66

Front Bottom Plate

518325951

$29.97

Avex Rivet

390909100

$0.29

Monobolt Rivet 6.4

293150182

$2.91

Avex Rivet

390909200

$0.29

RH Bracket | Sport

518328787

$75.35

RH Slide Bracket

518325955

Unavailable

LH Bracket | Sport

518328788

$73.82

LH Slide Bracket

518325956

$46.12

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

LH Roller

518325378

$76.99

LH Roller | Includes 10bd to 10be

518325160

$78.43

Stavex Rivet

293150144

$0.77

Rivet Avibulb 3/16

293150203

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Pop Rivet 3/16"

390402400

$0.25

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hemlock Rivet, 6.4 mm

293150174

$6.43

Pulley Support

518328346

$117.66

Hex. Flange Elastic Nut M8

233281414

$1.14

Front Member, S Module

518326557

$336.89

Hex. Flange Screw M6 X 25

207662544

$0.53

Flat Washer

224061201

$1.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Pop Rivet 3/16"

390402200

$0.26

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Lateral Column Support

518325114

$20.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Center Column Support

518325115

$20.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Clear Rear Bumper | Sport

518325577

$109.97

Clear Rear Bumper

518325579

$109.97

Full Moon RH Cap

520000711

$8.60

Full Moon LH Cap

520000712

$8.60

Full Moon Dart 8 mm

293730041

$2.12

Full Moon Dart 10 mm

293730059

$4.42

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11
