Description

Price

100a

Black, RH Pivot Support Long

503195759

$88.99

100b

Black, LH Pivot Support Long

503195760

$88.99

100c

Runner Pivot | Includes 100c to 100c3

503192647

$56.99

100d

Hexagonal Nut M6

232061404

$0.34

100e

Hex. Elastic Stop Nut M8

232581414

$0.56

100f

Cam Axle

503191608

$17.49

100g

RH Spring Cam

503191190

$15.29

100h

LH Spring Cam

503191668

$12.58

100j

LH Block

503192426

$16.49

100k

RH Block

503192427

$16.49

100m

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

100n

Block Guide

503189488

$39.99

100p

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

100q

Washer | 7415/7416. 7417/7418.

503189148

$2.85

100r

Grease Fitting

408200700

$3.49

100s

Rode

503192437

$6.19

100t

Flat Washer M5

234051410

$0.53

100u

Handle

503192438

$4.99

100v

Torx Screw M5 X 14

250000742

$1.47

100w

Circlip

293370068

$0.98

100x

Compression Spring

503192436

$38.99

105

Lower Shaft

503191279

$28.99

110

Bushing

503189324

$14.15

115

Washer

503192496

$0.77

120

Hex. Screw S.Grip M10 X 55

250000605

$8.11

125

Spring

503194624

$30.49

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503193435

$39.99

1100

Center Bushing

503191259

$11.49

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

2000a

Front Arm | Includes 2000a to 2000b

503191752

$370.99

2000b

Hexagonal Nut M6

232061404

$0.34

2000c

Extended Bushing

503191556

$7.83

2000d

Grease Fitting

408200700

$3.49

2000e

Rocker

503192211

$83.99

2000f

Swivel Bushing

503191555

$7.83

2000g

Bushing

503191552

$5.93

2000j

Bushing

503193037

$16.18

2000k

Bushing | Includes 240d to 240d1

503189282

$4.34

2000m

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000n

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191279

$28.99

2080

Bushing

503189324

$14.15

2100

Flat Washer

250200143

$3.17

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3000a

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

3000b

Hexagonal Nut M6

232061404

$0.34

3000c

Bushing

572080700

$17.39

3000d

Swivel Bushing

503191555

$7.83

3000e

LH Cam Adjuster

503191565

$16.49

3000f

RH Cam Adjuster

503191566

$16.49

3000g

E-Circlip

293370013

$0.65

3000h

Upper Axle, Pivot Arm

503144300

$11.65

3000j

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000k

Hexagonal Nut M6

232061404

$0.34

3000m

Washer

503189157

$3.28

3000n

Bolt M8, Short

732601197

$15.36

3000p

Hex. Elastic Stop Nut M8

232581414

$0.56

3000q

Grease Fitting

408200700

$3.49

3000r

Extended Bushing

503191556

$7.83

3000s

Washer

503191651

$8.32

3010

Black, LH Spring Square

503193158

$79.49

3020

Black, RH Spring Square

503193159

$79.49

3070

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503168800

$14.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191765

$18.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5570

Bushing

414936000

$13.99

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

7000

Black, Wheel Cap

503192771

$2.39

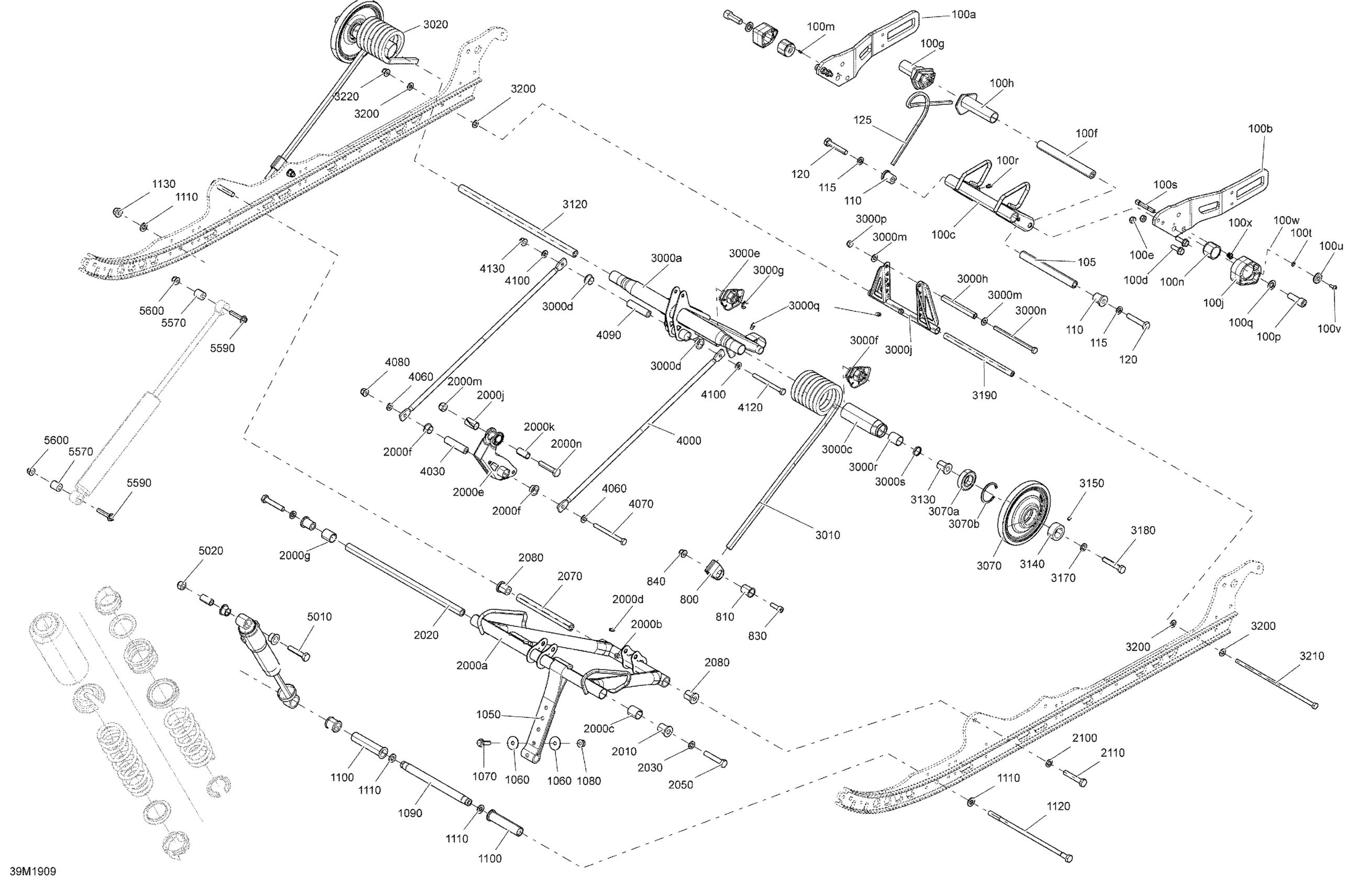

Ski-Doo 001 - Tundra 550F, 2019 08- Rear Suspension - LT - Upper Section Diagram

Black, RH Pivot Support Long

Black, LH Pivot Support Long

Runner Pivot | Includes 100c to 100c3

Hexagonal Nut M6

Hex. Elastic Stop Nut M8

Cam Axle

RH Spring Cam

LH Spring Cam

LH Block

RH Block

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

Block Guide

Socket Head Screw M12 X 35, Scotch Grip

Washer | 7415/7416. 7417/7418.

Grease Fitting

Rode

Flat Washer M5

Handle

Torx Screw M5 X 14

Circlip

Compression Spring

Lower Shaft

Bushing

Washer

Hex. Screw S.Grip M10 X 55

Spring

Spring Support Kit

Spring Support Kit

Socket Screw M8 X 25

Elastic Flange Nut M8

Stopper Strap

Flat Washer 8 mm

Hex. Flange Screw M8 X 30 | DS 650 X

Elastic Flange Nut M8

Pivot Axle

Center Bushing

Flat Washer

Bolt M10 X 251MM

Flange Elastic Nut M10

Front Arm | Includes 2000a to 2000b

Hexagonal Nut M6

Extended Bushing

Grease Fitting

Rocker

Swivel Bushing

Bushing

Bushing

Bushing | Includes 240d to 240d1

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5

Bushing

Upper Shaft

Washer

Hex. Screw S.Grip M10 X 55

Lower Shaft

Bushing

Flat Washer

Hex. Screw S.Grip M10 X 55

Rear Arm | Includes 3000a to 3000a7

Hexagonal Nut M6

Bushing

Swivel Bushing

LH Cam Adjuster

RH Cam Adjuster

E-Circlip

Upper Axle, Pivot Arm

Pivot Arm | Includes 3000j to 3000j3

Hexagonal Nut M6

Washer

Bolt M8, Short

Hex. Elastic Stop Nut M8

Grease Fitting

Extended Bushing

Washer

Black, LH Spring Square

Black, RH Spring Square

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

Ball Bearing

Retaining Ring
