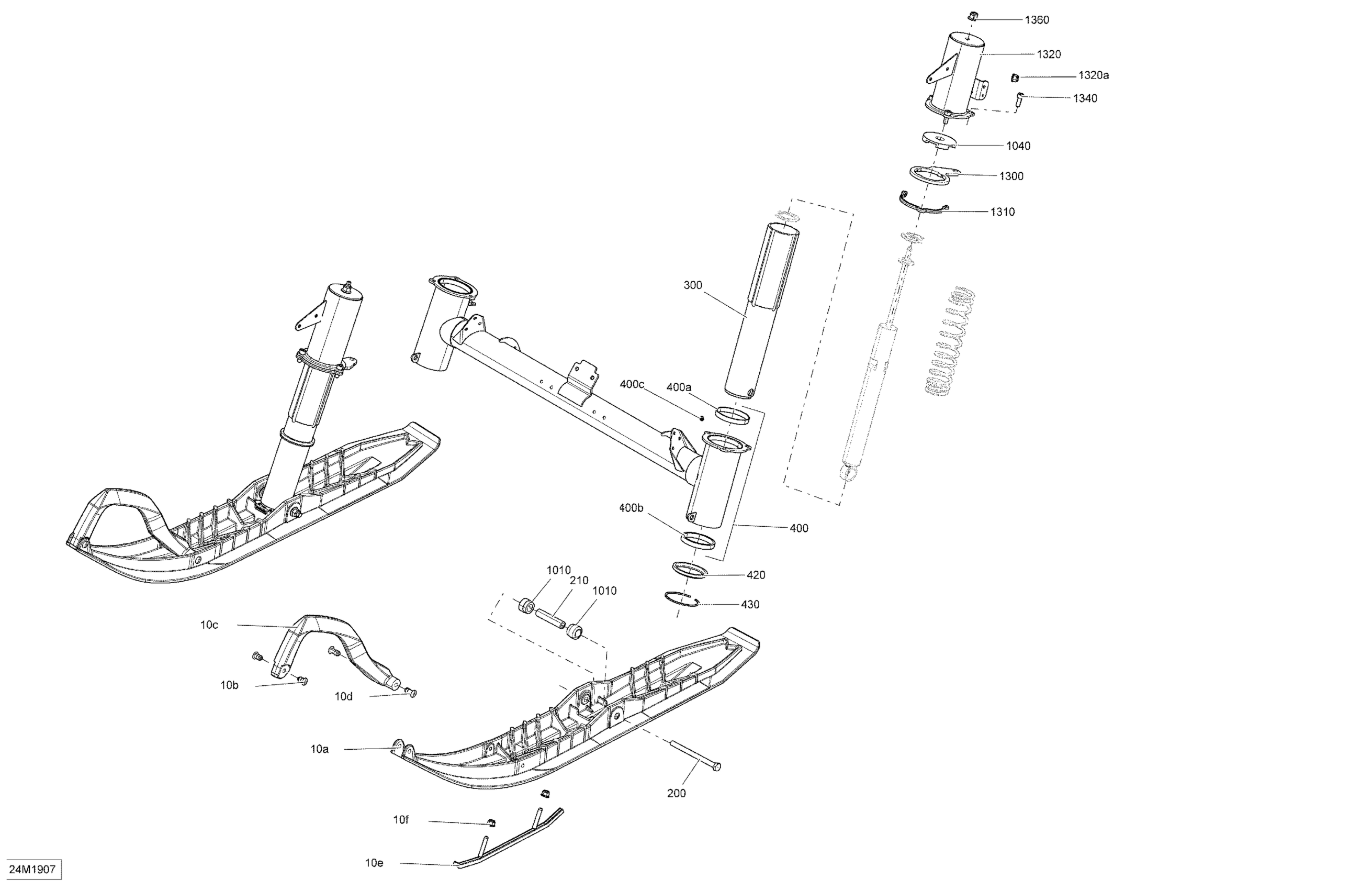

Ski-Doo Tundra 550F, 2019 Front Suspension And Ski Diagram

#

Description
Price

10a

Green, DS 2 Ski | Model MANTA GREEN

505073354

$190.99

10a

Black, Ski

505073227

$179.99

10b

Retainer 17mm long

505071812

$5.95

10c

Black, Handle

505072976

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10f

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073209

$16.49

300

Ski Leg

505073200

$309.99

400

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$529.99

400a

Upper Cushion

414803100

$10.49

400b

Lower Cushion

414803200

$14.68

400c

Grease Fitting

408200700

$3.49

420

Seal Oil

505072696

$45.99

430

Circlip

505072698

$14.99

1010

Cushion

572034500

$12.58

1040

Stopper

570025800

$14.99

1300

Steering Arm

505073823

$94.49

1310

Spacer

505073983

$25.99

1320

LH Suspension Cover | Includes 1320 to 1320a

505073449

$59.99

1320

RH Suspension Cover | Includes 1330 to 1330a

505073450

$59.99

1320a

Hexagonal Nut M6

232061404

$0.34

1340

Socket Head Screw M8 X 20

205082044

$1.15

1360

Hex. Flange Elastic Nut M10

233201414

$1.58

3000

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

3010

Washer

503192496

$0.77

3020

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

3030

Ski Stopper

505072594

$18.49

3040

Spacer

505072579

$9.69
