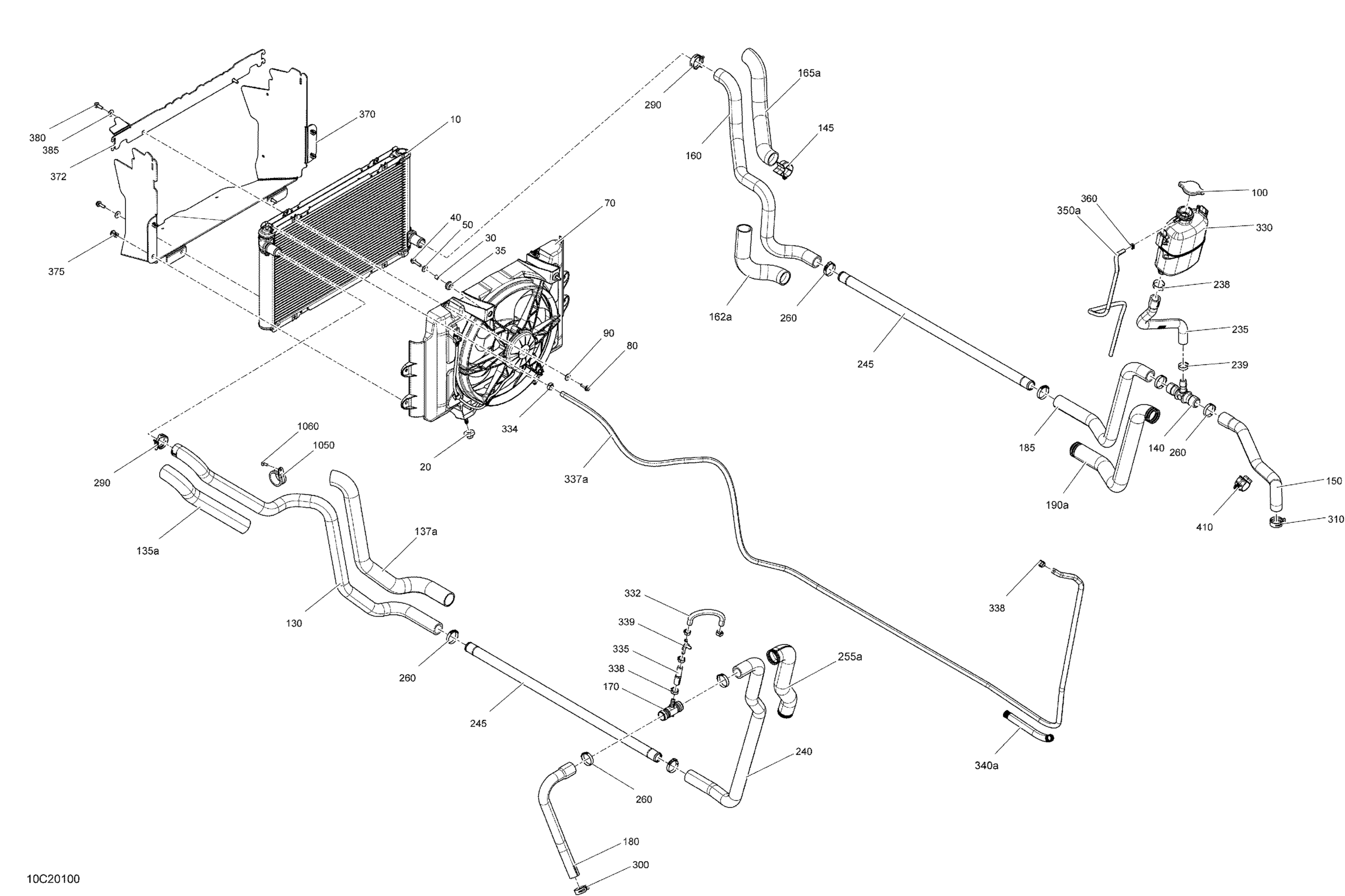

Can-Am Defender HD5 - 2020 Cooling - System Diagram

#

Description
Price

10

Radiator

709200951

$359.97

20

Grommet

709200285

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$323.05

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

130

Radiator Hose In

709200958

$59.97

135a

Tubing 35 MM 1000MM Long

219704428

$8.57

137a

Tubing 35 MM 1000MM Long

219704428

$8.57

140

T Fitting | Package Cab

509000995

$11.98

145

Retainer

275500590

$7.18

150

Pump Hose

709200815

$9.22

160

Radiator Hose Out

709200845

$36.89

162a

Tubing 35 MM 1000MM Long

219704428

$8.57

165a

Tubing 35 MM 1000MM Long

219704428

$8.57

170

T-Fitting

509000510

$11.52

180

Hose

709200812

$41.51

185

Hose

709200804

$41.51

190a

Tubing 35 MM 1000MM Long

219704428

$8.57

235

Hose

709200814

$27.66

238

Oetiker Gear Clamp

293650165

$4.32

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

240

Hose

709200805

$36.89

245

Heater Tubing

709200657

$13.49

255a

Tubing 35 MM 1000MM Long

219704428

$8.57

260

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

$4.28

300

Norma Spring Clamp

293650109

$4.00

310

Norma Spring Clamp

293650108

$4.00

330

Coolant Tank

709201323

$78.43

332

Was 415129508 Bleeder Hose

219704416

$11.83

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.43

337a

Was 415129508 Bleeder Hose

219704416

$11.83

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.83

370

Front Radiator Deflector

705013987

$50.74

372

Front Radiator Deflector

705014486

$50.74

375

Tuflok Plastic Rivet

293150230

$1.21

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

410

Retainer

275500526

$3.73

1050

Hose Retainer

293650218

$8.45

1060

Torx Screw K50 X 16

250000720

$1.39
