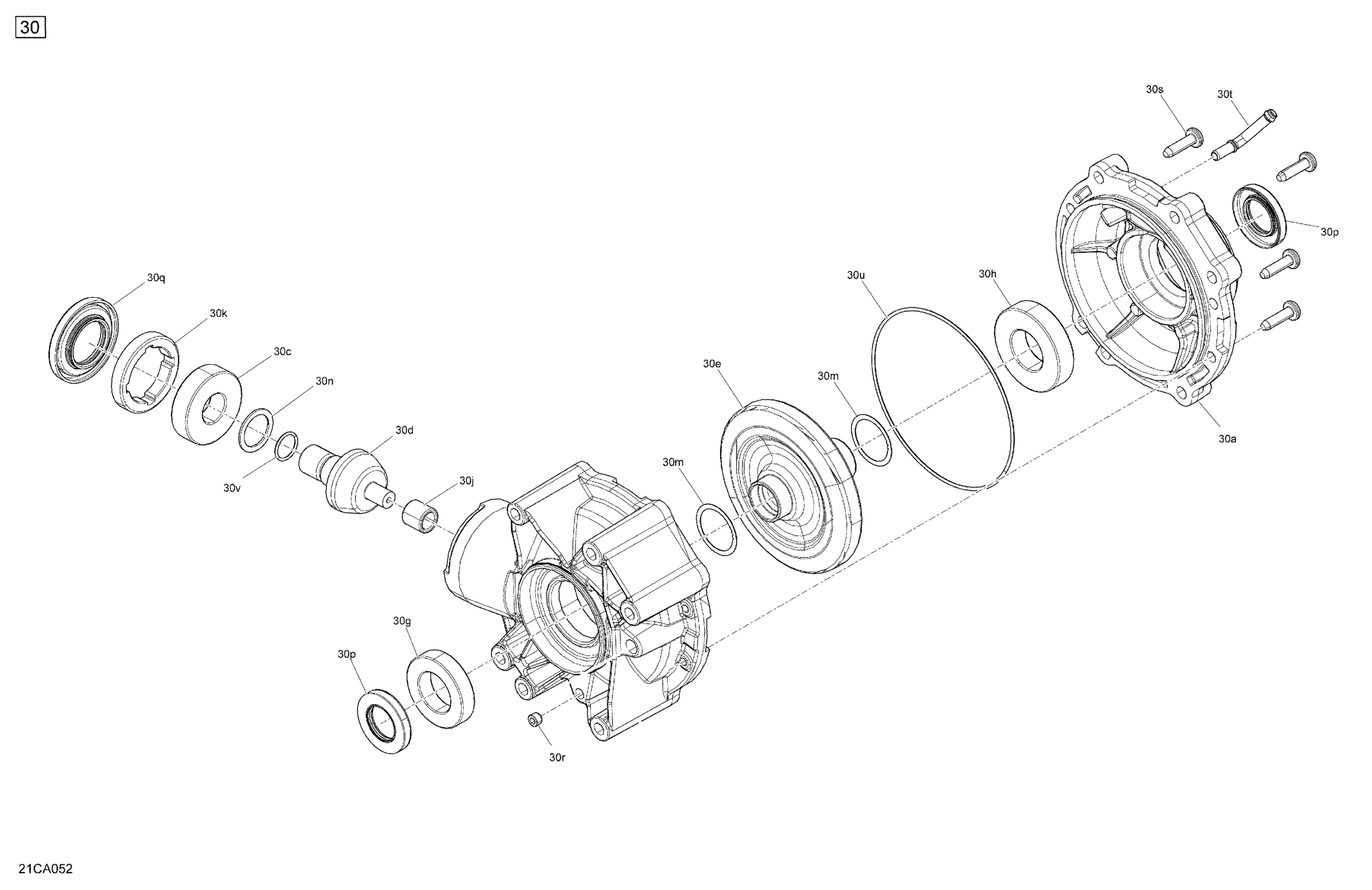

Can-Am Defender HD5 - BASE_DPS - 2021 Drive - Rear - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

30a

Rear Cover

705502734

$179.99

30b

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

30c

Flat Washer M10 | 4X4

250200014

$1.49

30d

Pinion 10 Teeth

705502053

$209.99

30e

Gear 36 Teeth

705502682

$189.99

30f

Ball Bearing

705502736

$31.99

30g

Ball Bearing

705502737

$48.49

30h

Ball Bearing

705502738

$59.49

30j

Needle Bearing

705502058

$49.99

30k

Nut

705502059

$32.99

30m

Differential Shim 0.02 mm

705502060

$13.76

30n

Pinion Gear Shim 1.67 mm

705502061

$18.99

30p

Oil Seal

705501556

$17.99

30q

Oil Seal

705502062

$23.49

30r

Plug Drain

705501724

$5.95

30s

Screw

705502063

$3.24

30t

Breather Tube

705501584

$14.99

30u

Seal

705502064

$8.47

30v

O-Ring

705502065

$5.95
