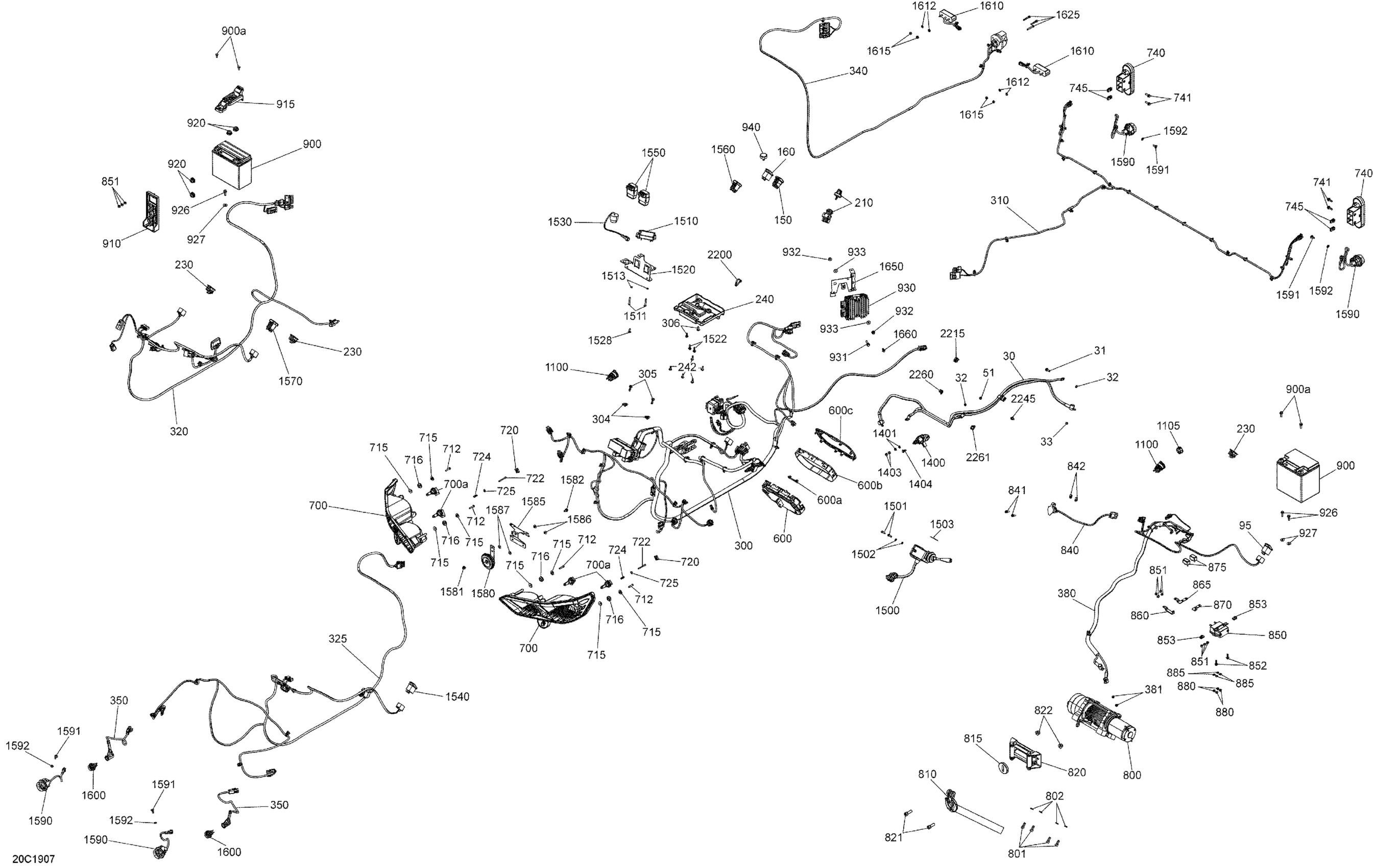

Can-Am Traxter HD5 - T1B Series, 2019 Electrical - HD5 - T1B Diagram

Negative Cable

710005331

$41.76

Hex. Flange Screw M10 X 16, Scotch Grip

207501644

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.06

Elastic Stop Nut M6

232561414

$1.78

Elastic Stop Nut M6

232561414

$1.78

Switch 2X4

710005489

$29.82

Inter Allumage *Ignition

710007870

$51.46

Key Switch Protector

710005739

$2.69

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Housing Support

710004741

$6.88

Screw PT Type K-50 X 16

250000959

$2.00

Wiring Harness Main

710006159

$827.58

DPS Connector Cap | Not Shown

710005760

$14.34

Panel Nut M6 X 1.0

250100198

$1.99

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

Rear Harness

710005544

$205.94

Wiring Harness

710006158

$205.94

Flasher Harness

710005546

$211.91

Switch's Connector

710005713

$5.90

Trailer Harness

710006034

$202.96

Position Light Harness

710005676

$12.61

Speedometer | Package CAB, Hunter and XT

710005719

$394.00

Lens | XTP

415129349

$22.36

Speedometer Button | XTP

415129355

$13.52

Gauge Ring

415129348

$11.36

LH Headlamp | Includes 700 to 700a

710008313

$190.27

RH Beam Ass'y

710005730

$190.27

Halogen Bulb H8 12V 35W

219800149

$38.03

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.25

Handle

572106600

$9.03

Hex. Screw K40 X 45

250000718

$2.00

Spring

517168600

$6.70

Flat Washer 4 mm, Stainless

234042600

$1.06

Tail Light

710004257

$85.04

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Elastic Stop Nut M6, Brass

232561200

$4.03

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Fixation Plate

710004788

$9.48

Fixation Plate

710004789

$6.72

Stopper Rubber

705014429

$6.09

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Flat Washer 6 mm

234062410

$0.73

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Flat Washer 6 mm

234062410

$0.73

Rubber Stopper

708001827

$6.19

DC Outlet

710001248

$35.79

Starter Relay

278003012

$40.27

Lock Washer Helical M6

234161601

$1.06

Hex. Nut M6

232061600

$1.04

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

Turn Signal | Europe

710001721

$187.28

Hex. Forming Screw M5 X 16

210251650

$1.06

Lock Washer 5 mm | Europe

234151401

$0.52

Flasher Decal | Europe

704902614

$16.39

MODULE - Call your local BRP dealership

710005436

Unavailable

Hex. Screw M5 X 35

207053544

$1.06

Flat Washer M5

234051410

$0.51

SKM Holder

710005475

$22.36

Hex.Flange Screw M5 X 20

207652044

$1.79

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

Buzzer Ass'y

204470913

$82.81

Switch Hazard | Europe

710002076

$17.88

Flasher Unit

710003239

$73.10

Brake Fluid Indicator

710005478

$17.88

Trailer Flasher Indicator

710005479

$17.88

Horn

710004791

$36.54

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Horn Bracket

710005495

$22.36

Pop Rivet 3/16"

293150103

$0.52

Washer M5

250200025

$0.70

Flasher | Europe

710002964

$34.30

Torx Truss Screw M6 X 16

250000721

$1.60

Flat Washer 6 mm

234061410

$1.19

Day Light | Europe

710001726

$32.81

License Light

710002055

$59.67

Lock Washer Helical M6

234161601

$1.06

Hex. Nut M6

232061600

$1.04

Phillips Screw M5 X 35

208653560

$2.12

Housing Holder

710005620

$18.63

Hex. Flange Screw M5 X 16

207651646

$2.00
