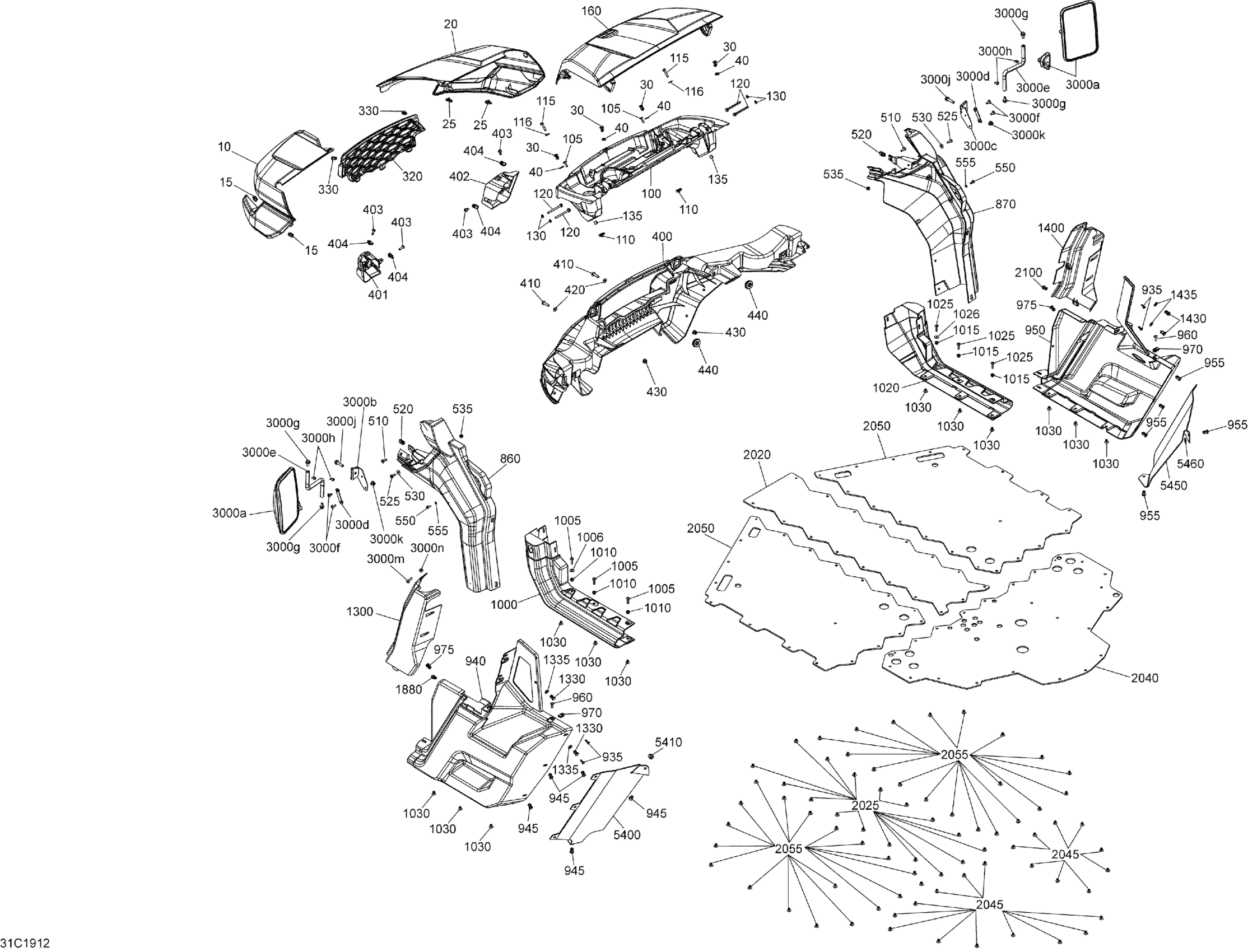

Can-Am Traxter HD5 - T1B Series, 2019 Body Squadron Green Diagram

#

Description
Price

10

Squadron Green, LH Front Fender | Green Model

705012590

$309.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Squadron Green, RH Front Fender | Green Model

705012591

$309.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Service Center

705011391

$64.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Squadron Green, Removable Hood | Green Model

705012592

$144.99

320

Grid Front Fascia

705009364

$28.99

330

Tuflok Plastic Rivet

293150230

$1.47

400

Front Facia

705011576

$229.99

401

LH Flasher Cap

705012285

$14.49

402

RH Flasher Cap

705012286

$14.49

403

Torx Screw M6 X 20

250000722

$1.68

404

Panel Nut M6 X 1.0

250100198

$2.11

410

Torx Screw M8 X 30

250000886

$2.11

420

Washer

503192494

$3.17

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

941

Black, Nylon Cap

414916600

$4.69

945

Tuflok Plastic Rivet

293150230

$1.47

950

RH Rear Side Panel

705012705

$114.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

975

Tuflok Plastic Rivet

293150230

$1.47

1000

Deep Black, LH Central Panel

705019037

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1880

Tuflok Plastic Rivet

293150230

$1.47

2020

Central Skid Plate

705009151

$62.49

2025

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2040

Rear Skid Plate

705011292

$88.99

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2100

Tuflok Plastic Rivet

293150230

$1.47

3000a

Mirror

705011497

$80.49

3000b

LH Mirror Support

705012151

$28.99

3000c

RH Mirror Support

705012152

$28.99

3000d

Plate

705010469

$16.37

3000e

Mirror Rod

705012671

$33.99

3000f

Torx Truss Screw M6 X 16

250000348

$2.11

3000g

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

3000h

Snap Ring

293370131

$1.35

3000j

Hex. Flange Screw M8 X 35

207683544

$1.69

3000k

Hex. Flange Elastic Nut M8

233281414

$1.47

3000m

Torx Screw M6 X 25

250000758

$2.11

3000n

Hex. Flange Elastic Nut M6

233261494

$1.58

3000p

Flat Washer

250200178

$2.11

5400

LH Rear Deflector

705010426

$53.99

5410

Flat Washer 8 mm, Nylon

292001663

$1.47

5450

RH Rear Deflector

705010427

$53.99

5460

Flat Washer 8 mm, Nylon

292001663

$1.47

6060

Torx Truss Screw M6 X 25

250000807

$2.11

6065

Torx Truss Screw M6 X 25

250000807

$2.11

6070

Torx Truss Screw M6 X 25

250000807

$2.11

6075

Stainless Steel Flat Washer

234062670

$2.11

6080

Torx Truss Screw M6 X 25

250000807

$2.11

6085

Stainless Steel Flat Washer

234062670

$2.11
