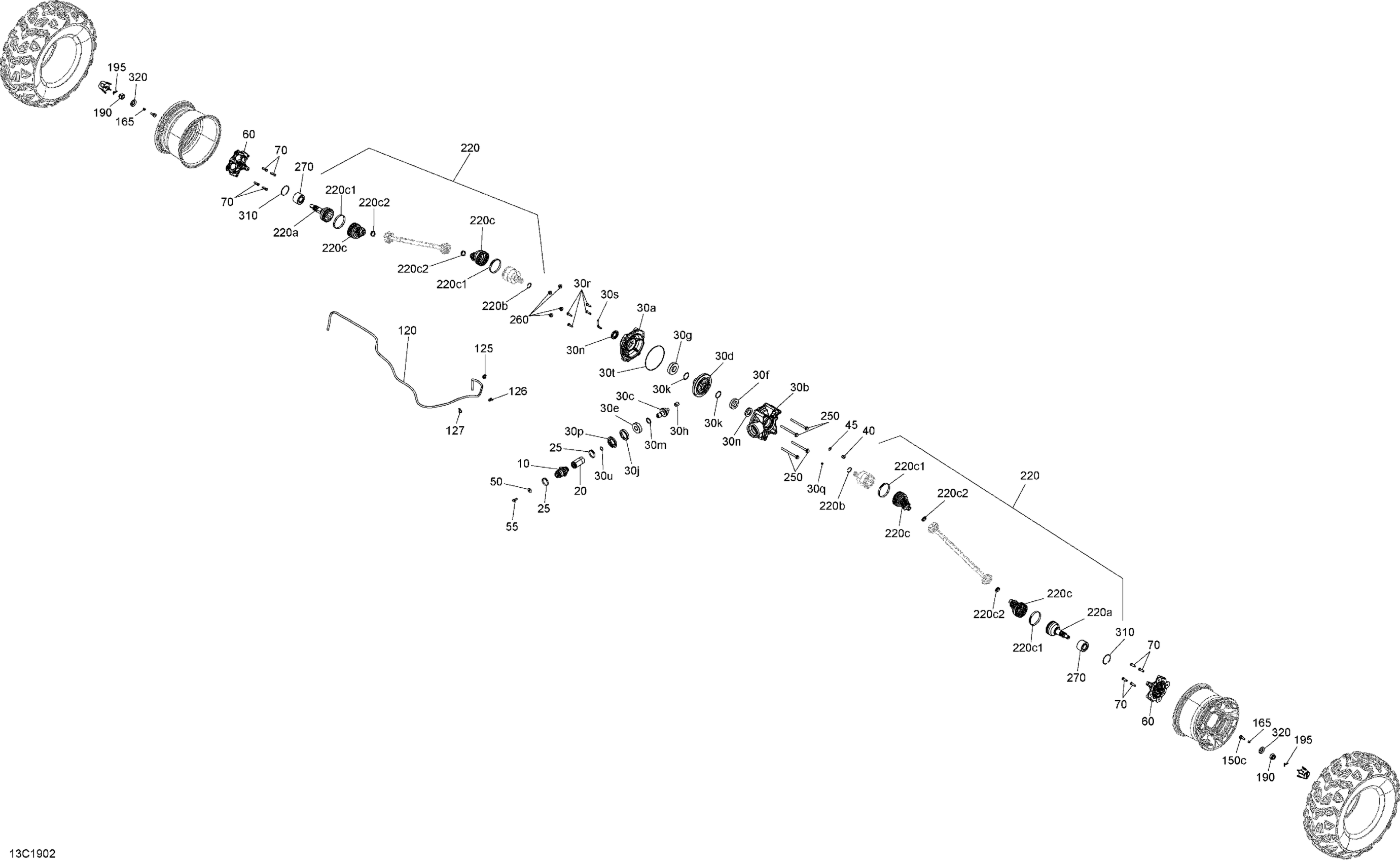

Can-Am Traxter HD5 - T1B Series, 2019 Rear Drive - HD5 Diagram

#

Description
Price

10

Drive Axle Ass'y

705401950

$166.39

20

Coupling Sleeve

705401969

$26.09

25

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

30

Final Drive Unit | Includes 30 to 30u

703501019

$864.15

30c

Pinion 10 Teeth

705502053

$186.54

30d

Gear 36 Teeth

705502682

$167.13

30e

Ball Bearing

705502737

$44.75

30f

Ball Bearing

705502738

$55.19

30h

Needle Bearing

705502058

$46.24

30j

Nut

705502059

$30.57

30k

Differential Shim 0.02 mm

705502060

$12.64

30m

Pinion Gear Shim 1.67 mm

705502061

$15.64

30n

Oil Seal

705501556

$16.39

30p

Oil Seal

705502062

$21.61

30q

Plug Drain

705501724

$5.94

30r

Screw

705502063

$2.51

30s

Breather Tube

705501584

$13.45

30t

Seal

705502064

$8.06

30u

O-Ring

705502065

$5.94

30v

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

30w

Flat Washer M10 | 4X4

250200014

$1.34

40

Fill Level Plug | 4X4

705500504

$8.73

45

Copper Washer | 4X4

705500506

$0.42

50

Flat Washer M10 | 4X4

250200014

$1.34

55

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.15

60

Wheel Hub

705502338

$108.18

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

120

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

125

Clip Tie-Rap

293750063

$7.51

126

Dart Tie Rap 200MM

710003168

$6.57

127

Tie-Rap 180 mm

414115200

$0.10

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

220

LH Rear - Premium CV Axle | 1

705502478

$226.84

220

RH Rear - Premium CV Axle | Includes 220 to 220c2

705502479

$226.84

220a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

220b

Circlip

705501781

$5.10

220c

Boot Kit

705501864

$39.52

220c1

Oetiker Clamp, 82.1 mm

715900241

$9.00

220c2

Oetiker Clamp, 27.3 mm

715900242

$9.00

220d

Plunging Joint

715900485

Unavailable

250

Hex. Flange Screw M10 X 125

230602546

$6.99

260

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63
