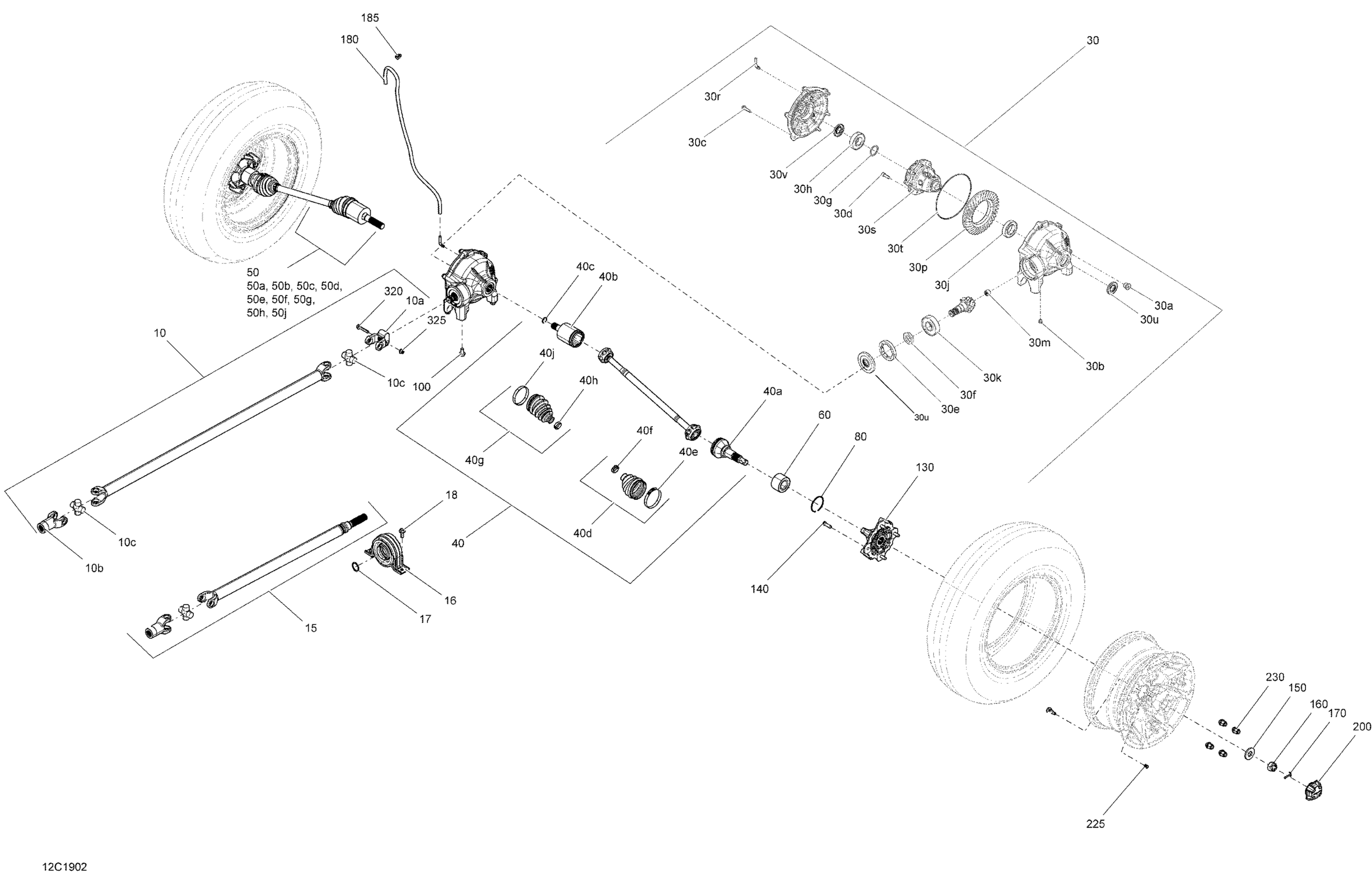

Can-Am 001 - Traxter HD5 - T1B Series, 2019 07- Front Drive - HD5 Diagram

#

Description
Price

10

Drive Axle Ass'y

705402126

$179.99

10a

Fixed Yoke

715900400

$59.49

10b

Yoke

715900401

$35.99

10c

J-Joint Cross Kit

715900402

$89.99

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

30

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,674.49

30

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30a

Fill Level Plug

705501889

$20.49

30b

Drain Plug | After May 30, 2014

705501885

$14.22

30c

Bolt

705501886

$7.69

30d

Screw

705402375

$6.35

30e

Nut M75 X 1.5

705401819

$23.99

30f

Nut M27 X 1.5

705401820

$20.99

30g

Shim | 4X4

705401604

$57.99

30h

Ball Bearing

705402847

$49.99

30j

Ball Bearing | 4X4

705401606

$51.99

30k

Ball Bearing

705401821

$31.99

30m

Ball Bearing | After May 30, 2014

705402848

$49.99

30n

Front Cover

705401667

$153.49

30p

Ring Gear 36 Teeth

705402788

$379.99

30q

Pinion 10 th.

705401933

$194.99

30r

Vent Valve

705401935

$16.49

30s

Differential | Base Package

705402377

$1,052.99

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

30u

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30v

Oil Seal

705401836

$7.51

30w

Ball Bearing

705402847

$49.99

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

40b

RH Plunging Joint

715900441

$275.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40e

Oetiker Clamp

715900282

$5.29

40f

Oetiker Clamp, Small

715900283

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

40h

Oetiker Clamp, Small

715900261

$5.29

40j

Oetiker Clamp, Large

715900262

$10.33

50

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

50b

LH Plunging Joint

715900442

$275.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50e

Oetiker Clamp

715900282

$5.29

50f

Oetiker Clamp, Small

715900283

$5.29

50g

Boot Kit, Différential Side

705401355

$42.49

50h

Oetiker Clamp, Small

715900261

$5.29

50j

Oetiker Clamp, Large

715900262

$10.33

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.11

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Clip

414227300

$1.67

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
