Partiron

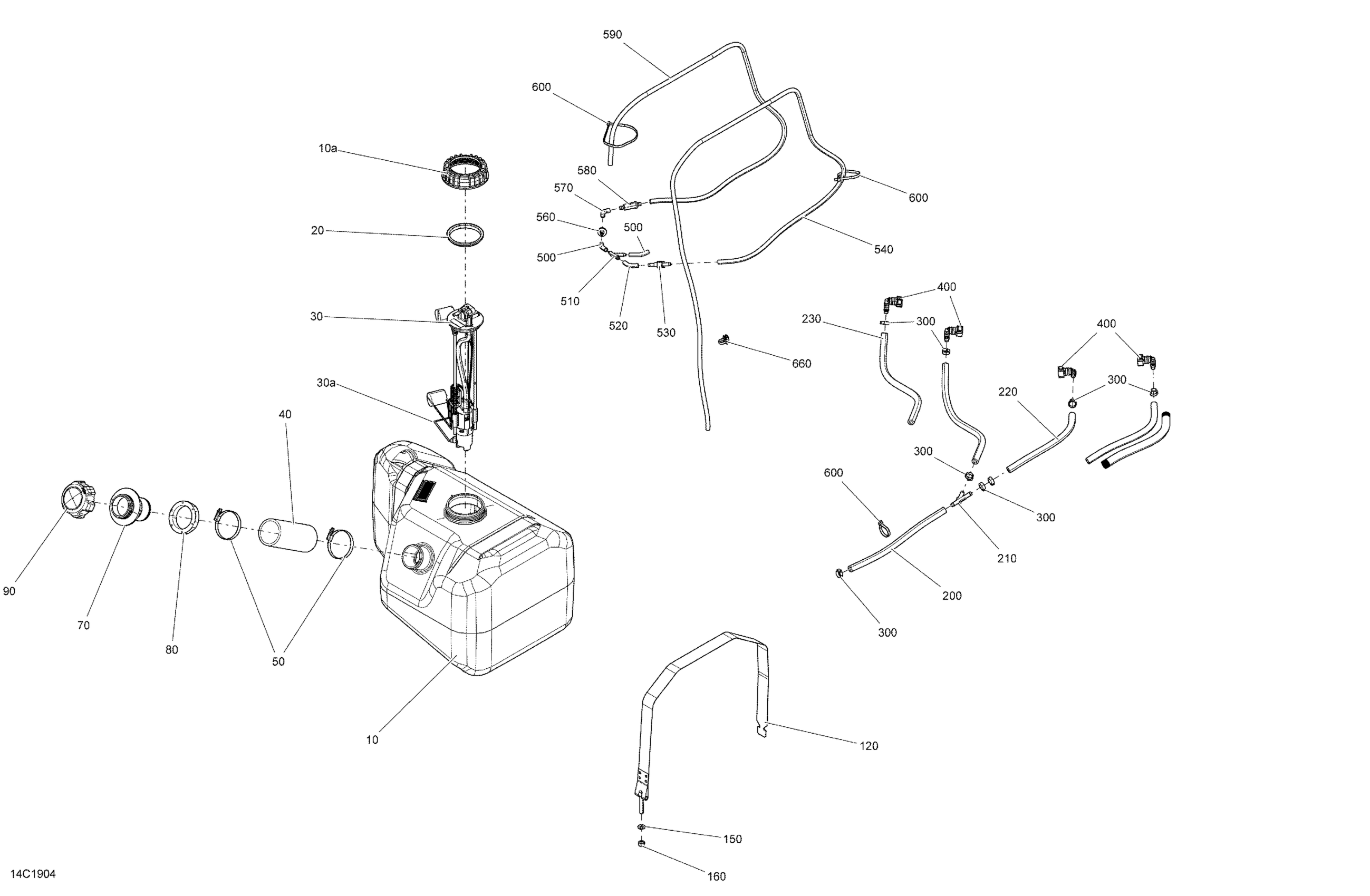

Can-Am Traxter HD5 - T1B Series, 2019 Fuel Diagram

#

Description
Price

10

Fuel Tank

709000591

$271.61

10a

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

40

Hose Filler Neck

709000595

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

120

Fuel Tank Strap

709000521

$38.03

140

Fuel Tank Strap

709000648

$38.03

150

Flat Washer 8 mm

234081410

$0.79

160

Hex. Elastic Nut M8 Brass

232581200

$1.48

200

Was 709000163 Fuel Line

219704440

$25.34

220

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Attach 90°

275500700

$14.48

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

510

Y-Fitting

293710059

$9.40

530

Check Valve

513033469

$29.07

540

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

565

Check Valve

275500398

$9.84

580

Filter

709000330

$7.48

600

Tie Wrap 142 mm

293750002

$1.01

600

Tie Wrap 368 mm

293750008

$0.97

600

Tie-Rap 180 mm

414115200

$0.10
