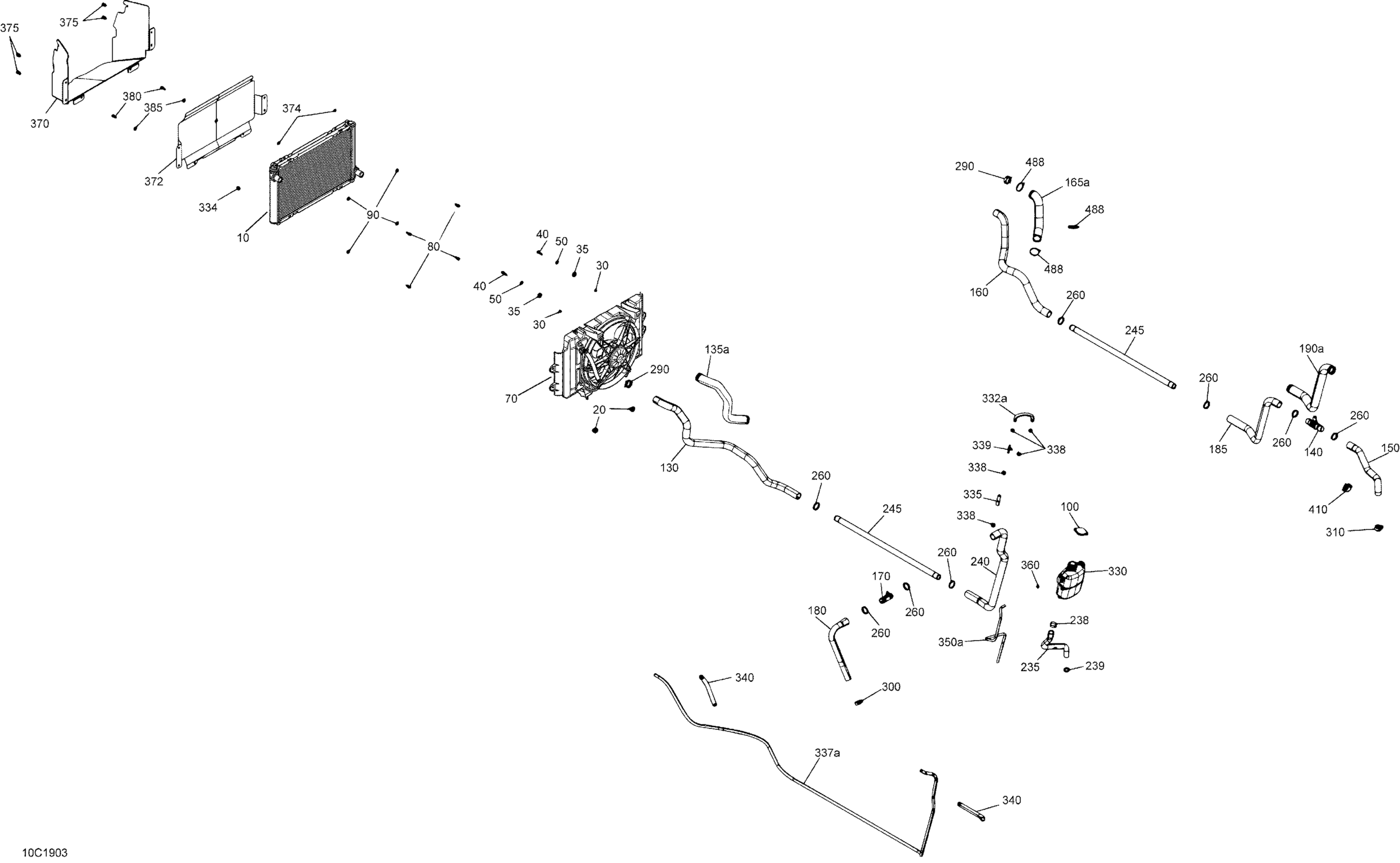

Can-Am Traxter HD5 - T1B Series, 2019 Cooling - HD5 Diagram

#

Description
Price

10

Radiator

709200951

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

130

Radiator Inlet Hose

709200537

$67.99

135a

Tubing 35 MM 1000MM Long

219704428

$10.99

140

T Fitting | Package Cab

509000995

$12.99

150

Pump Hose

709200653

$10.99

160

Hose_Thermostat Out | Except Package Cab

709200914

$35.99

165a

Tubing 35 MM 1000MM Long

219704428

$10.99

170

T-Fitting

509000510

$13.16

180

Hose

709200652

$40.99

185

Hose

709200659

$42.49

190a

Tubing 35 MM 1000MM Long

219704428

$10.99

235

Hose

709200654

$31.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Hose

709200656

$35.99

245

Heater Tubing

709200657

$19.49

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

300

Norma Spring Clamp

293650109

$4.12

310

Norma Spring Clamp

293650108

$4.12

330

Coolant Tank

709201323

$80.99

332a

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Gear Clamp

293650025

$3.09

335

Bleeding Hose

709200606

$20.99

337a

Was 415129508 Bleeder Hose

219704416

$12.18

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

370

Deflector

705012573

$58.49

372

Protective Grille This part replaces 708200609.

708201442

$124.99

374

Clip | Europe Models

517306751

$2.09

375

Tuflok Plastic Rivet

293150230

$1.47

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

410

Retainer

275500526

$4.55
