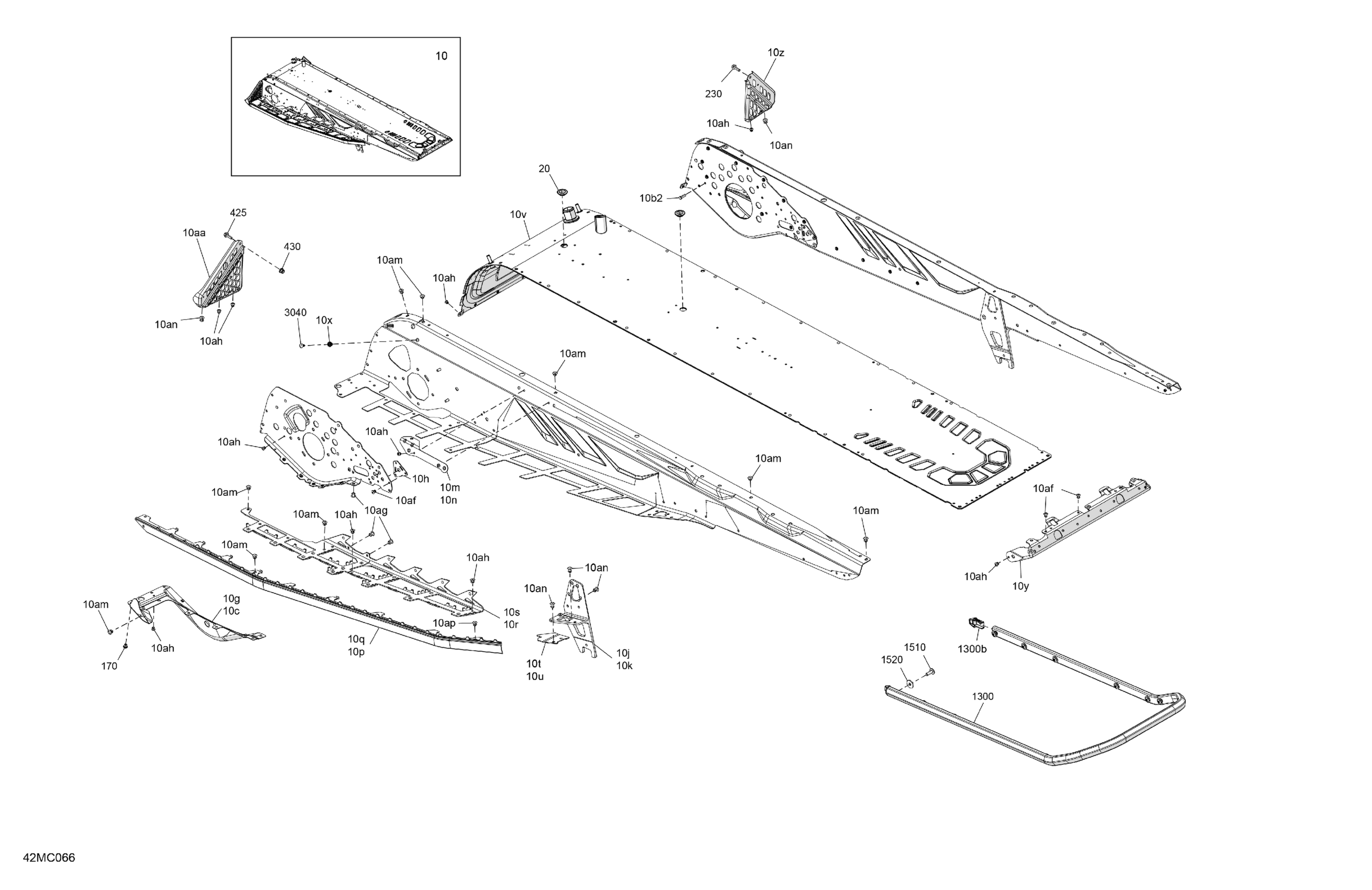

Ski-Doo 001 - SUMMIT 850 E-TEC - SP - Package 146" - Europe, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10ap

518334321

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

RH Footrest Reinforcement

518332455

$88.99

10g

LH Footrest Reinforcement

518332456

$88.99

10h

Front Arm Reinforcement

518333257

$2.89

10j

LH Rear Suspension Support

518332875

$94.99

10k

RH Rear Suspension Support

518332876

$45.99

10m

LH Under Chassis Reinforcement

518331744

$18.99

10n

RH Under Chassis Reinforcement

518331745

$19.99

10p

Formed Boarding Step Rg

518332841

$194.99

10q

Formed Boarding Step

518332842

$194.99

10r

RH Tunnel Liner

518332854

$65.99

10s

LH Tunnel Liner

518332855

$65.99

10t

LH Rear Footrest Reinforcement

518333048

$19.99

10u

RH Rear Footrest Reinforcement

518333049

$19.99

10v

Radiator Tunnel 154 Ass'y

518334492

$739.99

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10y

Rear Cap

518328990

$22.49

10z

RH Footrest

518332462

$44.99

10aa

LH Footrest

518332463

$44.99

10af

Avex Rivet

390909100

$0.30

10ag

Rivet

293150183

$2.11

10ah

Avex Rivet

390909200

$0.30

10ak

Hemlock Rivet, 6.5 mm

293150096

$3.27

10am

Hemlock Rivet, 6.5 mm

293150119

$4.29

10an

Hemlock Rivet, 6.4 mm

293150174

$7.86

10ap

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3040

Dart

293730079

$2.09
