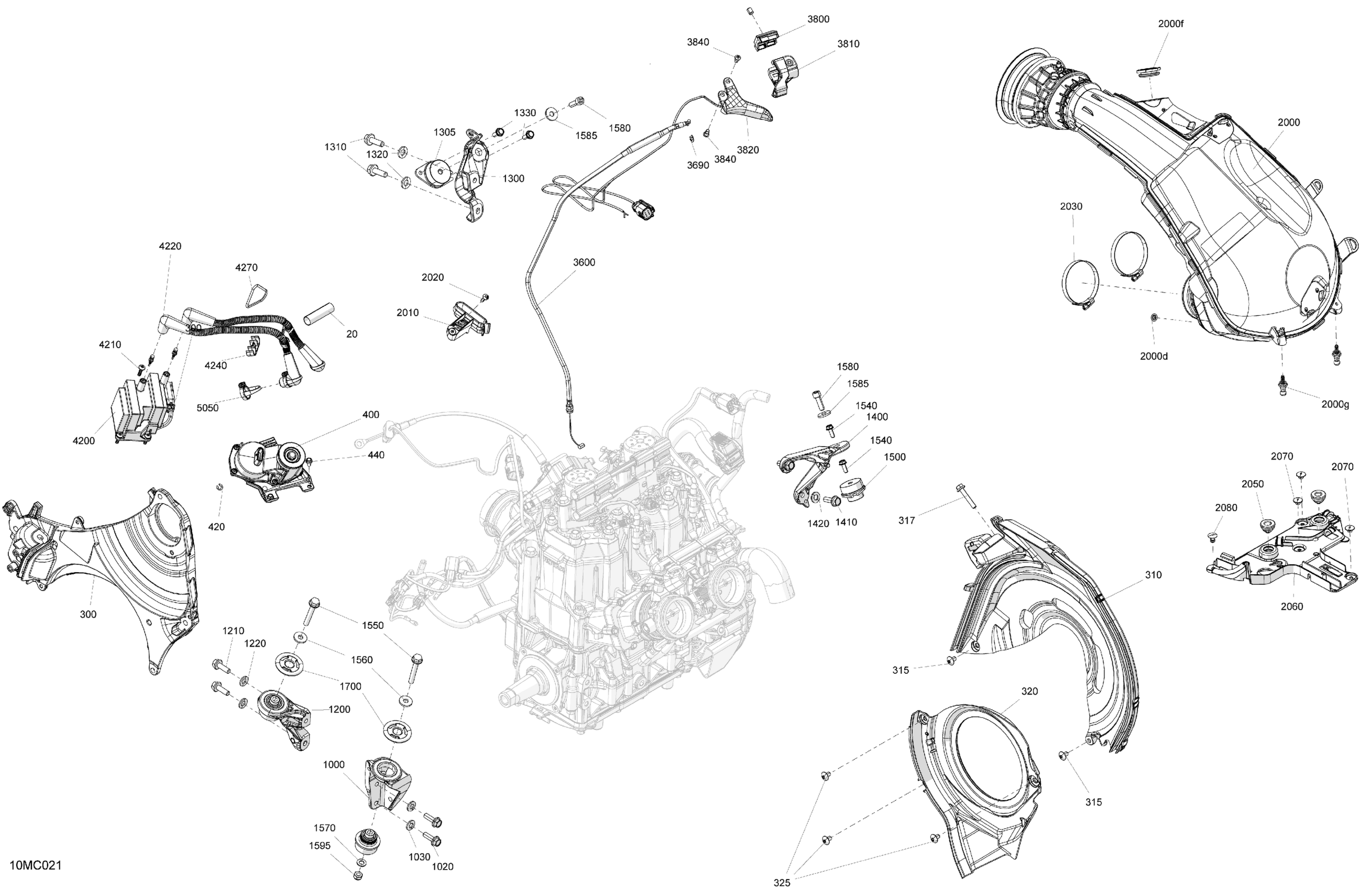

Ski-Doo 001 - SUMMIT 850 E-TEC - SP - Package 146" - Europe, 2023 02- Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.39

300

LH Side Member

512061447

$154.99

310

Upper CVT Cooling Duct

512061449

$14.49

315

Torx-truss M/s M6 X 10

250000995

$4.44

317

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

320

Lower CVT Cooling Duct

512061450

$14.49

325

Torx-truss M/s M6 X 10

250000995

$4.44

400

Not Available As Spare Parts

XXX

Unavailable

400a

Mounting Bracket

420912007

$20.99

400b

Servo Motor Ass'y

420889432

$329.99

400c

Hex. Flange Screw M6 X 12

420440149

$2.11

420

Circlip

293370122

$4.29

440

Hex. Flange Screw M5 X 10

207551044

$4.12

1000

LH Rear Engine Support Ass'y

512061634

$81.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

LH Front Engine Support Ass'y | Includes 1200 to 1200a

512061418

$78.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1300

RH Front Engine Support

512061439

$27.99

1305

Vibration Damper

512061454

$59.49

1310

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1320

Conical Spring Washer M8

250200146

$1.01

1330

Hex. Flange Screw M6 X 16

250001062

$1.57

1400

RH Rear Engine Support Ass'y

512061411

$20.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Vibration Damper

512061454

$59.49

1540

Hex. Flange Screw M6 X 16

250001062

$1.57

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1580

Socket Head Screw M8 X 25

205082544

$1.15

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061530

$21.99

2000

Primary Chamber Ass'y | Includes 2000 to 2000g

508001159

$184.99

2000d

Push Nut

732610072

$2.19

2000f

Rubber

512061083

$8.89

2000g

Screw

420441840

$2.11

2010

Cable Guide

512061325

$0.99

2020

Torx-Truss Pt K40 X 16

250000759

$2.11

2030

GEMI Clamp

293650212

$7.65

2050

Rubber Cap

420201630

$4.44

2060

Airbox Support

512061274

$12.49

2070

Pop Rivet 3/16"

293150103

$0.55

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600

Throttle Cable

512061224

$17.99

3690

Circlip

414274500

$0.90

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Heated Hand Lever Accelerator

512061544

$124.99

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061168

$132.49

4210

Torx Screw Truss Head K50X20 T20

250000760

$2.11

4220

Ignition Cable

512061166

$27.49

4240

Spark Plug Wire Holder

512061238

$4.44

4270

O-Ring

293300059

$7.51

5050

Clamp

512060993

$5.39
