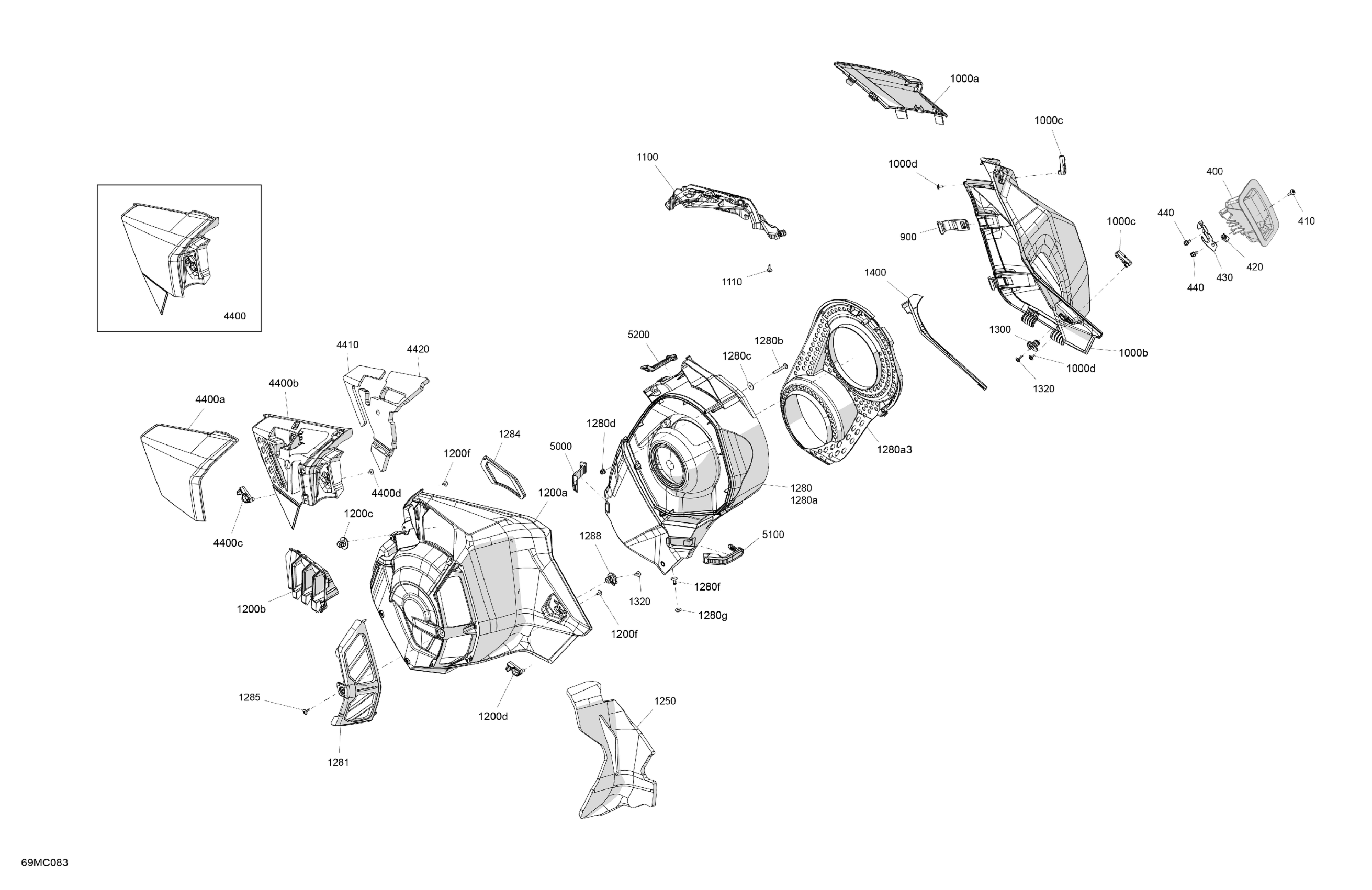

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 154" - Asia, 2023 Body - Side Panels Diagram

Description

Price

400

RH Console

517306759

$35.99

410

Torx Truss M5 X 20

250000586

$4.44

420

Panel Nut M5 X 0.8

250000958

$4.23

430

Rope Guide

517306315

$5.72

440

Hex. Flange Screw M6 X 12

210261250

$1.90

900

Front Soft Latch

517308267

$14.49

1000a

Timeless Black, RH Front Panel

517308502

$199.99

1000b

RH Rear Panel

517308535

$214.99

1000c

RH Latch

517308587

$17.99

1000d

Screw M4 X 16

250000725

$3.49

1100

RH Hood Grille

517308132

$29.99

1110

Screw M4 X 16

250000725

$3.49

1200a

Deep Black, LH Rear Panel

517307954

$54.99

1200b

Deep Black, LH Panel Grille

517308519

$14.99

1200c

Rear Stud

517305985

$15.36

1200d

LH Latch

517308586

$17.99

1200f

Plastite Screw M4 X 10

250000805

$2.11

1250

Bonded Foam

517308747

$14.49

1280

CVT Cover Ass'y | Includes 1280 to 1280f

517309062

$144.99

1280a

Not Available As Spare Parts

XXX

Unavailable

1280a3

Int CVT Cover

417300604

$27.99

1280b

Torx Screw M6 X 35

250000541

$2.11

1280c

Flat Washer

250200040

$1.90

1280d

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1280f

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1280g

Washer

250200140

$1.01

1281

Filter Grille

517309318

$17.49

1284

Filter Grille

517308716

$17.49

1285

Screw M4 X 16

250000889

$3.09

1288

Lug Angle Short

517308123

$15.49

1300

Rear Stud

517305985

$15.36

1320

Screw M4 X 16

250000725

$3.49

1400

Molded Gasket

517308556

$5.49

4400

LH Front Panel Ass'y | Includes 4400 to 4400d

517308491

$199.99

4400a

LH Front Panel Ass'y | Includes 4400 to 4400d

517308491

$199.99

4400b

LH Lower Panel - Call your local BRP dealership

517308259

$149.99

4400c

LH Latch

517308586

$17.99

4400d

Plastite Screw M4 X 10

250000805

$2.11

4410

Bonded Foam

517308715

$7.89

4420

Bonded Foam

517308763

$14.49

5000

LH Lower Soft Latch

517308518

$3.99

5100

Rear Latch Soft

517308463

$3.99

5200

LH Upper Latch Soft

517308516

$3.99
