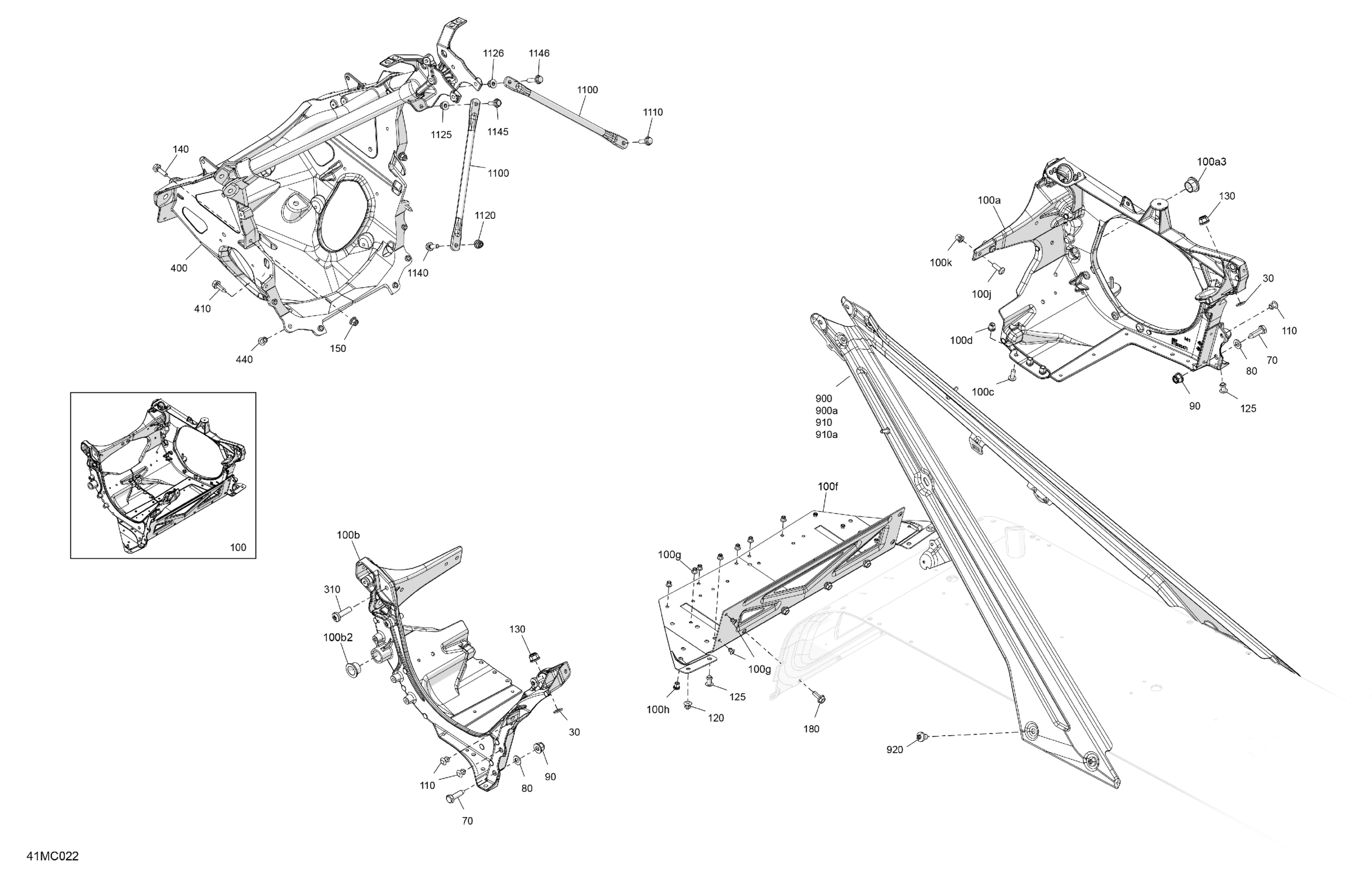

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 154" - Asia, 2023 Frame - System - Front Section Diagram

Flat Washer 8 mm

234081410

$0.83

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100k

518335197

$429.99

RH Member Ass'y | Includes 100a to 100a3

518332469

$229.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332716

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 18.5

293150268

$2.40

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661646

$1.36

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

LH Rear Diagonal Cross Member

518333356

$119.99

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

RH Rear Diagonal Cross Member

518332559

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44
