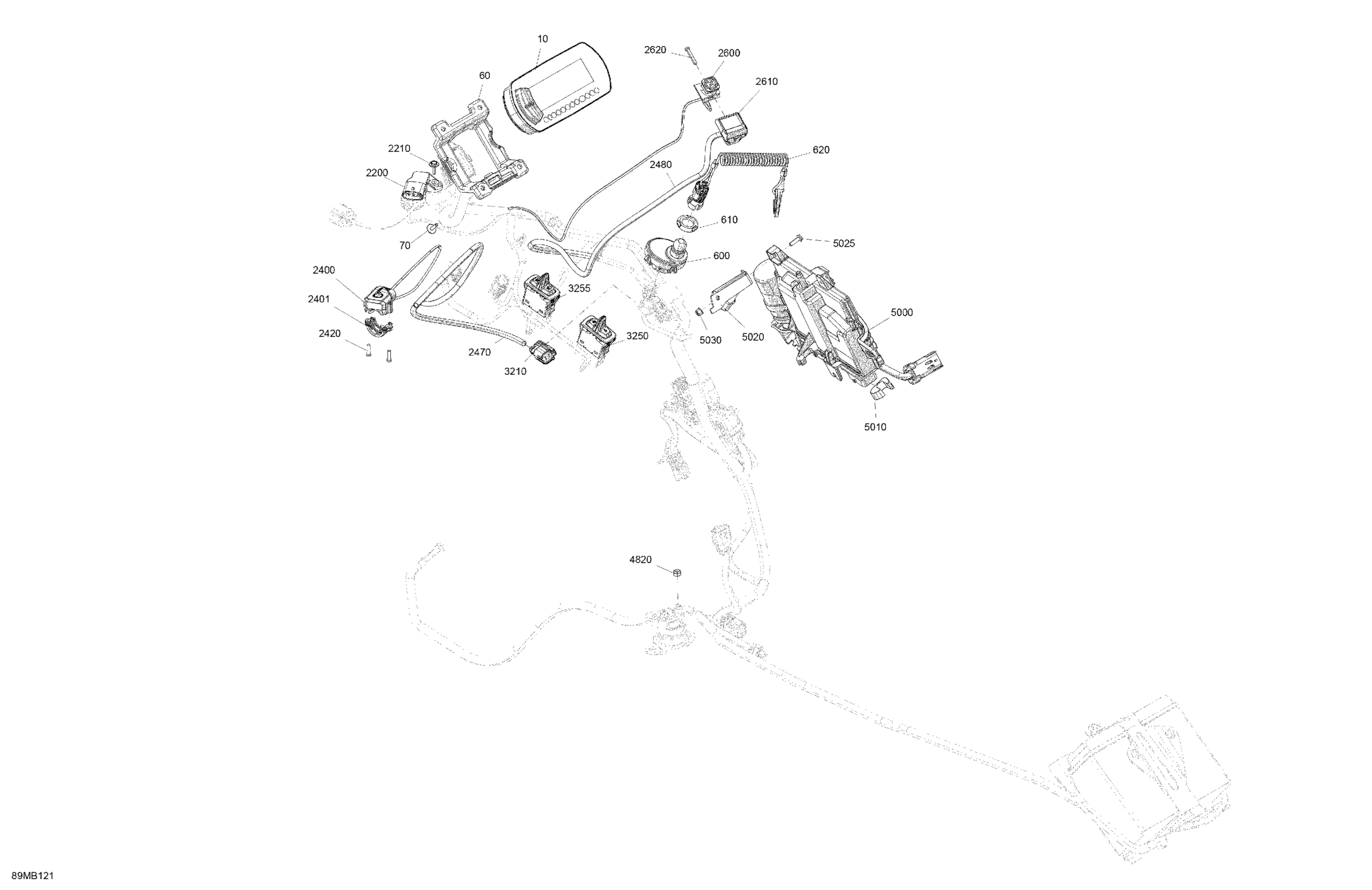

Ski-Doo SUMMIT 600R E-TEC - SP - Package 146" 2022 Electric - Upper Section - Shot Starter Diagram

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

Housing

515178450

$5.06

Screw M4 X 16

250000725

$3.30

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Safety Nut (DESS Switch)

278002963

$3.12

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

Pressure And Temperature Sensor

707000995

$81.31

Screw M4 X 16

250000725

$3.30

Ignition Switch

515178857

$66.39

Clamp

515177952

$8.31

Torx Screw

250000671

$0.96

Braided Sleeve

415130141

$54.45

Braided Sleeve

415130141

$54.45

Emergency Stop Switch

515177931

$72.36

Emergency Stop Switch Support

515177310

$8.34

Torx Screw #8-18

250000263

$0.99

4 Circuits Female Housing

515178177

$11.54

Switch Rocker Hand Warmer

515178462

$18.63

Switch Rocker Headlignt

515178463

$18.63

Elastic Stop Nut M6

232561434

$1.78

Engine Control Module | Includes 5000 to 5000a

512061479

$571.61

Rubber Stopper

515178430

$2.03

Module Support

515178159

$4.15

Hex. Flange Screw, Scotch Grip

207551634

$1.91

Flange Elastic Nut M5

233251434

$1.91
