Description

Price

10aa

Fixed Flange Ass'y

417224333

$209.99

10ab

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224811

$349.99

10abb

Bushing

293250389

$21.99

10abc

Circlip

293370137

$3.28

10abd

Back Torque Roller

417224153

$16.99

10abf

Torque Roller

417224154

$26.99

10abg

Pin

417224510

$9.95

10abh

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10ac

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10acb

Stopper Spring

417224910

$10.16

10acc

Spring Guide

417224614

$10.49

10acd

Roller Pulley Ass'y

417224947

$35.99

10ace

Axle - 10mm

417224204

$10.49

10acf

Thrust Washer

417224868

$2.32

10acg

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224168

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10ea

Ramp Pulley 997

417224430

$31.99

10ec

RH Lever

417224086

$9.10

10ed

LH Lever

417224114

$5.61

10ee

Pivot 33mm

417224221

$5.79

10eb

Molded Cam

417224113

$8.89

10f

Pin Ramp

417224694

$10.49

10g

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10h

VIbration Damper

417224682

$149.99

10j

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127595

$539.99

100ac

Pulley Roller

417127016

$24.49

100ad

Pivot Stud

417127294

$14.49

100ae

Lock Washer 8 mm

250200009

$2.11

100af

Spring Pin

250400070

$2.00

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100bb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100bc

Circlip

293370049

$4.99

100c

Cam Ass'y

417127715

$164.99

100d

Blue Spring

417127118

$44.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

250000981

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300561

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Duct Cooling

417300569

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

500

Rear Guard Support

417300592

$16.49

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11

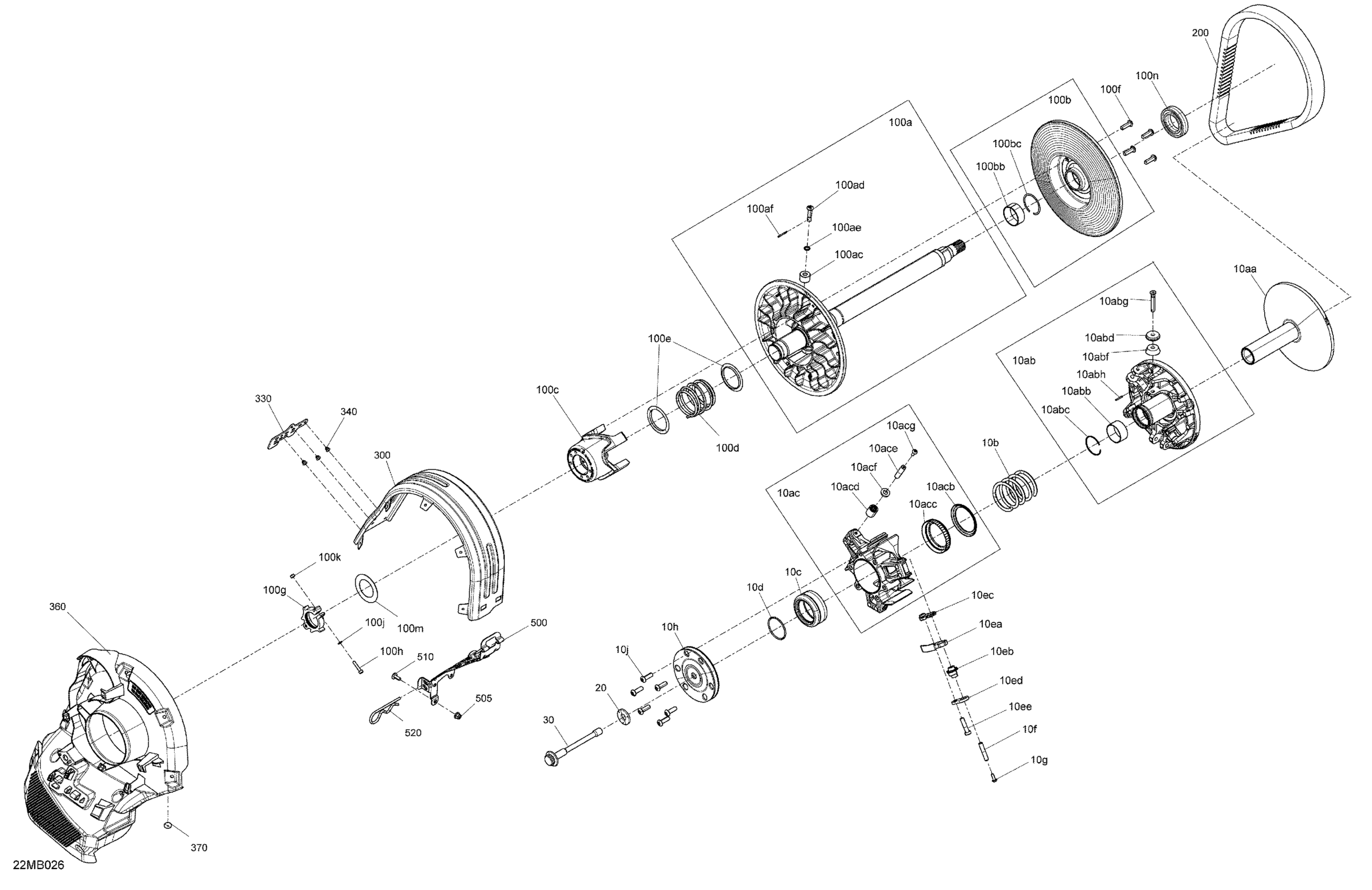

Ski-Doo 001 - SUMMIT 600R E-TEC - SP - Package 146" North America, 2022 04- Drive - Pulley Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

Bushing

Circlip

Back Torque Roller

Torque Roller

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Stopper Spring

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp Pulley 997

RH Lever

LH Lever

Pivot 33mm

Molded Cam

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Fixed Flange Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y

Blue Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Duct Cooling

Pop Rivet 3/16"

Rear Guard Support

Hex. Flange Elastic Nut M6

Torx Screw M6 X 16

Hair Pin
