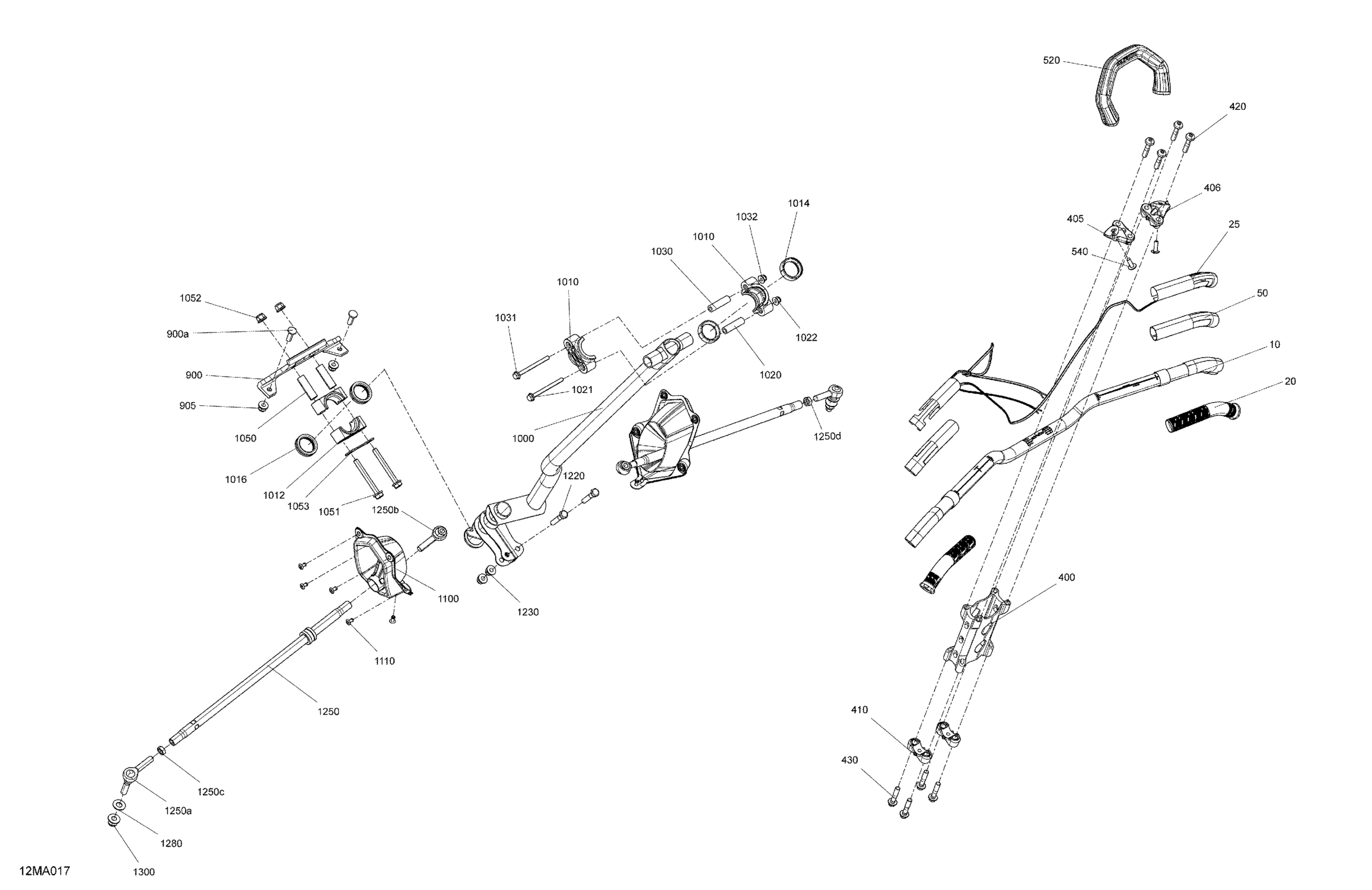

Ski-Doo SUMMIT 600R E-TEC - SP - 2021 Mechanic - Steering Diagram

#

Description
Price

10

Handle Bar | Includes 10 to 10

506153118

$94.58

20

Grip 148 mm

506153134

$23.05

25

Heated Film

506153135

$36.89

50

Thermal Insulation

506153177

$5.62

400

Riser Kit

860201632

$86.99

405

LH Handle Bar Support

506152867

$12.86

406

RH Handle Bar Support

506152928

$12.48

410

Steering Support

506152894

$12.48

420

Button Head Torx Screw M8 X 38

250000904

$1.74

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$1.74

520

Moulding Strap Ass'y

506153133

$49.20

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

900

Support Plate | Includes 900 to 900a

506152787

$35.35

900a

Clinch Stud

250300038

$4.00

905

Hex. Elastic Flange Nut M8

233281416

$1.25

1000

Main Tube

506153022

$253.82

1010

Upper Half Housing

506152219

$1.68

1012

Lower Half Housing

506153048

$5.57

1014

Upper Vibration Ring

506152292

$0.72

1016

Lower Vibration Ring

506152518

$4.52

1020

Housing Bushing

506152297

$10.23

1021

Hex. Flange Screw M6 x 75

250001114

$3.61

1022

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1030

Housing Bushing

506152297

$10.23

1031

Hex. Flange Screw M6 x 75

250001114

$3.61

1032

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1050

Housing Bushing

506152937

$10.23

1051

Hex. Flange Screw M8 X 70

207687044

$6.11

1052

Hex. Elastic Flange Nut M8

233281416

$1.25

1053

Stopper Plate

506152938

$10.23

1100

Cap

506153294

$25.35

1110

Pop Rivet 3/16"

293150008

$0.40

1220

Hex. Screw M8 X 40

207084044

$0.92

1230

Hex. Elastic Flange Nut M8

233281416

$1.25

1250

Tie Rod Ass'y | Includes 1250 to 1250f

506153140

$73.82

1250a

LH Threaded Ball Joint

506152344

$39.97

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.72

1250c

RH Threaded Ball Joint

506152684

$42.28

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.72

1280

Washer

506152582

$4.42

1300

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
