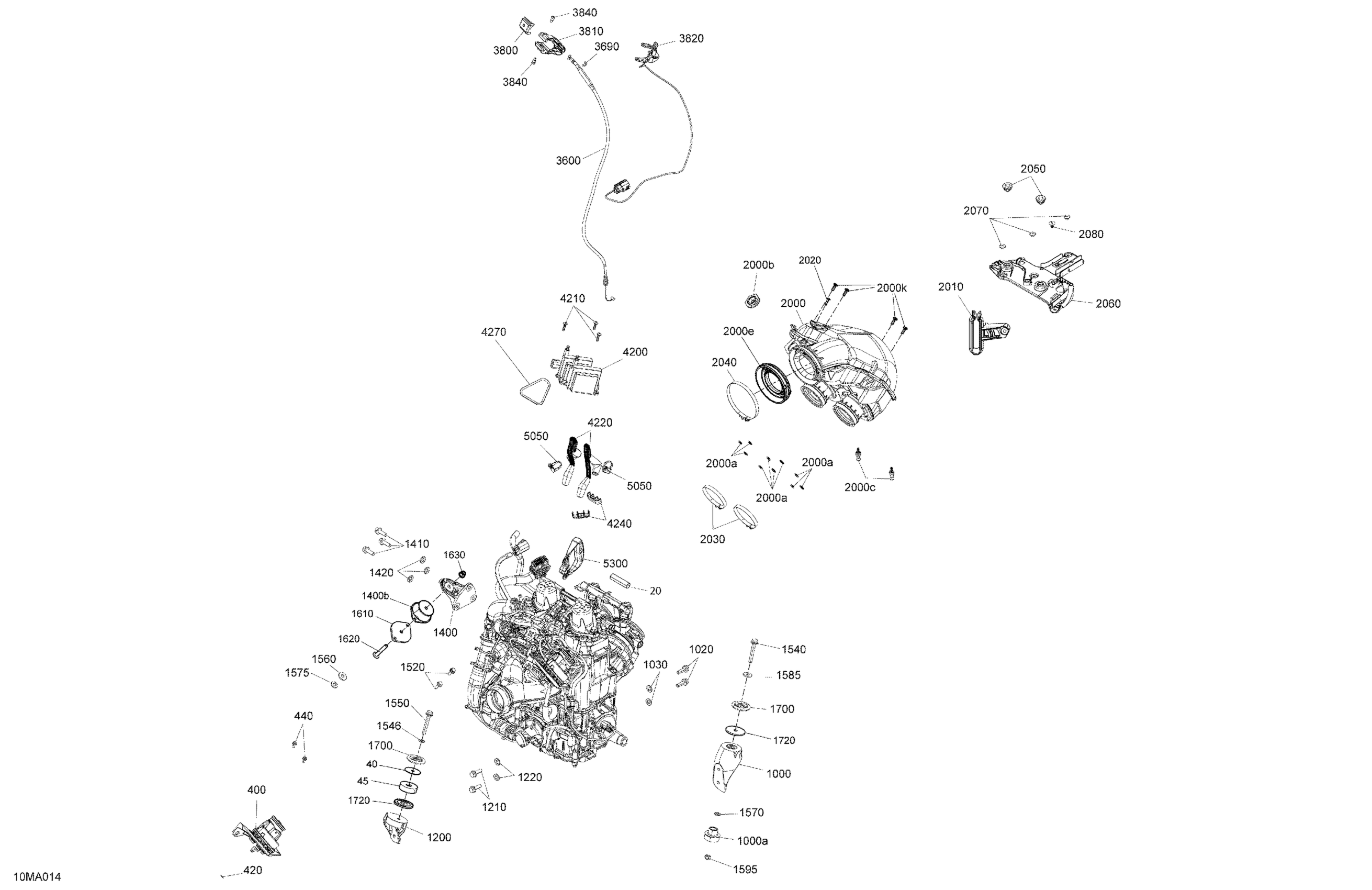

Ski-Doo 001 - SUMMIT 600R E-TEC - SP - North America, 2021 02- Engine - System Diagram

Braided Sleeve 60MM Long

515178492

$5.39

Washer

512061333

$9.85

PTO Limiter

512061334

$17.61

Servo Motor Ass'y

420889432

$329.99

Circlip

293370122

$4.29

Hex. Flange Screw M5 X 10

207551044

$4.12

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$76.49

Vibration Damper

512061516

$61.99

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Conical Spring Washer M8

250200146

$1.01

Front PTO Support

512061025

$31.99

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Conical Spring Washer M8

250200146

$1.01

MAG Support | Includes 1400 to 1400b

512061344

$78.49

Vibration Damper

512061516

$61.99

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Conical Spring Washer M8

250200146

$1.01

Hex. Flange Screw M6 X 16

250001062

$1.57

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$2.40

Conical Spring Washer M8

250200146

$1.01

Hex. Flange Screw M8 X 55

207585544

$1.69

Washer

506151245

$0.93

Flat Washer With Teflon 8 mm

250200008

$3.80

Conical Spring Washer M8

250200146

$1.01

Yellow, Washer

503183200

$3.19

Hex. Elastic Stop Nut M8

232581414

$0.56

Spacer | Includes 1610 to 1610b

512061398

$9.92

Torx Truss Screw M8 X 50

250000761

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Stopper

512061137

$8.57

Spacer

512061354

$20.49

Chamber Ass'y | Includes 2000 to 2000k

508001094

$184.99

Push Nut

732610072

$2.19

Rubber

512061083

$8.89

Screw

420441840

$2.11

Boot

508000805

$18.49

Torx Screw K50 X 16

250000720

$1.69

Chamber Ass'y | Includes 2000 to 2000h

508001093

$184.99

Push Nut

732610072

$2.19

Rubber

512061083

$8.89

Screw

420441840

$2.11

Boot

508000805

$18.49

Cable Guide

512061325

$0.99

Torx-Truss Pt K40 X 16

250000759

$2.11

GEMI Clamp

293650212

$7.65

Gemi Clamp

293650247

$7.65

Rubber Cap

420201630

$4.44

Airbox Support

512061274

$12.49

Pop Rivet 3/16"

293150103

$0.55

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Throttle Cable

512061224

$17.99

Circlip

414274500

$0.90

Upper Housing

512060859

$8.89

Lower Housing

512060860

$17.53

Throttle Ass'y

512061266

$124.99

Flange Screw M5x12

250000991

$7.51

Ignition Coil

512061168

$132.49

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Ignition Cable

512061166

$27.49

Spark Plug Wire Holder

512061238

$4.44

O-Ring

293300208

$7.51

Clamp

512060993

$5.39

Starter Grip

512060136

$14.83
