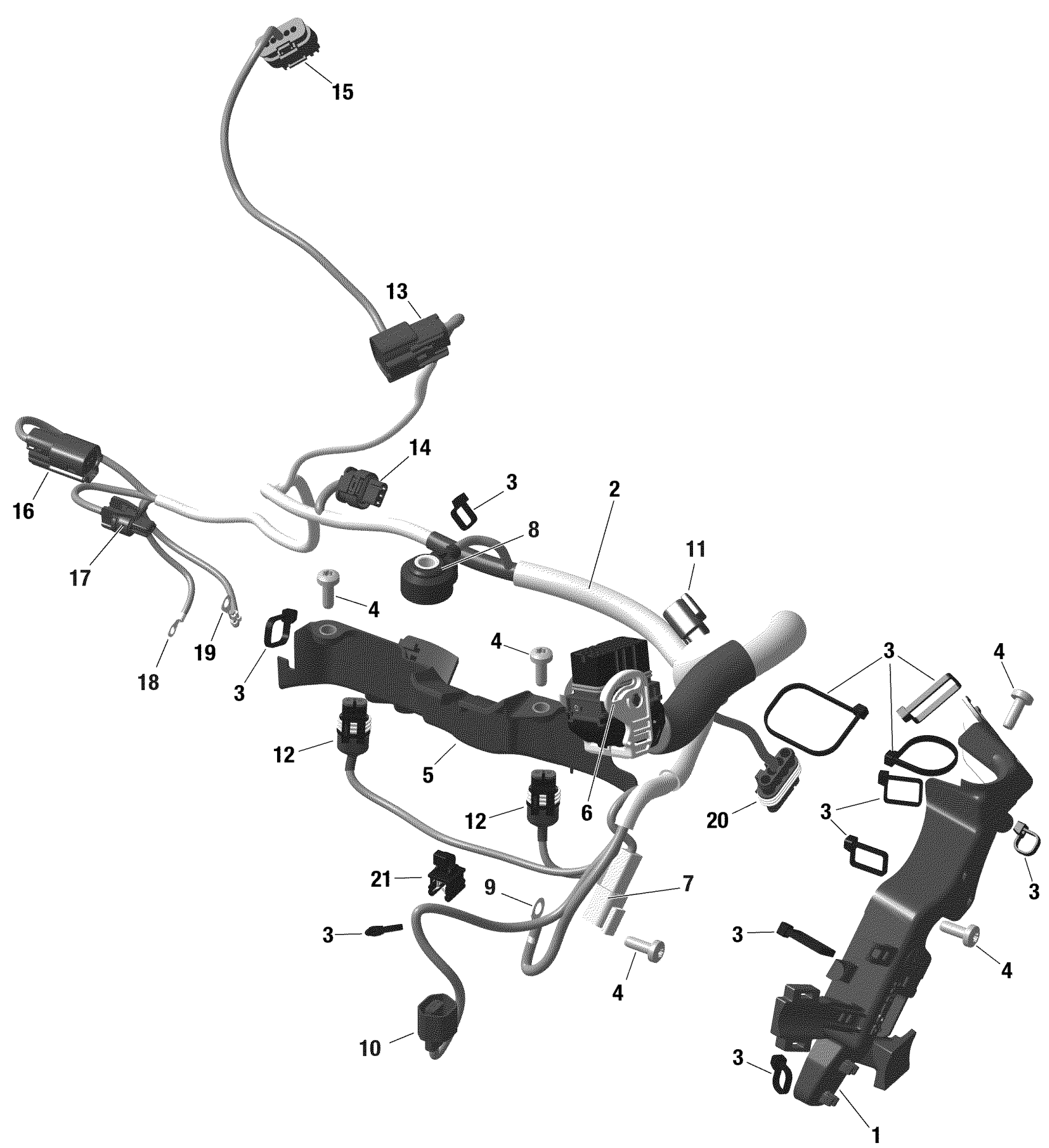

Ski-Doo SUMMIT 600R E-TEC - SP - 2021 Rotax - Engine Harness SHOT Diagram

#

Description

Price

1

Harness Support

420260164

$14.83

2

Engine Harness

420864447

$369.99

3

Locking Tie 175 X 4 MM

420651817

$1.05

4

Torx Screw M6 X 16

420640324

$2.11

5

Harness Support

420260166

$11.60

8

Male Housing, 2 Circuits

409206900

$9.59

11

Connector | Except Latina America

415130195

$24.99

12

Male Housing, 2 Circuits

409206900

$9.59

13

Female Housing, 2 Circuits

409209500

$15.27

14

Coil Connector

515178202

$13.24

17

Connector 2 Pins with CPA

710005827

$23.49

18

Female Housing, 2 Circuits

515177192

$9.12

21

Tie-Rap With Mount

420651810

$6.39
