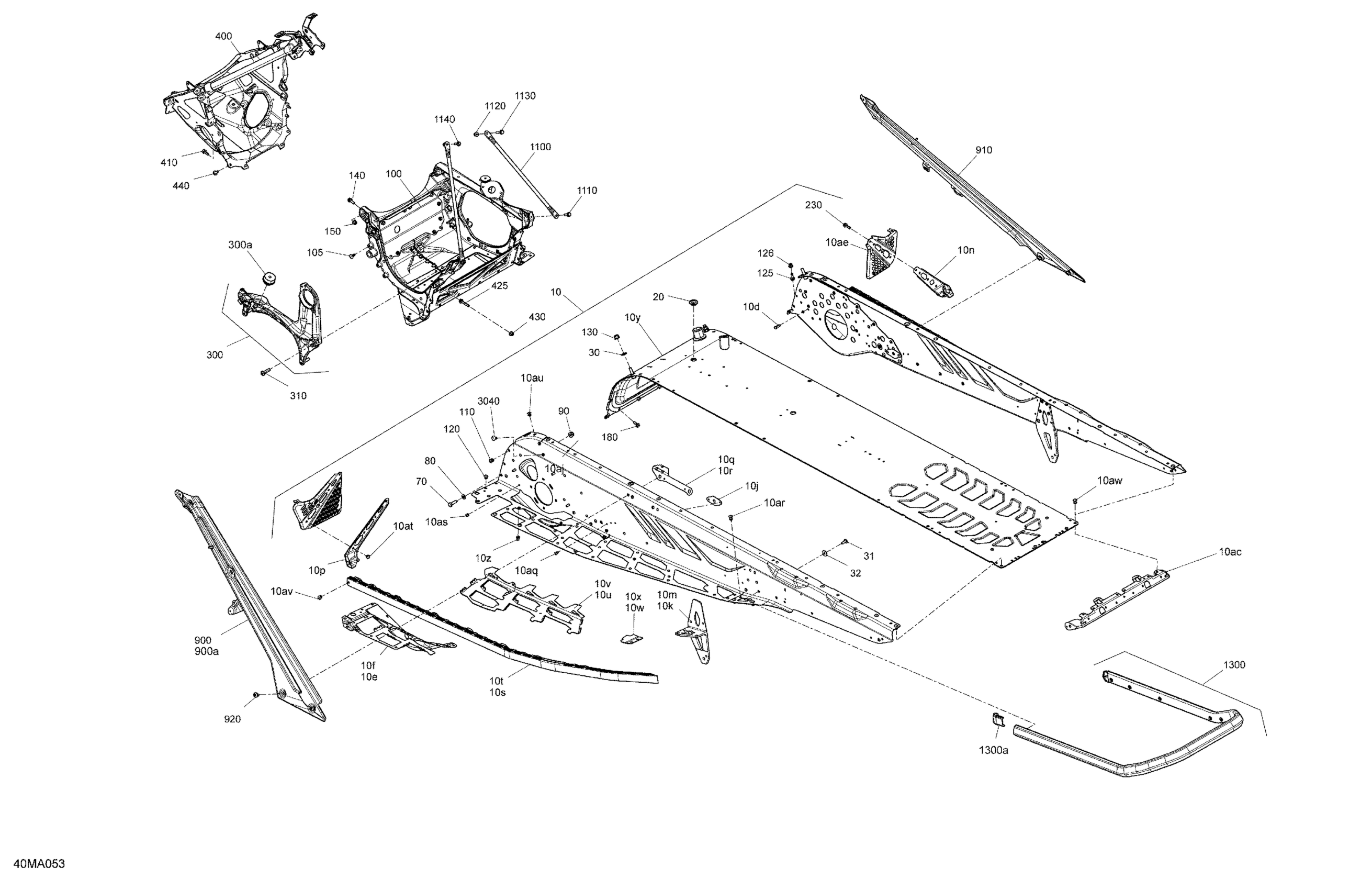

Ski-Doo SUMMIT 600R E-TEC - SP - Europe, 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10aw

518332371

Unavailable

10

Deep Black, Chassis Tunnel Module 154" | Model with 154" rear suspension

518332374

Unavailable

10d

Clinch Stud M6 X 20

250300027

$2.09

10e

RH Footrest Reinforcement

518332578

$88.99

10f

LH Footrest Reinforcement

518332577

$88.99

10j

Reinforcement Plate

518326647

$4.69

10k

LH Suspension Bracket

518328467

$45.99

10m

RH Rear Suspension Support

518334391

$94.99

10n

Stirrup Reinforcement

518331253

$21.99

10p

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10q

LH Under Chassis Reinforcement

518331744

$18.99

10r

RH Under Chassis Reinforcement

518331745

$19.99

10s

RH Roller

518328451

$194.99

10t

LH Roller

518328452

$194.99

10u

RH Tunnel Liner

518329646

$35.99

10v

LH Tunnel Liner

518329647

$35.99

10w

LH Reinforcement Plate

518329088

$3.39

10x

RH Reinforcement Plate

518329089

$4.59

10y

Radiator Tunnel 146

518335127

$739.99

10y

Radiator Tunnel 154 Ass'y

518334491

$709.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10ac

Rear Cap

518328990

$22.49

10ae

RH Footrest

518328460

$44.99

10aj

LH Footrest

518333007

$40.99

10aq

Avex Rivet

390909100

$0.30

10ar

Rivet

293150183

$2.11

10as

Avex Rivet

390909200

$0.30

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Conical Spring Washer M8

250200146

$1.01

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$619.99

105

Dart

293730079

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hex. Flange Screw M6 X 20

207662044

$2.00

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

440

Hex. Flange Screw M6 X 16

207661646

$1.36

900

Can-Am Red, LH Rear Diag Cross Member | Model Deep Black

518331052

$119.99

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Can-Am Red, RH Rear Diag Cross Member | Red

518331053

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Bumper 146

518329553

$169.49

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300a

Cap

520001612

$10.99

3040

Dart

293730079

$2.09
