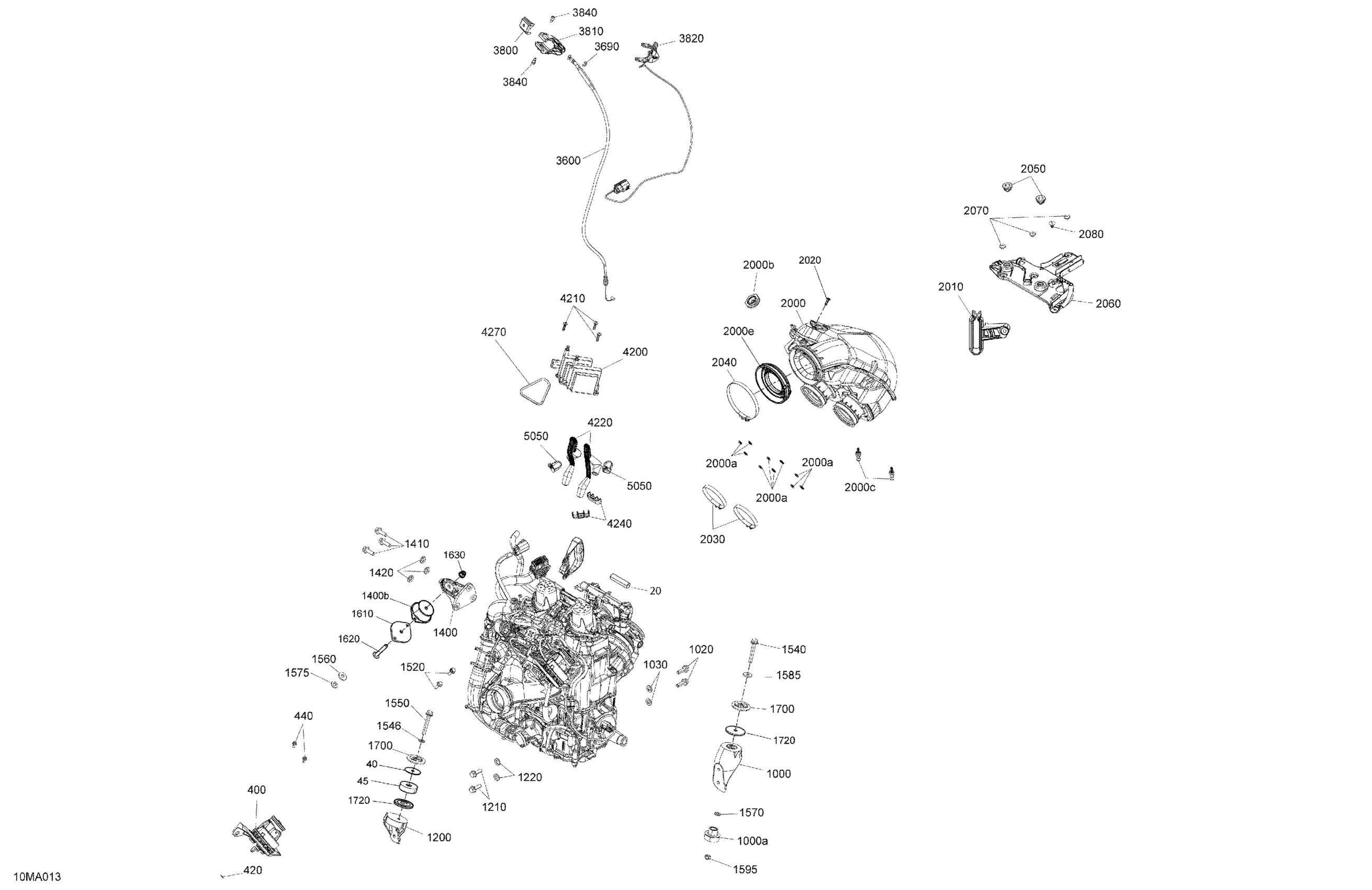

Ski-Doo SUMMIT 600R E-TEC - SP - Europe, 2021 Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.39

40

Washer

512061333

$9.85

45

PTO Limiter

512061334

$17.61

400

Servo Motor Ass'y

420889432

$329.99

420

Circlip

293370122

$4.29

440

Hex. Flange Screw M5 X 10

207551044

$4.12

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$76.49

1000a

Vibration Damper

512061516

$61.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

Front PTO Support

512061025

$31.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1400

MAG Support | Includes 1400 to 1400b

512061344

$78.49

1400b

Vibration Damper

512061516

$61.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1520

Hex. Flange Screw M6 X 16

250001062

$1.57

1540

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$2.40

1546

Conical Spring Washer M8

250200146

$1.01

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Washer

506151245

$0.93

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1575

Conical Spring Washer M8

250200146

$1.01

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1610

Spacer | Includes 1610 to 1610b

512061398

$9.92

1620

Torx Truss Screw M8 X 50

250000761

$7.51

1630

Hex. Flange Elastic Nut M8

233281414

$1.47

1700

Engine Stopper

512061137

$8.57

1720

Spacer

512061354

$20.49

2000

Chamber Ass'y | Includes 2000 to 2000h

508001093

$184.99

2000a

Push Nut

732610072

$2.19

2000b

Rubber

512061083

$8.89

2000c

Screw

420441840

$2.11

2000e

Boot

508000805

$18.49

2010

Cable Guide

512061325

$0.99

2020

Torx-Truss Pt K40 X 16

250000759

$2.11

2030

GEMI Clamp

293650212

$7.65

2040

Gemi Clamp

293650247

$7.65

2050

Rubber Cap

420201630

$4.44

2060

Airbox Support

512061274

$12.49

2070

Pop Rivet 3/16"

293150103

$0.55

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600

Throttle Cable

512061224

$17.99

3690

Circlip

414274500

$0.90

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Throttle Ass'y

512061266

$124.99

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061168

$132.49

4210

Torx Screw Truss Head K50X20 T20

250000760

$2.11

4220

Ignition Cable

512061166

$27.49

4240

Spark Plug Wire Holder

512061238

$4.44

4270

O-Ring

293300208

$7.51

5050

Clamp

512060993

$5.39
