Description

Price

10

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10ae

518331471

Unavailable

10

Deep Black, Chassis Tunnel Module 154" | Frame 154 Inch

518331487

Unavailable

10a

Radiator Tunnel 146

518334489

$739.99

10a

Radiator Tunnel 154 Ass'y

518334491

$709.99

10b

Clinch Stud M6 X 20

250300027

$2.09

10c

RH Footrest Reinforcement

518330979

$88.99

10d

LH Footrest Reinforcement

518332577

$88.99

10e

RH Footrest

518329619

$44.99

10f

LH Footrest

518331549

$43.99

10g

LH Suspension Bracket

518328467

$45.99

10h

RH Rear Suspension Support

518334391

$94.99

10j

Stirrup Reinforcement

518331253

$21.99

10k

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10m

LH Member Fixation Plate

518330299

$18.99

10n

RH Under Chassis Reinforcement

518331745

$19.99

10p

RH Roller

518329023

$194.99

10q

LH Roller

518329024

$194.99

10s

Clinch Nut M6 Hexsert

605636003

$4.23

10t

Rear Cap

518328990

$22.49

10u

RH Footrest

518328460

$44.99

10v

LH Footrest

518333007

$40.99

10w

Avex Rivet

390909100

$0.30

10x

Rivet Hucklok

293150163

$2.99

10y

Avex Rivet

390909200

$0.30

10z

Hemlock Rivet, 6.5 mm

293150096

$3.27

10aa

Hemlock Rivet, 6.5 mm

293150119

$4.29

10ab

Hemlock Rivet, 6.4 mm

293150174

$7.86

10ac

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$619.99

130

Hex. Flange Elastic Nut M8

233281414

$1.47

230

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

420

Hex. Flange Screw M6 X 20

207662044

$2.00

440

Hex. Flange Screw M6 X 16

207661646

$1.36

900

Blue, LH Member | Gulfstream Blue

518330136

$119.99

910

Gulfstream Blue, RH Rear Diag Cross Memb

518331055

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1130

Hex. Flange Screw M6 X 25

207662544

$0.64

1140

Hex. Flange Screw M6 X 20

207662044

$2.00

1300

Rear Bumper 146

518329553

$169.49

3040

Dart

293730079

$2.09

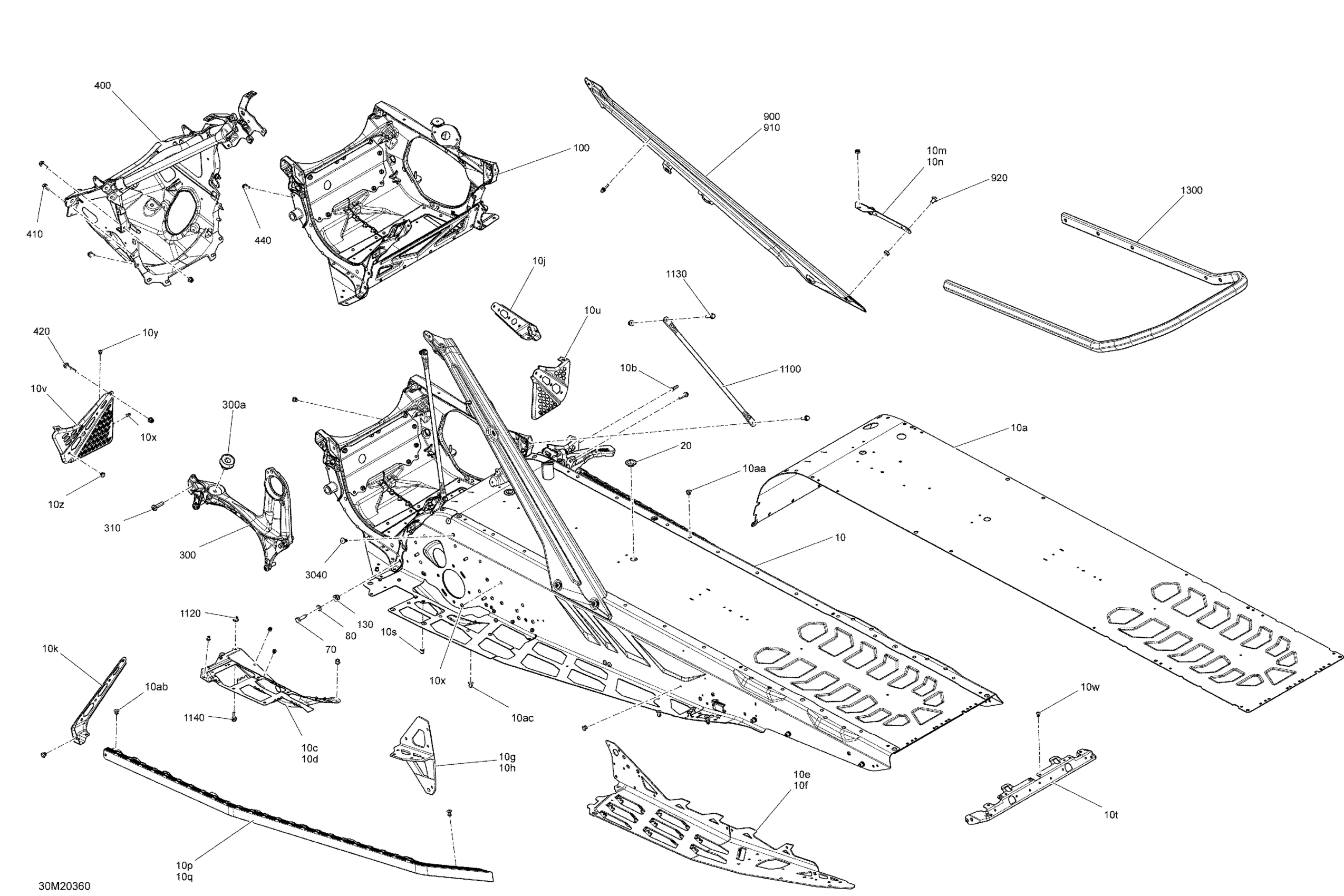

Ski-Doo 001 - SUMMIT 600R E-TEC - Europe, 2020 09- Frame - System - SP Diagram

Deep Black, Chassis Tunnel Module 146" | Includes 10 to 10ae

Deep Black, Chassis Tunnel Module 154" | Frame 154 Inch

Radiator Tunnel 146

Radiator Tunnel 154 Ass'y

Clinch Stud M6 X 20

RH Footrest Reinforcement

LH Footrest Reinforcement

RH Footrest

LH Footrest

LH Suspension Bracket

RH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chasssis Reinforcement

LH Member Fixation Plate

RH Under Chassis Reinforcement

RH Roller

LH Roller

Clinch Nut M6 Hexsert

Rear Cap

RH Footrest

LH Footrest

Avex Rivet

Rivet Hucklok

Avex Rivet

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.4 mm

Ornit Rivet 6,5 X 14.5

Black, Plug

Hex Screw M8 X 30

Flat Washer 8 mm

Engine Chassis Module Ass'y | Includes 100 to 100n

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20, Scotch Grip

LH Side Member Ass'y | Includes 300 to 300a

Vibration Damper

Screw-Pan HD.Torx M8X30

Chassis Suspension Module

Screw-Forming Hex.HD.FL. M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Blue, LH Member | Gulfstream Blue

Gulfstream Blue, RH Rear Diag Cross Memb

Pan Head Torx Screw M8 X 12

Upper Colomn Support

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 20

Rear Bumper 146

Dart
