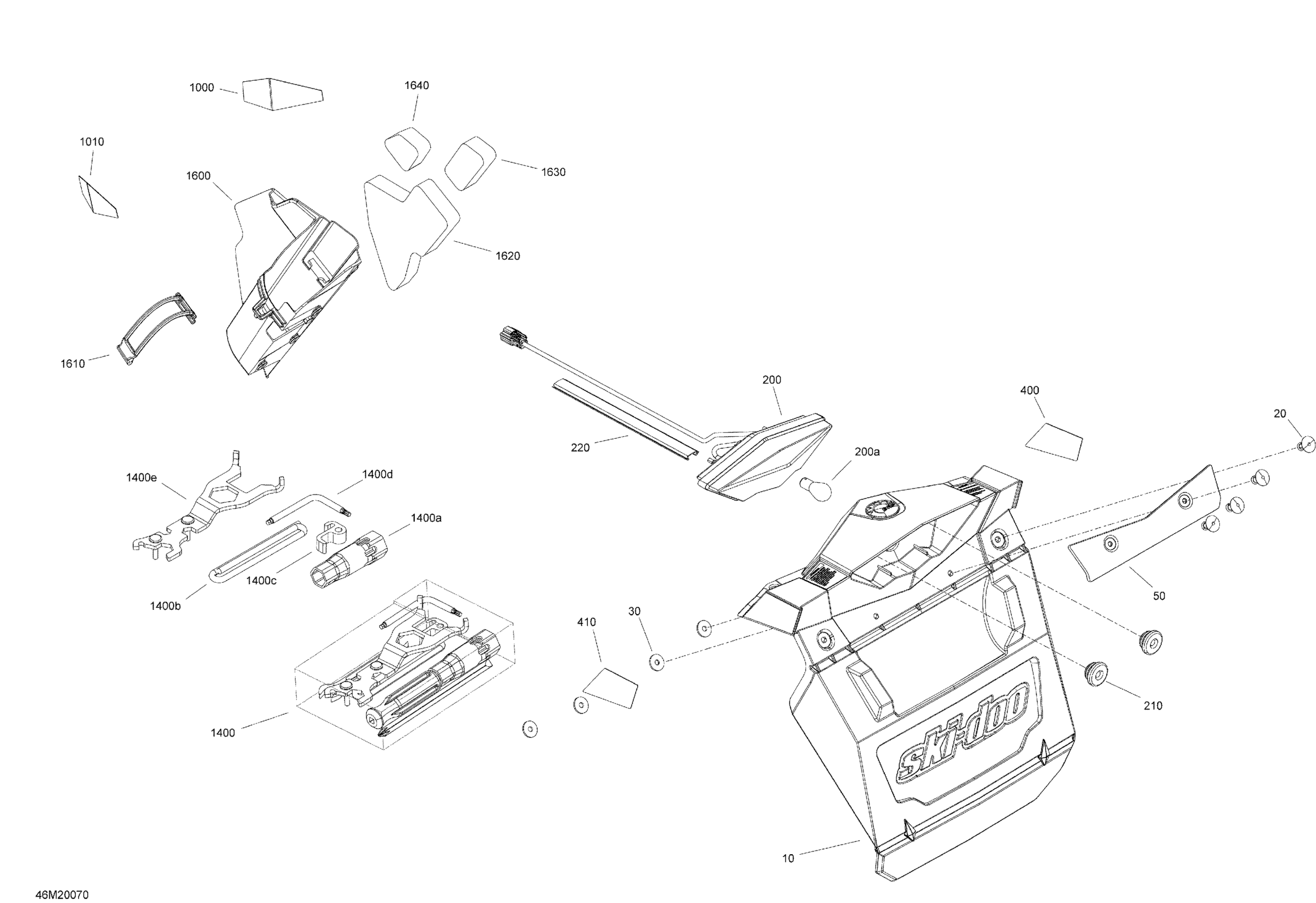

Ski-Doo 001 - SUMMIT 600 CARB - North America, 2020 09- Utilities Diagram

Description

Price

Snow Guard

520000784

$63.99

Pop Rivet 3/16”

293150108

$1.19

Washer

517124300

$0.19

Reinforcement

520000751

$20.99

200

Rear Light | Includes 200 to 200a

520001559

$93.49

200a

Bulb

520000758

$9.10

210

Stopper Rubber

705014429

$5.95

220

Radiator Trim

520000829

$21.99

400

Red, RH Rear Reflector

520001162

$20.99

410

Red, LH Rear Reflector

520001161

$41.99

1000

Yellow, RH Front Reflector

520000718

$15.99

1010

Yellow, LH Front Reflector

520000719

$15.99

1400

Tools Kit | Includes 1400 to 1400e

520001670

$49.49

1400a

Set Key, 16/21 mm

529000046

$14.49

1400b

Rope Starter

529017500

$1.17

1400c

Starter Grip

529000060

$14.15

1400d

Key

520001589

$12.89

1400e

Wrench

520001499

$13.73

1600

Tool Kit Rack

520000842

$15.99

1610

Latch

520000528

$7.69

1620

Foam

520001059

$15.49

1630

Foam

520001061

$12.99

1640

Foam

520001062

$5.89
