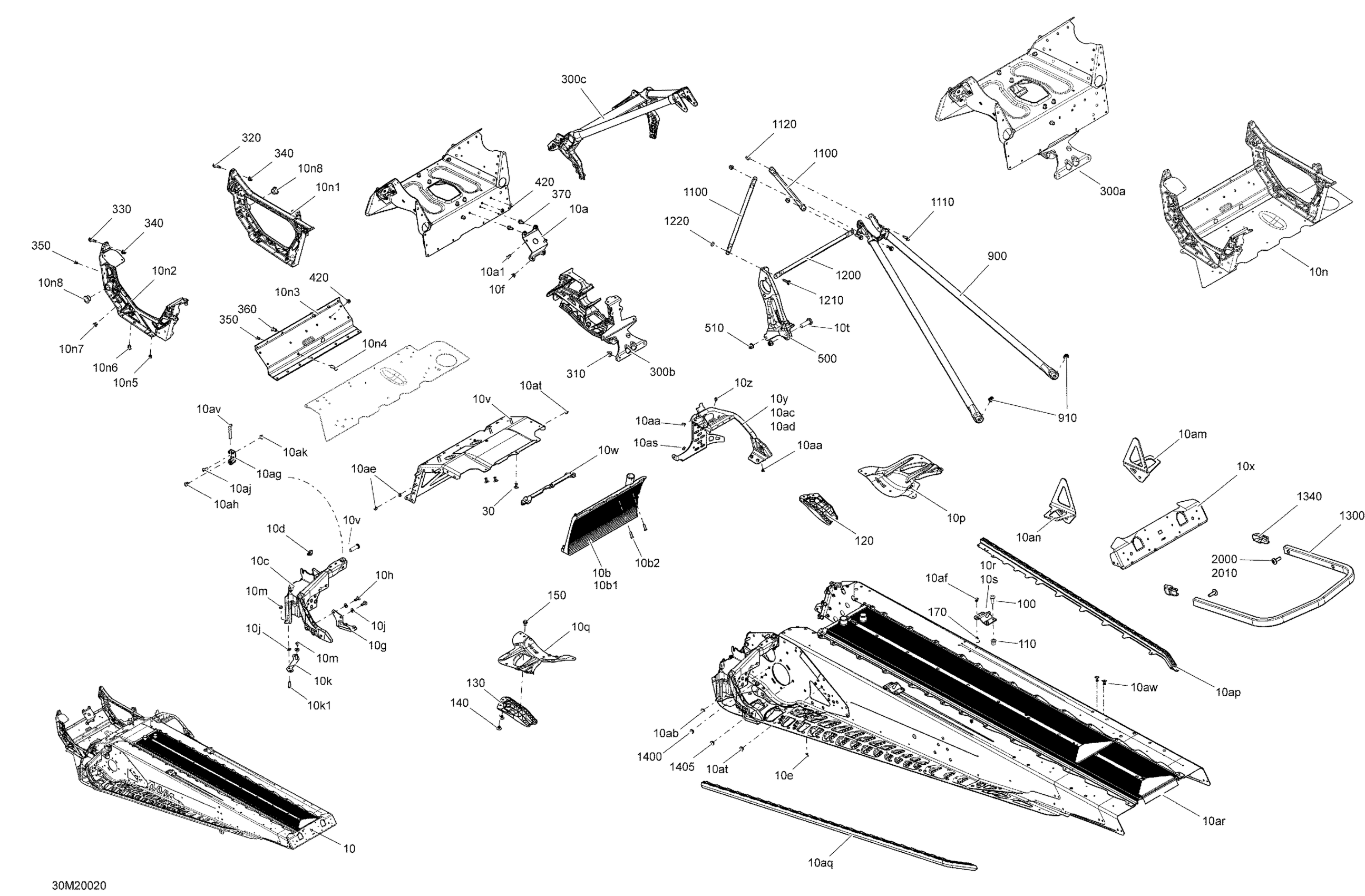

Ski-Doo 001 - SUMMIT 600 CARB - North America, 2020 09- Frame Diagram

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to 10br This part replaces 415130277.

415130016

Unavailable

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

Clinch Stud M6 X 20

250300027

$2.09

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Clinch Stud M6 X 20

250300027

$2.09

LH Stirup

518326820

$37.99

Panel Nut M5 X 0.8

250000958

$4.23

Rivet Avibulb 3/16

293150203

$2.09

Hemlock Rivet, 6.5 mm

293150119

$4.29

Support

518326960

$12.99

Tork Screw M6 X 18

250000536

$2.11

Flat Washer

250200039

$0.74

Attach | Includes 10n to 10p

518326986

$12.99

Clinch Stud M6 X 20

250300027

$2.09

Elastic Stop Nut M6

232561414

$0.55

E Module | Includes 10n to 10at

518327567

$469.99

RH Member

518326795

$284.99

LH Member

518326796

$229.99

Front Member

518326198

$64.99

Clinch Stud

250300038

$4.29

Stavex Rivet

293150144

$0.82

Hemlock Rivet 6.5 mm

293150120

$7.41

Hemlock Rivet, 6.5 mm

293150119

$4.29

Leg Cushion

505073317

$8.66

RH Reinforcement

518324874

$27.99

LH Reinforcement

518324875

$27.99

RH Rear Base

518325973

$21.99

LH Rear Base | Includes 10v to 10x

518325974

$21.99

Clinch Stud

250300038

$4.29

Clinch Stud M6 X 20

250300027

$2.09

Seal

518326656

$9.19

Rear Cap

518327105

$22.49

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

Avex Rivet

390909200

$0.30

Full Moon Dart 5 mm

293730042

$2.21

Rivet Avibulb 3/16

293150203

$2.09

Avex Rivet

390909100

$0.30

Stavex Rivet

293150144

$0.82

Henrob Rivet

293150146

$2.09

Hemlock Rivet, 6.4 mm

293150174

$7.86

U-Attach

518326961

$10.99

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Tork Screw M6 X 16

250000534

$2.11

Hex. Flange Nut M6

233061414

$1.68

RH Suspension Bracket

518324976

$43.99

LH Suspension Bracket

518324977

$43.99

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

LH Roller | Includes 10bd to 10be

518325160

$78.99

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

$739.99

Stavex Rivet

293150144

$0.82

Rivet Avibulb 3/16

293150203

$2.09

Torx Screw M8 X 55

250000535

$3.17

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Pop Rivet 3/16"

390402400

$0.35

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

RH Deflector, Black Polypropylene

518325782

$13.99

LH Deflector, Black Polypropylene

518325783

$13.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hemlock Rivet, 6.4 mm

293150174

$7.86

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

Front Suspension Support

518327487

$289.99

Front Member

518326970

$299.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Monobolt Rivet, 4.8 mm

293150191

$0.99

Monobolt Rivet 6.4

293150182

$3.09

Hex. Flange Screw M6 X 16

207661644

$0.74

Black Dart 5 mm

293730053

$4.55

Pulley Support

518328346

$129.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Member

518326559

$264.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Lateral Column Support

518325114

$22.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Center Column Support

518325115

$22.49

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rear Bumper, 146"

518325374

$111.49

Full Moon Cap

520000567

$10.99

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37
