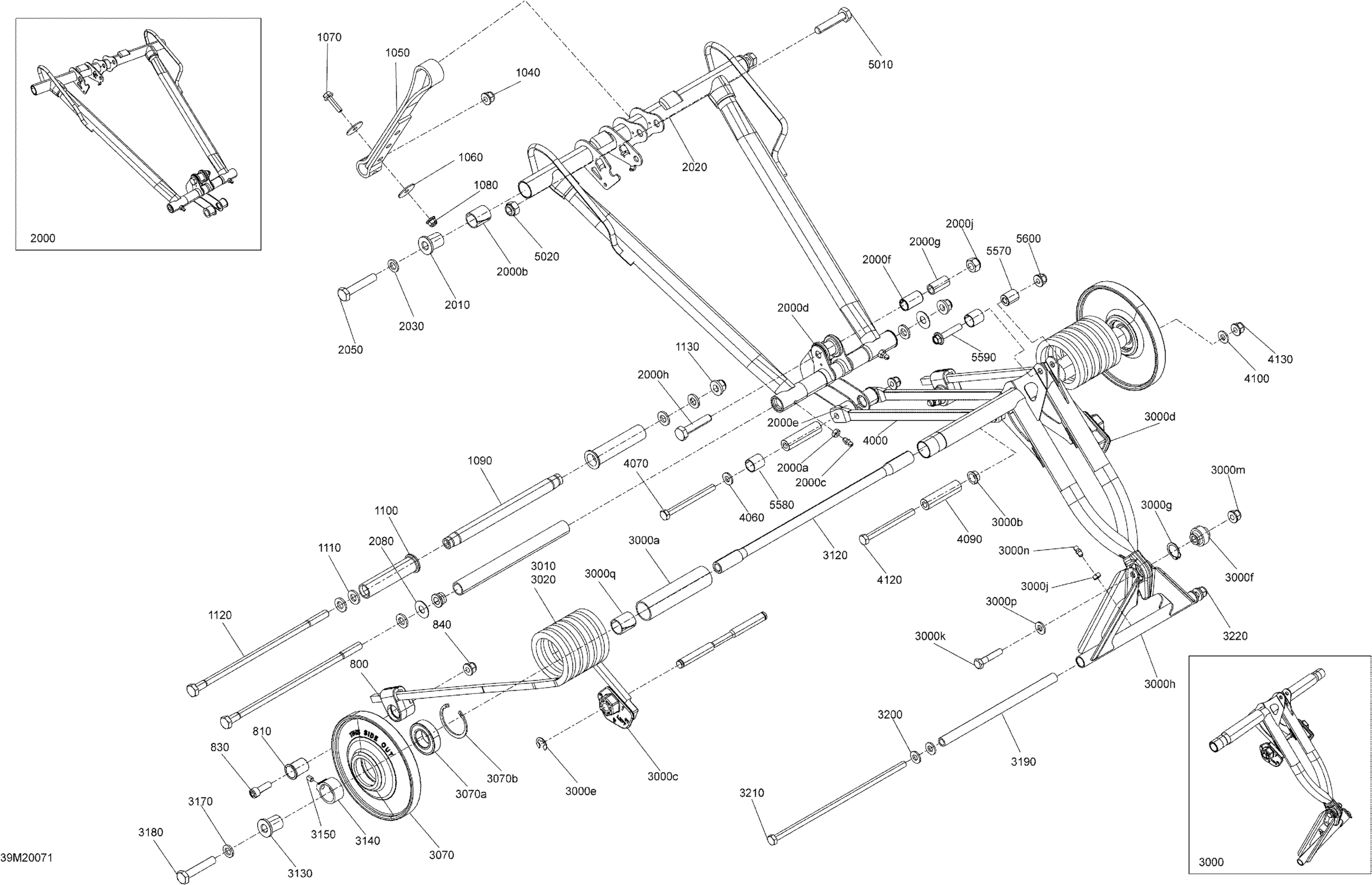

Ski-Doo SUMMIT 600 CARB - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

800

Spring Support Kit

861805547

$7.90

810

Spring Support Kit

861805547

$7.90

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

1040

Elastic Flange Nut M8

233281466

$0.96

1050

Stopper Strap

503194679

$27.58

1060

Washer | Not Shown

503193995

$4.25

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

1080

Hex. Flange Elastic Nut M6

233261466

$1.91

1090

Pivot Axle

503193435

$37.28

1100

Center Bushing

503191259

$8.70

1110

Flat Washer

250200143

$3.01

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$231.31

2000a

Hexagonal Nut M6

232061404

$0.31

2000b

Extended Bushing

503191556

$5.54

2000c

Grease Fitting

408200700

$3.21

2000d

Rocker

503193464

$76.09

2000e

Swivel Bushing

503191555

$5.54

2000f

Bushing

503193037

$14.90

2000g

Bushing | Includes 240d to 240d1

503189282

$4.06

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.63

2010

Bushing

503194970

$13.19

2020

Upper Shaft

503193441

$35.04

2030

Washer

503192496

$0.73

2050

Hex. Screw S.Grip M10 X 55

250000605

$7.09

2080

Washer

250200032

$4.84

3000

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$407.43

3000a

Bushing

503193218

$9.69

3000b

Swivel Bushing

503191555

$5.54

3000c

LH Cam Adjuster

503191565

$13.54

3000d

RH Cam Adjuster

503191566

$13.54

3000e

E-Circlip

293370013

$0.60

3000f

Radial Joint

503194035

$67.88

3000g

Inner Circlip

293370114

$4.25

3000h

Pivot Arm

503193699

$118.63

3000j

Hexagonal Nut M6

232061404

$0.31

3000k

Hex. Screw M8 X 1.25 X 40

207084056

$3.01

3000m

Elastic Flange Nut M8

233281466

$0.96

3000n

Grease Fitting

408200700

$3.21

3000p

Washer

503192494

$3.01

3000q

Extended Bushing

503191556

$5.54

3010

Black, LH Spring Square

503193003

$85.79

3020

Black, RH Spring Square

503193002

$85.79

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$44.75

3070a

Ball Bearing

503193548

$16.39

3070b

Retaining Ring

415129780

$13.46

3120

Upper Shaft

503193441

$35.04

3130

Bushing

503194970

$13.19

3140

Retaining Ring

503193439

$13.54

3150

Socket Set Screw M6 X 8

206260844

$1.43

3170

Washer

503192496

$0.73

3180

Hex. Screw S.Grip M10 X 55

250000605

$7.09

3190

Pivot Arm Axle

503189156

$20.12

3200

Washer

503192494

$3.01

3210

Bolt M8 X 248mm

503192440

$29.07

3220

Elastic Flange Nut M8

233281466

$0.96

4000

Acceleration Link Rod

503192900

$26.09

4060

Washer

503192494

$3.01

4070

Screw M8 X 90

503193372

$4.15

4090

Axle

503193993

$14.90

4100

Washer

503192494

$3.01

4120

Screw M8 X 90

503193372

$4.15

4130

Elastic Flange Nut M8

233281466

$0.96

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5020

Elastic Locking Nut M10

233601466

$2.00

5570

Axle Shock Absorber

503196509

$9.69

5580

Leg Cushion

505072663

$7.18

5590

Hex. Flange Screw M8 X 40

207684044

$1.43

5600

Elastic Flange Nut M8

233281466

$0.96
