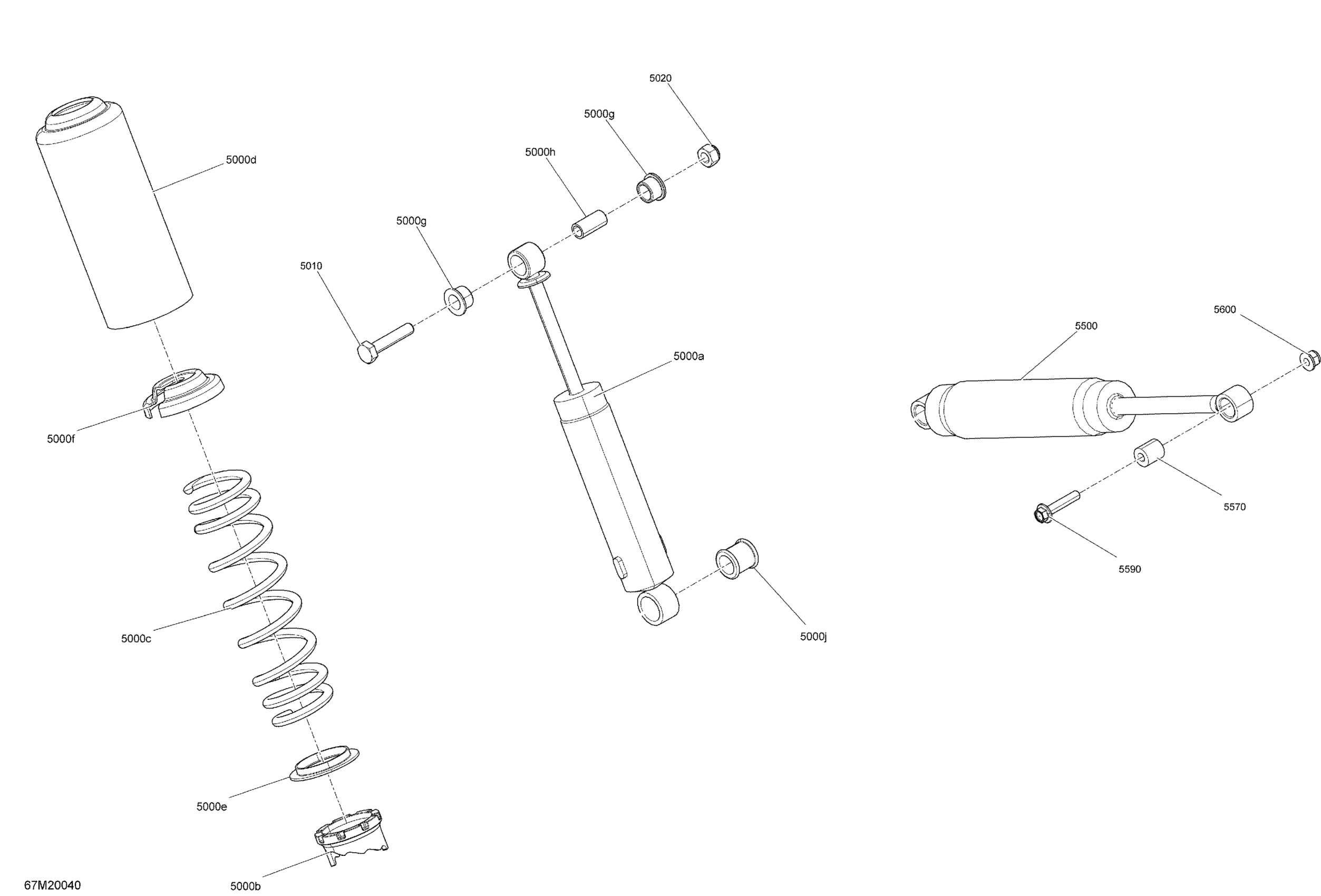

Ski-Doo 001 - SUMMIT 600 CARB - North America, 2020 08- Suspension, Rear - Shocks Diagram

Description

Price

5000a

Center Shock

503192209

$164.49

5000b

Adjustment Cam

505073625

$12.99

5000c

Black, Spring

503191882

$62.49

5000d

Protector

503193663

$37.99

5000e

Spring Guide

503191872

$2.29

5000f

Spring Stopper

706200881

$12.99

5000g

Urethane Bushing

503189117

$8.19

5000h

Bushing | Includes 240d to 240d1

503189282

$4.34

5000j

Bushing

503189271

$13.99

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5020

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock

503193189

$248.99

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
