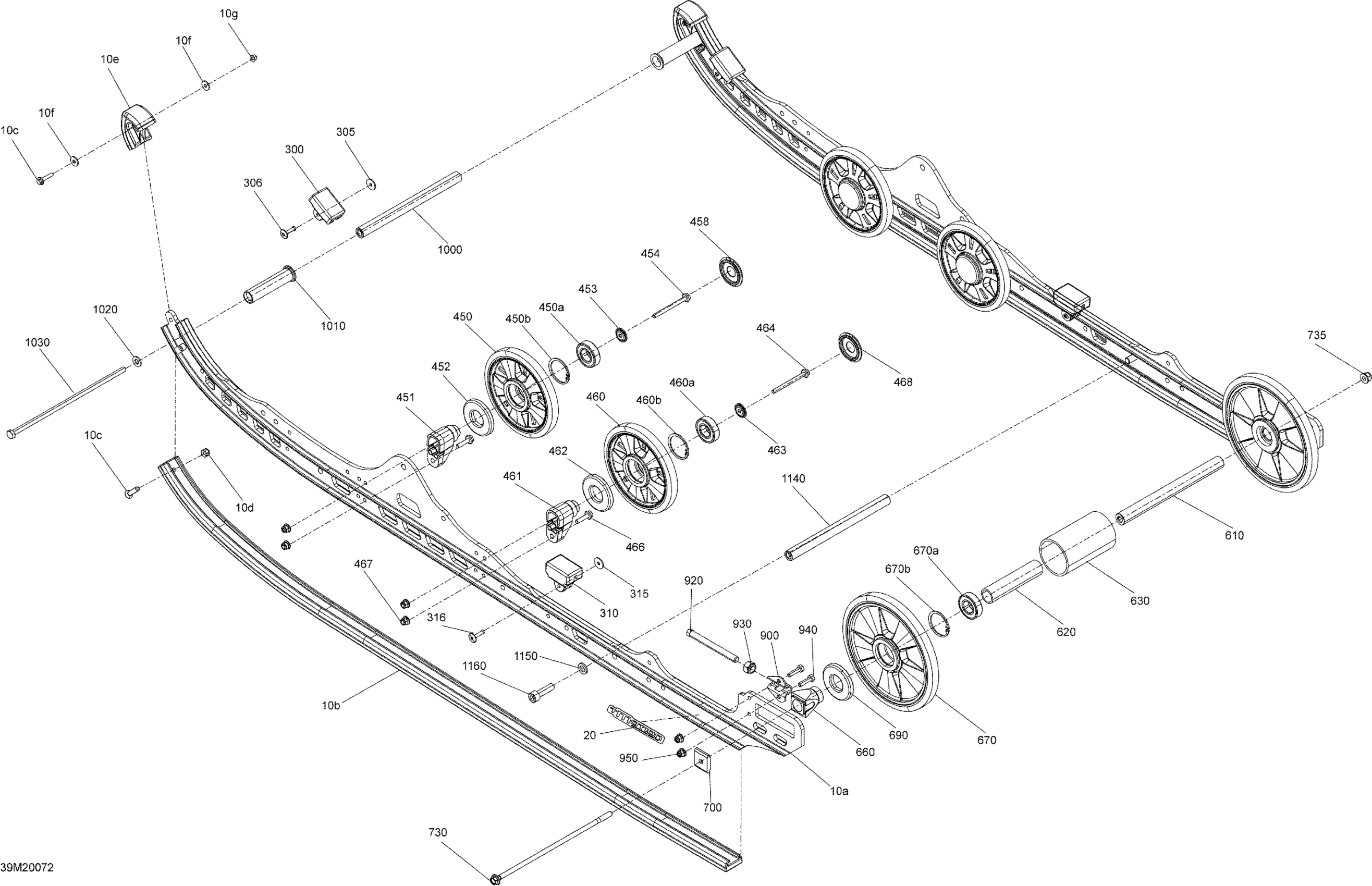

Ski-Doo SUMMIT 600 CARB - 2020 Suspension, Rear - Lower Section Diagram

#

Description
Price

10a

Bare Aluminum Runner 146"

503193345

$230.74

10b

Black, Slider 146

503191499

$33.05

10c

Phillips Screw M6 X 25

208562531

$1.74

10d

Elastic Stop Nut M6

232561414

$1.55

10e

Runner Protector

503192299

$23.82

10f

Washer

250200140

$0.83

10g

Hex. Flange Screw M5 X 25

207652544

$0.42

20

Not Available As Spare Part - Friction Washer

Unavailable

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16

293150224

$0.98

310

Rubber Stopper

503193504

$12.69

315

Washer

503191273

$1.06

316

Pop Rivet 3/16

293150224

$0.98

450

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

451

Casted Support

503193894

$12.75

452

Labyrinth Seal

503190434

$4.29

453

Wheel Cup M6

503191820

$4.66

454

Hex. Flange Screw M6 X 70

250000944

$3.61

458

Black, Wheel Cap

503192771

$2.28

460

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

461

Casted Support

503193894

$12.75

462

Labyrinth Seal

503190434

$4.29

463

Wheel Cup M6

503191820

$4.66

464

Hex. Flange Screw M6 X 70

250000944

$3.61

466

Hex. Flange Screw M6 X 25

250000945

$3.61

467

Hex. Flange Elastic Nut M6

233261466

$1.66

468

Black, Wheel Cap

503192771

$2.28

610

Rear Axle

503194200

$72.28

620

Rear Spacer

503191263

$15.35

630

Bushing

503193097

$7.52

660

Rear Wheel Spacer

503190428

$6.06

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

670a

Ball Bearing | Package-STD

503190396

$7.12

670b

Retaining Ring

415129371

$8.92

690

Labyrinth Seal

503190434

$4.29

700

Axle Slider

503194412

$11.45

730

Bolt

503194265

$26.89

735

Elastic Flange Nut M8

233281466

$0.83

900

Tensioner

503192583

$5.85

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

950

Hex. Flange Elastic Nut M6

233261466

$1.66

1000

Axle

503194845

$10.45

1010

Center Bushing

503191259

$8.97

1020

Washer

503192494

$3.11

1030

Bolt M8 X 248mm

503192440

$29.97

1140

Axle Strap

503191260

$29.20

1150

Washer

503192496

$0.75

1160

Socket Head Screw M10 X 35

205503554

$6.18
