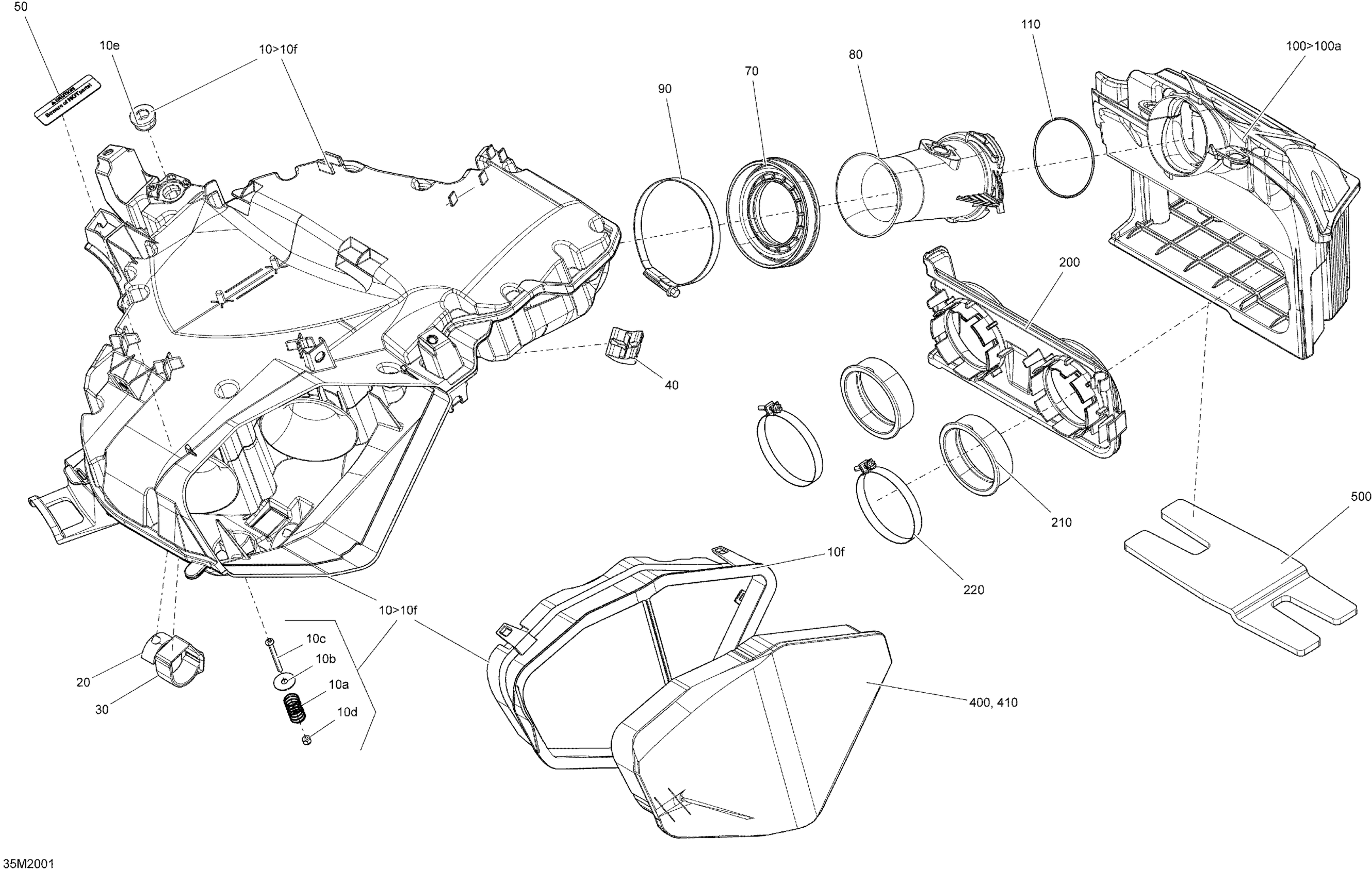

Ski-Doo SUMMIT 600 CARB - 2020 Engine - Air Intake Diagram

Description

Price

Secondary Chamber Ass'y | Includes 10 to 10f

508000656

$159.99

10a

Spring

508000576

$7.79

10b

Flat Washer

224060201

$1.26

10c

Socket Head Screw M4 X 40

205444056

$2.11

10d

Elastic Stop Nut M4

232541414

$0.58

10e

Grommet

508000574

$8.59

10f

Air Filter

508000626

$39.99

Stopper

508000537

$7.79

Velcro Strip

508000820

$8.59

Bumper

508000572

$7.51

Caution Decal Hot Parts

516005280

Unavailable

Boot

508000567

$18.49

Flute

508000661

$14.49

Norma Clamp

514052924

$14.22

100

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$86.99

100a

Notice Decal, Air Intake Silencer

516005876

$4.39

110

O-Ring

293300115

$3.77

200

Plate Adapter

508000500

$19.99

210

Air Intake Adapter

508000501

$20.99

220

Gemi Clamp

508000346

$10.33

400

Foam Filter

415129377

$38.99

410

Filter Cover

415129376

$75.99

500

Insulated Foam

508000739

$8.89
