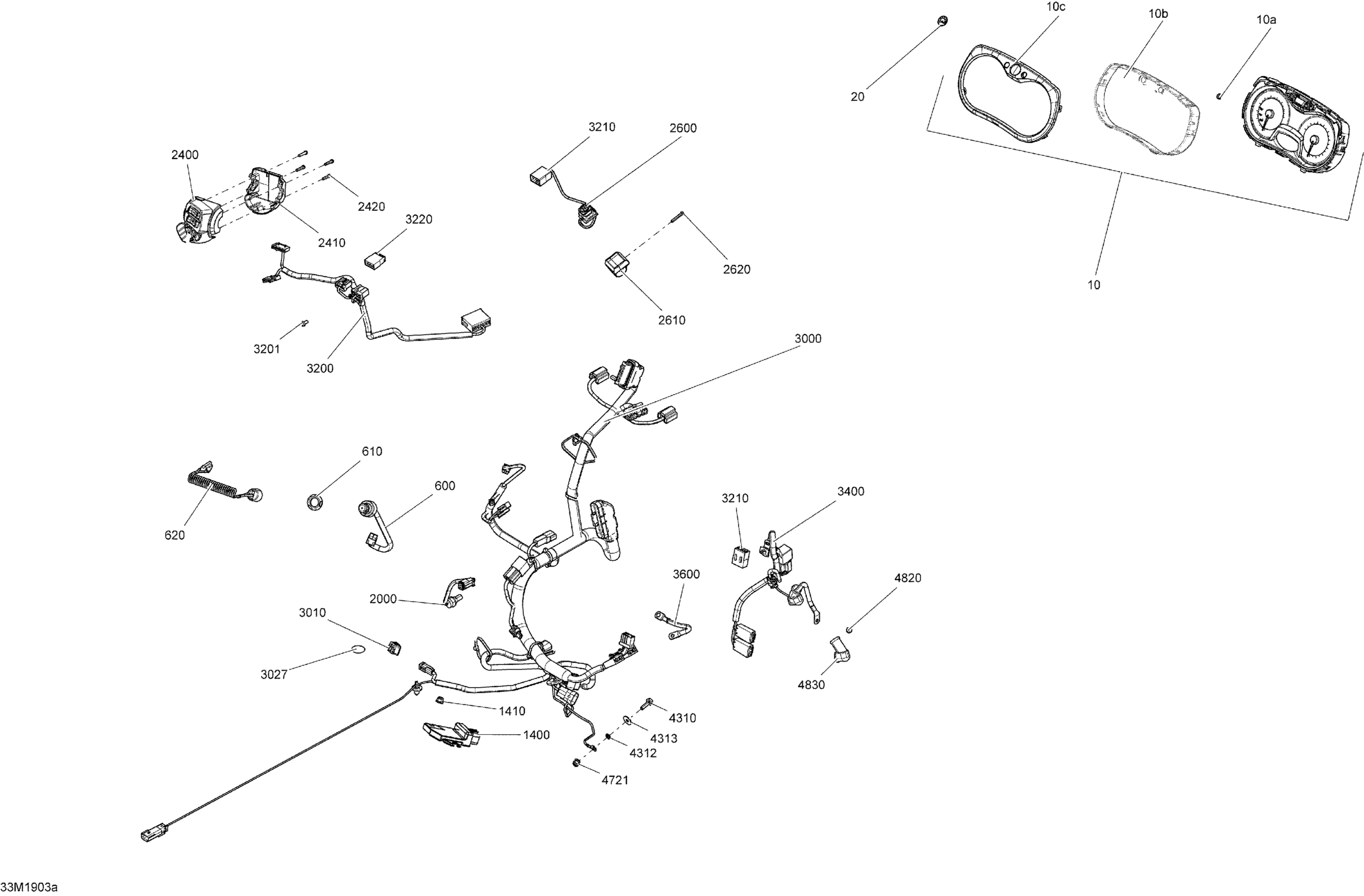

Ski-Doo SUMMIT 600 CARB, 2019 Electrical - 600 CARB Diagram

#

Description
Price

10

Speedometer | Includes 10 to 10c

515177914

$593.82

10a

Speedometer Button | XTP

415129355

$13.94

10b

Gauge Ring

415129370

$10.66

10c

Lens | XTP

415129349

$23.05

20

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

600

DESS Switch

515177249

$106.12

610

Safety Nut (DESS Switch)

278002963

$2.72

620

DESS

515178284

$81.51

1400

Voltage Regulator

515176364

$147.66

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2000

Sensor Temperature

515177814

$55.35

2400

LH Housing

515177022

$213.82

2400a

Start/RER Button

515176088

$18.43

2410

Switch Housing Plate

515175926

$17.66

2420

Torx Screw #8-18

250000263

$1.02

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

2600a

Male Terminal

515175232

$1.49

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

Main Harness

515177980

$425.35

3010

Lock

515176681

$18.43

3027

Adhesive Patch

518325560

$4.34

3200

Steering Wiring Harness

515177609

$106.89

3201

Pan Screw Forming, 7500C

250000690

$2.06

3210

Male Terminal Housing, 8 Circuits

515175817

$8.57

3220

Male Terminal Housing, 6 Circuits

515175662

$8.57

3600

Ground Wire

515177289

$25.35

4205

Black, Dart

414644300

$0.78

4310

Hex. Flange Screw M6 X 20

207662044

$1.66

4312

External Serrated Lock Washer 6 mm

234461608

$0.92

4313

Flat Washer

250200082

$0.35

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6000

Extension

515175851

$10.88
