Description

Price

10

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

20

Grip 148mm

506152560

$16.88

25

Heating Element 32 Watt 3 Wires

506152798

$52.99

35

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

50

Thermal Insulation

506153176

$6.09

400

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

405

Steering Support | Includes 40 to 40a

506152751

$13.99

410

Steering Support | Includes 40 to 40a

506152751

$13.99

420

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

500

Deep Black, Steering Pad

506152541

$41.99

520

Moulding Strap

506152460

$67.99

530

Black Support Plate

506152703

$16.49

535

Clamps | Includes 75a to 75b

719000049

$14.83

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

545

Hex. Flange Screw M6 X 25

250000447

$2.11

1000

Steering Column

506152962

$199.99

1010

Upper Half-Housing

506152508

$9.23

1012

Lower Half-Housing

506152217

$7.62

1014

Upper Anti-Vibration Gasket

506152509

$4.79

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 X 70

250001027

$2.11

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 X 70

250001027

$2.11

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152297

$12.99

1051

Hex. Flange Screw M6 X 70

250001027

$2.11

1052

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1060

Plate

506152163

$12.99

1220

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

1230

Elastic Locking Nut M10

233601466

$2.11

1250a

Tie-Rod

506152482

$38.99

1250b

LH Thread Ball Joint

506152081

$41.49

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250d

RH Threaded Ball Joint

506152019

$41.49

1250e

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1290

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1310

Bushing

506152521

$15.79

2000

Handle

506152821

$3.17

2010

Socket Head Screw M4X 10

205041060

$2.11

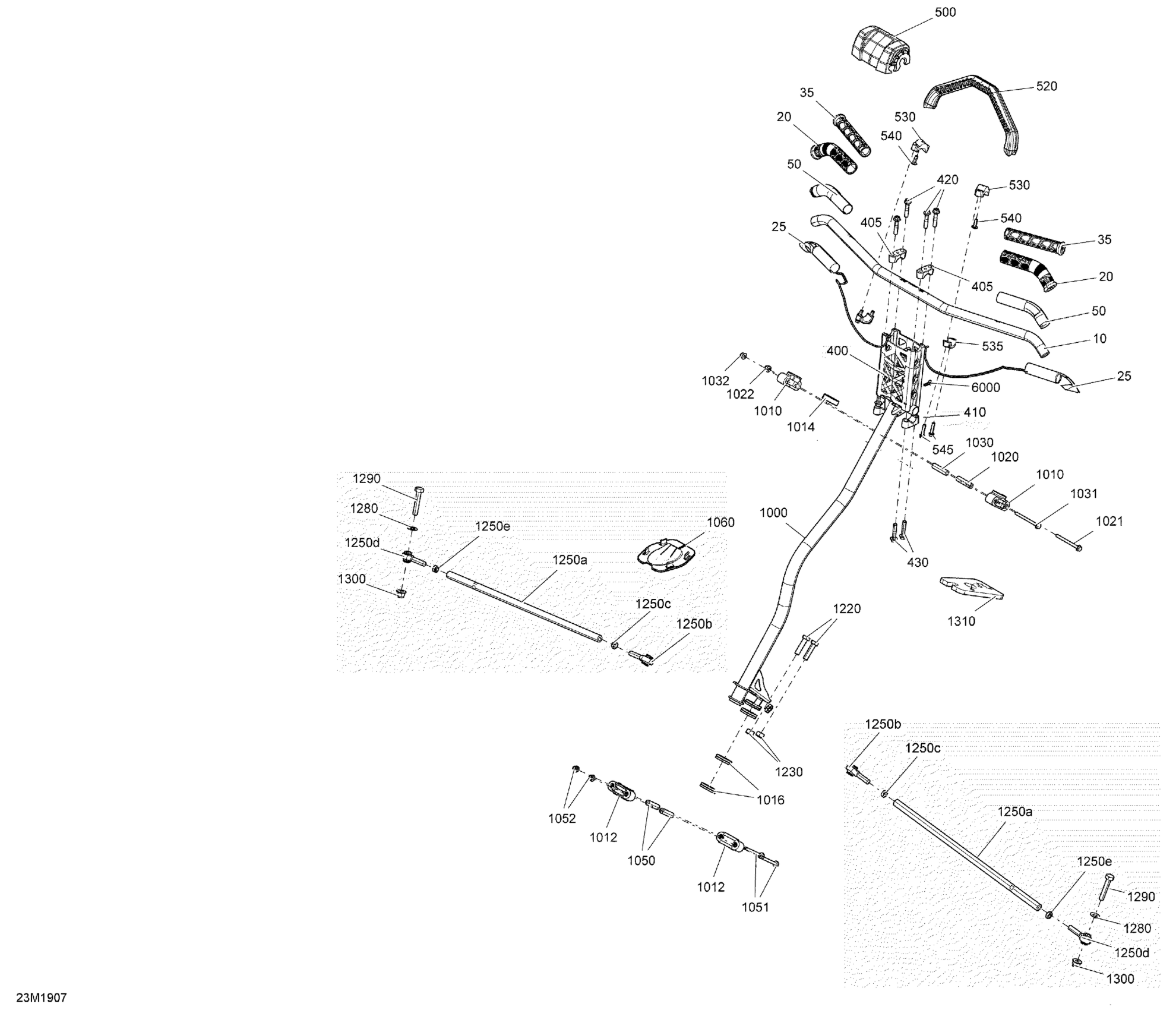

Ski-Doo 001 - SUMMIT 600 CARB, 2019 07- Steering - 600 CARB Diagram

Handle Bar, Non Dyed Clear Anodizing

Grip 148mm

Heating Element 32 Watt 3 Wires

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

Thermal Insulation

Extension Kit ( 205mm ) This part replaces 860200269.

Steering Support | Includes 40 to 40a

Steering Support | Includes 40 to 40a

Hex. Flange Screw M8 X 1.25 x 40

Hex. Flange Screw M8 X 1.25 x 40

Deep Black, Steering Pad

Moulding Strap

Black Support Plate

Clamps | Includes 75a to 75b

Torx Screw M6 X 1.0 X 18, Scotch Grip

Hex. Flange Screw M6 X 25

Steering Column

Upper Half-Housing

Lower Half-Housing

Upper Anti-Vibration Gasket

Lower Vibration Ring

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Plate

Hex. Screw M10 X 1.5 X 40

Elastic Locking Nut M10

Tie-Rod

LH Thread Ball Joint

LH Threaded Hex. Jam Nut M10

RH Threaded Ball Joint

RH Threaded Hex. Jam Nut M10

Washer

Hex Screw M10 X 1.5 X 55

Hex. Flange Elastic M10 x 1.5

Bushing

Handle

Socket Head Screw M4X 10
