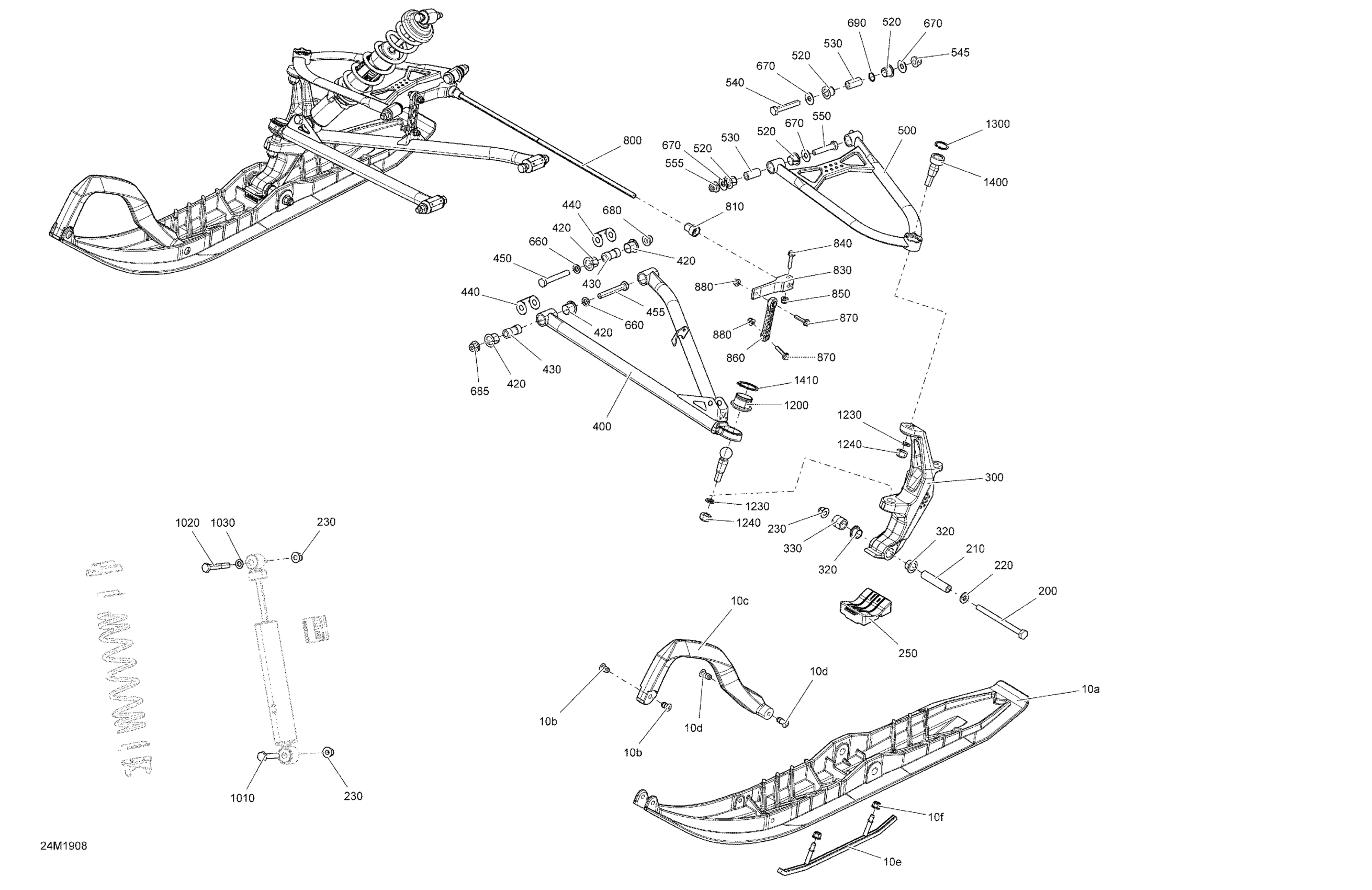

Ski-Doo SUMMIT 600 CARB, 2019 Front Suspension And Ski - 600 CARB Diagram

#

Description
Price

10a

Black, Ski

505073227

$179.99

10b

Retainer 17mm long

505071812

$5.95

10c

Black, Handle

505072976

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10f

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Spacer

506133300

$23.99

220

Washer

732900049

$0.58

230

Hex. Flange Elastic Nut M10

233201414

$1.58

250

Ski Stopper

505074138

$30.49

300

Clear, LH Ski Leg

505073557

$249.99

300

Clear, RH Ski Leg

505073558

$249.99

320

Leg Bushing

505072690

$12.49

330

Spacer

503193651

$9.69

400

Black, Lower Arm RH

505073040

$204.99

400

Black, LH Lower Arm

505073039

$204.99

420

Bushing

505072208

$3.28

430

Sleeve

505072209

$17.84

440

Wear Plate

505072634

$6.29

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

500

Black Upper Arm LH 36"

505073466

$154.99

500

Black Upper Arm RH 36"

505073467

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 50

250001022

$1.69

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabilisator

505073609

$63.99

810

Bushing

505072786

$9.23

830

Stabilisator Lever

505073176

$18.73

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Double Ball Joint Link

505073172

$56.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1010

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

1030

Washer

503189564

$0.74

1200

Ball Joint

505073636

$51.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Circlip

293370035

$2.64
