07- Body - Hull

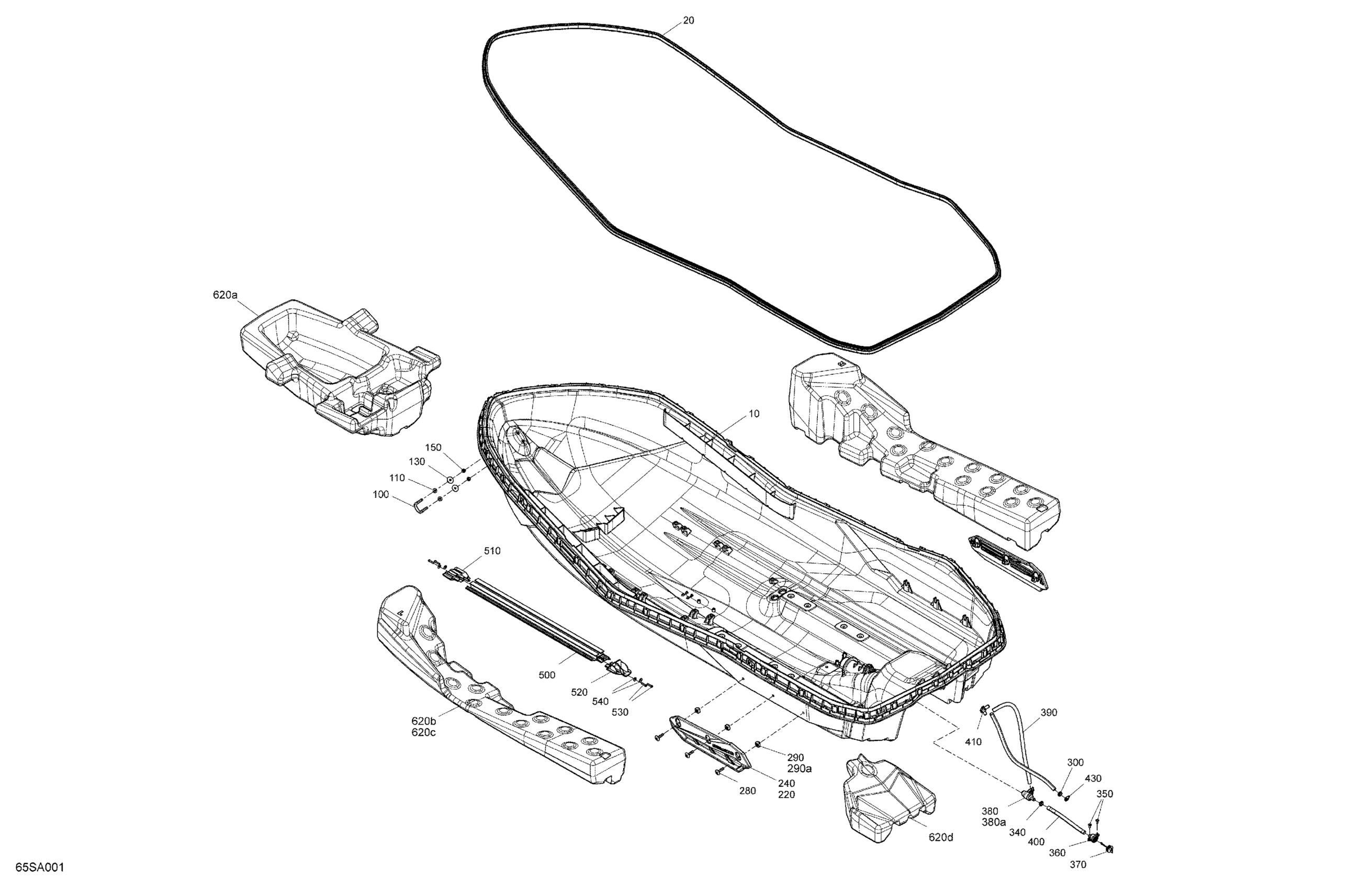

Sea-doo 001 - SPARK 900 ACE, 2021 07- Body - Hull Diagram
#
Description
Price
10
Hull | Includes 10 to 10a
295501188
$1.00
10a
Hull Insert Kit | Includes 10a to 10a3
295501139
$43.99
10a1
Torx-Truss M/S Stlss M6 X 20
250000829
$3.35
10a2
Drill Bite N Size
529036505
Unavailable
20
Seal Joint
293250338
$64.99
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
130
Flat Washer 8 mm, Stainless
250200175
$3.06
150
Hex. Elastic Nut M8 Brass
232581200
$2.22
220
RH Sponson
292002009
$82.99
240
LH Sponson
292002008
$82.99
280
Torx Screw M8 X 35
250000697
$3.91
290
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
290a
Hex. Elastic Nut M8 Brass
232581200
$2.22
300
Rubber Washer
293830063
$1.90
340
Rubber Washer
293830063
$1.90
350
Torx Screw M6 X 14
250000384
$7.51
360
Neck Drain
292001552
$14.49
370
Plug Drain Ass'y | Includes 310 to 310b
292002024
$13.49
380
Bailer Pick-up Ass'y | Includes 540 to 540c
292001636
$25.99
380a
Floating Ball
293830080
$7.19
390
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
400
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
410
Fitting Elbow 90°
293710152
$18.49
430
Tridon Gear Clamp
293650171
$3.09
500
Hull Reinforcement
292001549
$92.99
510
Front End Piece Reinforcement
292001550
$12.99
520
Rear End Piece Reinforcement
292001551
$12.99
530
Hex. Flange Screw K50 X 25
250000680
$1.89
540
Flat Washer 5 mm, Stainless
234052600
$0.77
620a
Front Float
292001439
$92.99
620b
LH Float
292001467
$76.99
620c
RH Float
292001468
$76.99
620d
Rear Float
292001469
$27.99
