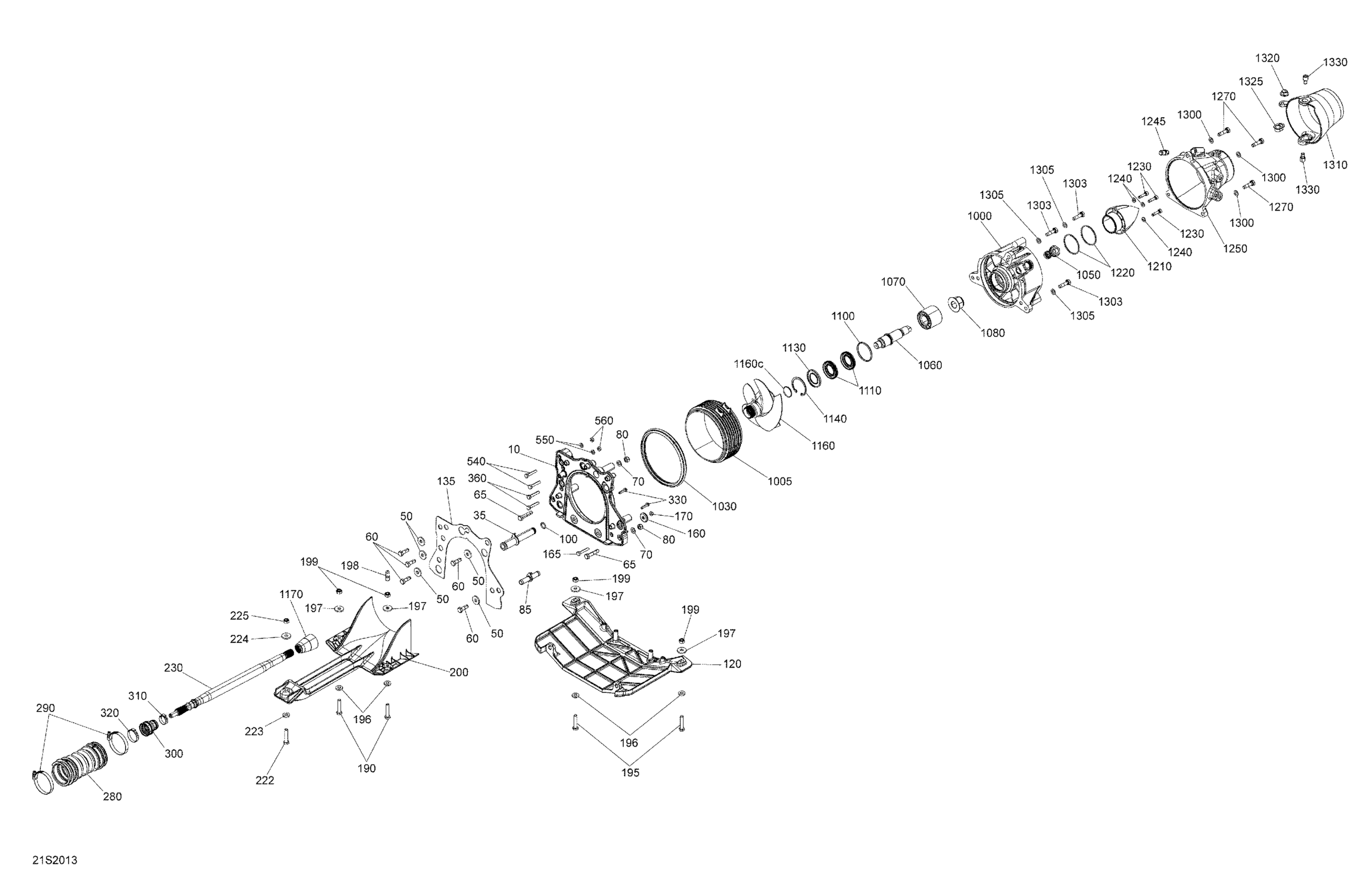

Sea-doo SPARK 900 ACE, 2021 Drive - Propulsion - Built up to Nov 5 2020 Diagram

#

Description
Price

10

Anodized Pump Support

271001956

$40.92

35

Water Straight Fitting, In

271001818

$11.14

50

Flat Washer

279000336

$8.35

60

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

65

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.05

70

Stainless, Flat Washer 8 mm

234081600

$0.46

80

Hex. Elastic Nut M8 Brass

232581200

$1.29

85

Water Straght Fitting, Out

271001817

$11.14

100

O-Ring

293300006

$3.61

120

Riding Plate

271001840

$116.97

135

Gasket

271001958

$19.47

160

Anode Zinc

271001920

$11.43

165

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

170

Elastic Stop Nut M6, Brass

232561200

$3.51

190

Hex. Screw M8 X 40

207184060

$1.85

195

Hex. Screw M8 X 40

207184060

$1.85

196

Flat Washer M8.5 x 18

293050001

$1.29

197

Flat Washer

279000336

$8.35

198

Cap Plug

293000105

$3.38

199

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

Pump Grate

271002011

$42.87

222

Hex. Screw M8 X 40

207184060

$1.85

223

Flat Washer M8.5 x 18

293050001

$1.29

224

Flat Washer

279000336

$8.35

225

Hex. Elastic Nut M8 Brass

232581200

$1.29

230

Drive Shaft

271002072

$257.37

280

Bellow

271001921

$16.87

290

Norma Clamp

293650079

$8.89

300

Protector Sleeve Kit | Includes 300 TO 320

295501148

$10.79

310

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

320

Oetiker Gear Clamp

509000181

$3.61

330

Hex. Screw 10-14 X 7/8”

211000023

$2.91

360

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

540

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

550

Stainless Flat Washer M6

234061600

$0.25

560

Elastic Stop Nut M6, Brass

232561200

$3.51

1000

Impeller Housing

267000856

$219.02

1005

Wear Ring

267000925

$65.62

1030

Neoprene Seal

293200134

$12.49

1050

Plug | Includes 370z to 370z1

267000282

$14.27

1060

Impeller Shaft

267000581

$94.22

1070

Conical Bearing

267000583

$66.39

1080

Elastic Flange Nut M20

250100104

$9.71

1100

O-Ring

293300090

$5.97

1110

Seal

271002071

$26.62

1130

Oil Seal

293200089

$15.57

1140

Circlip

293370038

$7.12

1160<1160c

Impeller Ass'y | Includes 1160 to 1160c

267001070

$317.17

1160c

O-Ring

293300044

$0.86

1170

Boot Impeller | Includes 1170 to 1170b

267000829

$17.52

1210

Impeller Cover

267000769

$16.22

1220

O-Ring

293300096

$0.83

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

1240

Stainless Flat Washer M6

234061600

$0.25

1245

Siphon Tube

267000782

$4.89

1250

Venturi

267000909

$150.12

1270

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

1300

Flat Washer M8, Stainless

234080600

$1.25

1303

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

1305

Flat Washer M8, Stainless

234080600

$1.25

1310

Nozzle

267000705

$60.42

1320

Venturi Bushing

293900007

$3.71

1325

Plastic Bushing

293900010

$7.15

1330

Socket Head Screw M8 X 13

268000141

$6.84
