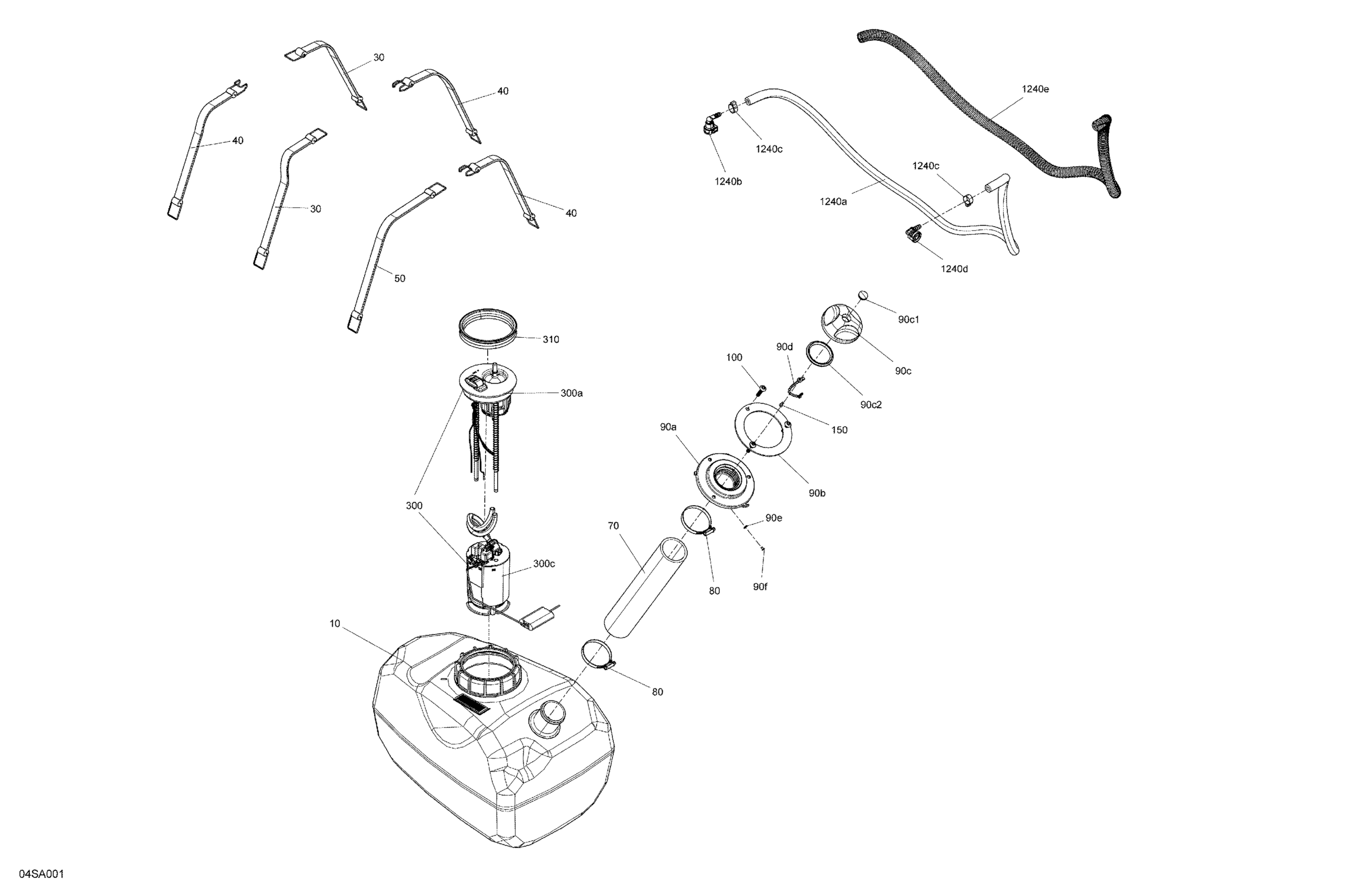

Sea-doo SPARK 900 ACE, 2021 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

275500982

$349.99

30

Fuel Tank Strap

293850095

$19.99

40

Fuel Tank Strap

293850094

$22.49

50

Fuel Tank Strap

293850093

$21.99

70

Filler Neck Hose

275500935

$83.99

80

Norma Clamp

293650081

$12.18

90a

Filler Neck

275500857

$17.39

90b

Gasket

293250298

$16.34

90c

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$59.49

90c1

Black, Snap Cap

293000034

$9.39

90c2

Gasket

293250417

$3.91

90d

Fuel Cap Chain

275500974

$19.99

90e

Flat Washer M3, Stainless

234032600

$0.55

90f

Pop Rivet 1/8"

390407900

$1.49

100

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

150

Screw K40 X 10

241140060

$1.48

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

300a

Sensor Lever

275500780

$224.99

300c

Fuel Filter

270600113

$33.99

310

Gasket

293250173

$18.49

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Disconnect

275500921

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Elbow Fitting 90°

293710105

$14.22

1240e

Tubing 16 Mm 1000Mm Long

219704408

$7.49
