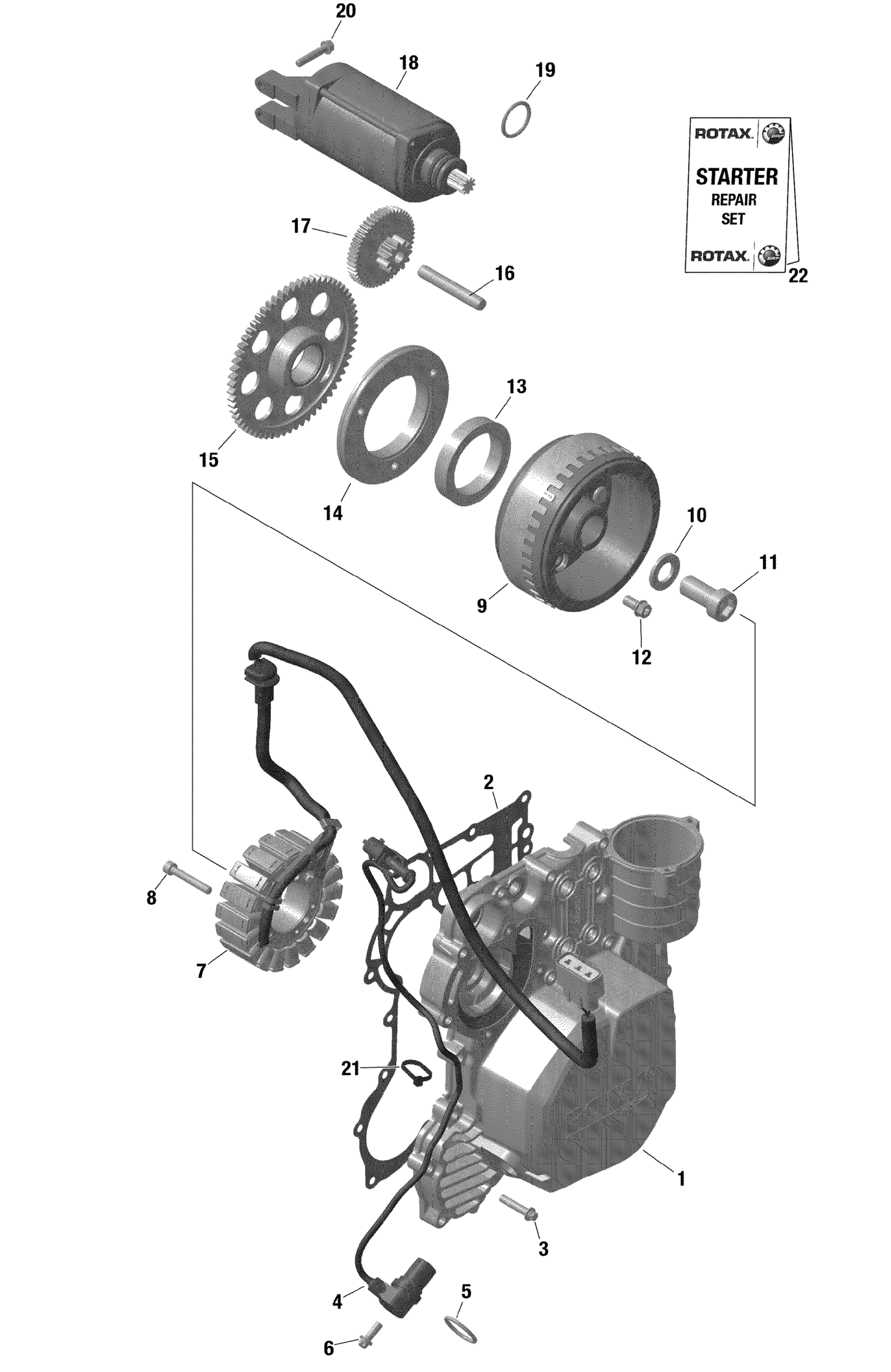

Sea-doo SPARK 900 ACE, 2021 Rotax - Magneto And Electric Starter / Built from Nov 6 2020 Diagram

Description

Price

Cover

420911052

$164.90

Gasket

420431640

$31.82

Torx Flange Screw M6 X 30

420840663

$4.72

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

O-Ring

420431580

$12.29

Torx Flange Screw M6 X 16

420641048

$2.46

Stator Plate 420W

420296908

$278.82

Allen Screw M6 X 40

420241956

$2.63

Flywheel Ass'y 420W

420685702

$379.99

Shim

420627270

$3.38

Socket Head Screw M16 X 35

420241549

$7.05

Torx Flange Screw M8 X 16

420440854

$3.61

Sprag Clutch

420659113

$205.37

Sparg Clutch Housing

420659263

$122.82

Free Wheel Gear, 64 Teeth

420434238

$88.37

Needle Pin

420229475

$12.29

Starter Double Gear 11/49 T

420634741

$155.97

Starter Ass'y | Includes 8 to 9

420893830

$223.57

O-Ring

420250145

$7.87

Torx Flange Screw M6 X 30

420840663

$4.72

Tie Rap

420866714

$1.56

Carbon Brush Set

420881145

$182.06
