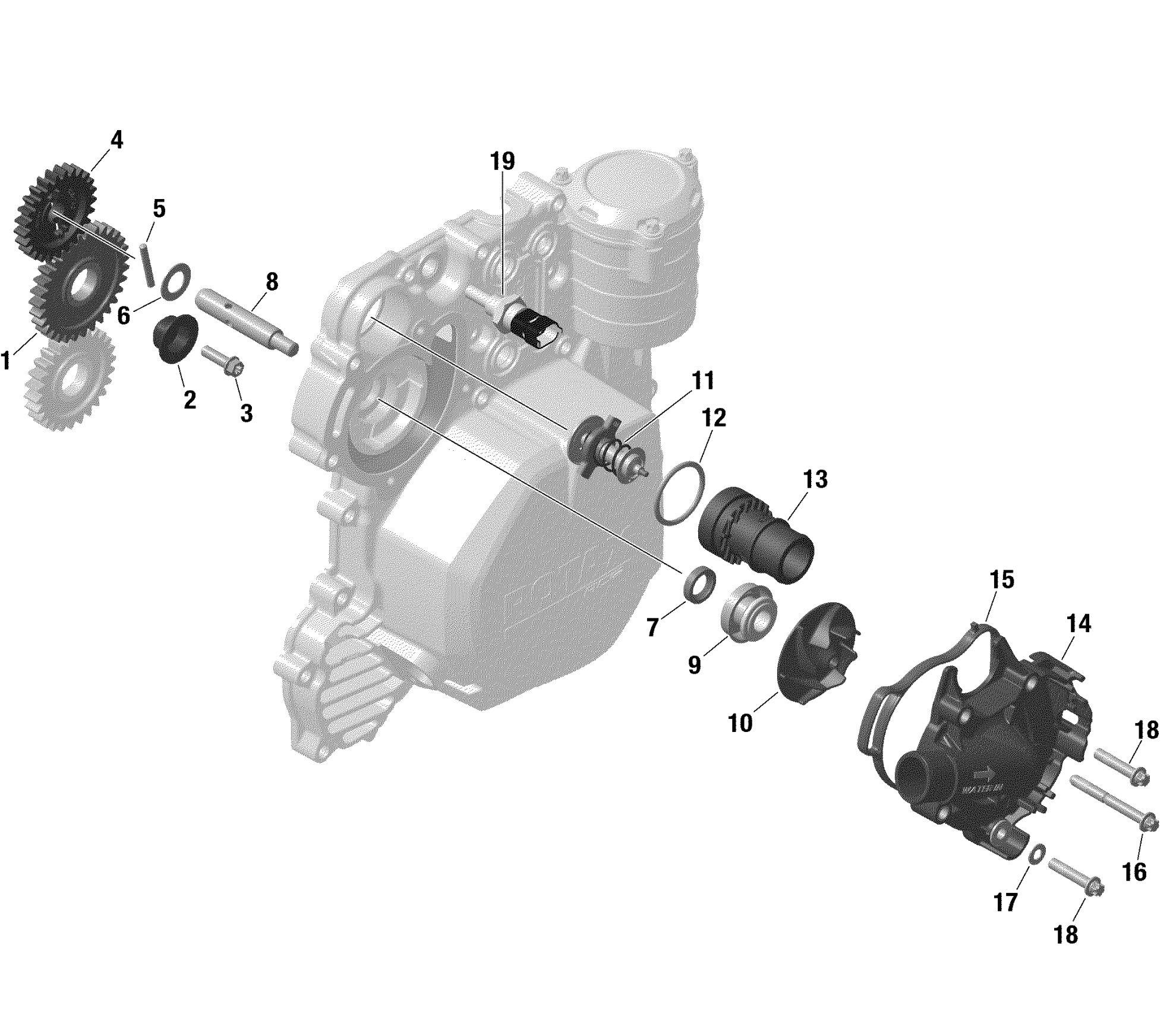

Sea-doo SPARK 900 ACE, 2021 Rotax - Engine Cooling / Built from Nov 6 2020 Diagram

Description

Price

Idle Gear, 31 Teeth

420835067

$19.47

Spacer

420947394

$20.77

Torx Flange Screw M6 X 20

420440207

$2.54

Water Pump Gear

420835230

$5.29

Needle Pin

420232431

$3.67

Thrust Washer

420827261

$6.18

Oil Seal

420931802

$5.29

Waterpump Shaft

420820150

$20.77

Seal

420850946

$27.92

Water Impeller

420222880

$6.21

Thermostat 80°

420822651

$29.87

Water Pump Housing O-Ring

420950896

$8.75

Thermostat Cover

420922155

$7.80

Water Pump Housing

420922293

$59.12

Water Pump Housing Gasket

420431682

$15.57

Torx Flange Screw M6 X 55

420840673

$4.72

Sealing Washer

404146600

$0.62

Torx Flange Screw M6 X 30

420840663

$4.72

Temperature Sensor

278002895

$31.82
