01- Rotax - Crankcase / Built from Nov 6 2020

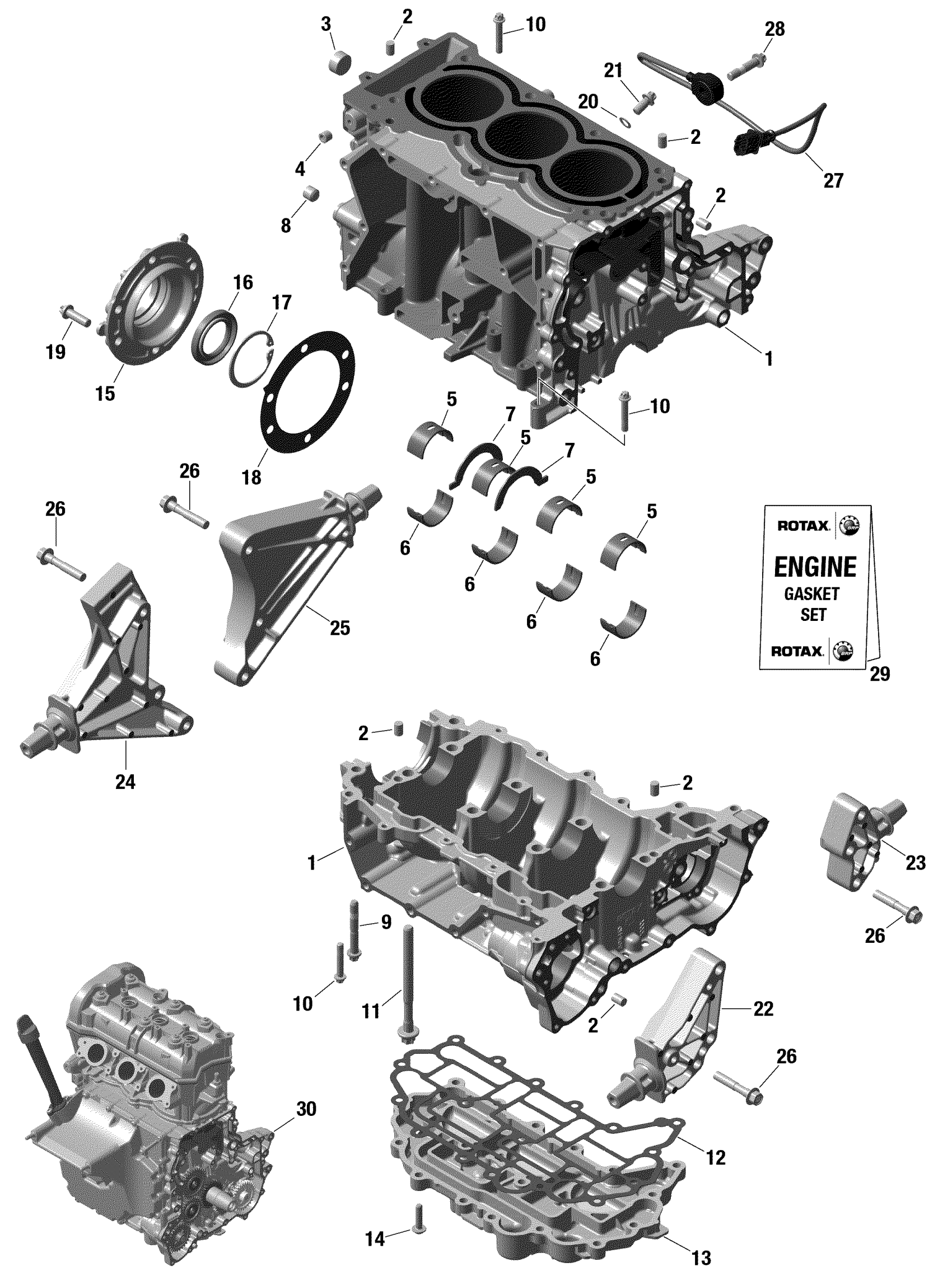

Sea-doo 001 - SPARK 900 ACE, 2021 01- Rotax - Crankcase / Built from Nov 6 2020 Diagram
#
Description
Price
1
Engine Block | Includes 1 to 6
420894026
$2,031.49
2
Center Pin 8 X 12
420632010
$4.01
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Plug Screw M10 X 1
420641323
$14.28
5
Cushion
420933180
$17.58
6
Cushion
420933185
$18.49
7
Ring Half
420933140
$11.60
8
Threaded Pin
420840508
$18.49
9
Torx Flange Screw M8 X 55
420641213
$7.41
10
Torx Flange Screw M6 X 35
420641258
$3.38
11
Torx Flange Screw M9 X 113
420940945
$13.70
12
Gasket
420431820
$15.89
13
Oil Sump
420912381
$102.99
14
Torx Flange Screw M6 X 25
420841548
$5.40
15
PTO cover | Includes no. 15-17
420911689
$174.49
16
Oil Seal | Included in gasket kit
420850220
$38.99
17
Retaining Ring
420945820
$6.99
18
PTO Cover Gasket
420450080
$7.65
19
Torx Flange Screw M8 X 25
420641248
$5.82
20
Sealing Ring
420950142
$5.09
21
Torx Flange Screw M8 X 16
420441653
$4.97
22
Front Engine Bracket, Intake
420911770
$58.99
23
Front Engine Bracket, Exhaust
420911775
$58.99
24
Rear Engine Bracket, Intake
420911780
$64.99
25
Rear Engine Bracket, Exhaust
420911785
$64.99
26
Hex. Flange Screw M8 X 45
420641208
$7.51
27
Noise Sensor
420664031
$63.99
28
Torx Flange Screw M8 X 35
420641188
$7.41
29
Gasket Set
420686238
$518.99
30
Long Block 903
420090336
$4.00
