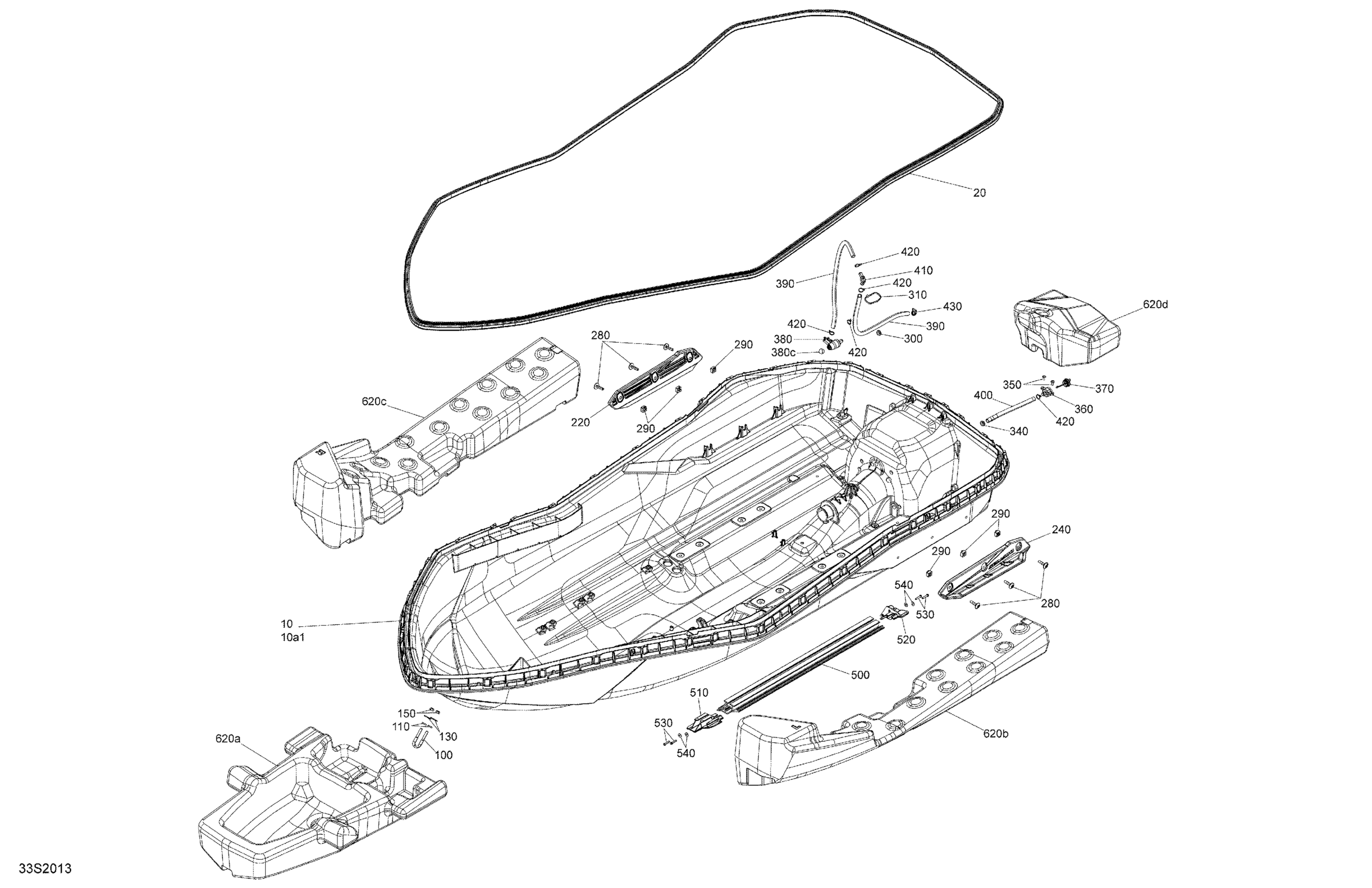

Sea-doo Spark 900 ACE, 2020 Hull Diagram

#

Description
Price

10

Hull | Includes 10 to 10a

295501188

$1,280.57

10a1

Hull Insert Kit | Includes 10a to 10a3

295501139

$39.52

20

Seal Joint

293250338

$58.18

100

U-Clamp

292000933

$37.28

110

Flat Washer M8.5 x 18

293050001

$1.48

130

Flat Washer 8 mm, Stainless

250200175

$1.48

150

Hex. Elastic Nut M8 Brass

232581200

$1.48

220

RH Sponson

292002009

$73.85

240

LH Sponson

292002008

$73.85

280

Torx Screw M8 X 35

250000697

$3.73

290

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

300

Rubber Washer

293830063

$1.73

310

Tie Wrap 368 mm

293750008

$0.97

340

Rubber Washer

293830063

$1.73

350

Torx Screw M6 X 14

250000384

$7.06

360

Neck Drain

292001552

$12.79

370

Plug Drain Ass'y | Includes 310 to 310b

292002024

$11.81

380<380c

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$23.10

380c

Floating Ball

293830080

$6.39

390

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$6.82

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$6.82

410

Fitting Elbow 90°

293710152

$17.13

420

Tie Wrap 94 mm | 4X4

293750001

$0.96

430

Tridon Gear Clamp

293650171

$2.82

500

Hull Reinforcement

292001549

$82.81

510

Front End Piece Reinforcement

292001550

$9.45

520

Rear End Piece Reinforcement

292001551

$9.45

530

Hex. Flange Screw K50 X 25

250000680

$1.67

540

Flat Washer 5 mm, Stainless

234052600

$0.73

620a

Front Float

292001439

$82.81

620b

LH Float

292001467

$68.63

620c

RH Float

292001468

$68.63

620d

Rear Float

292001469

$24.60
