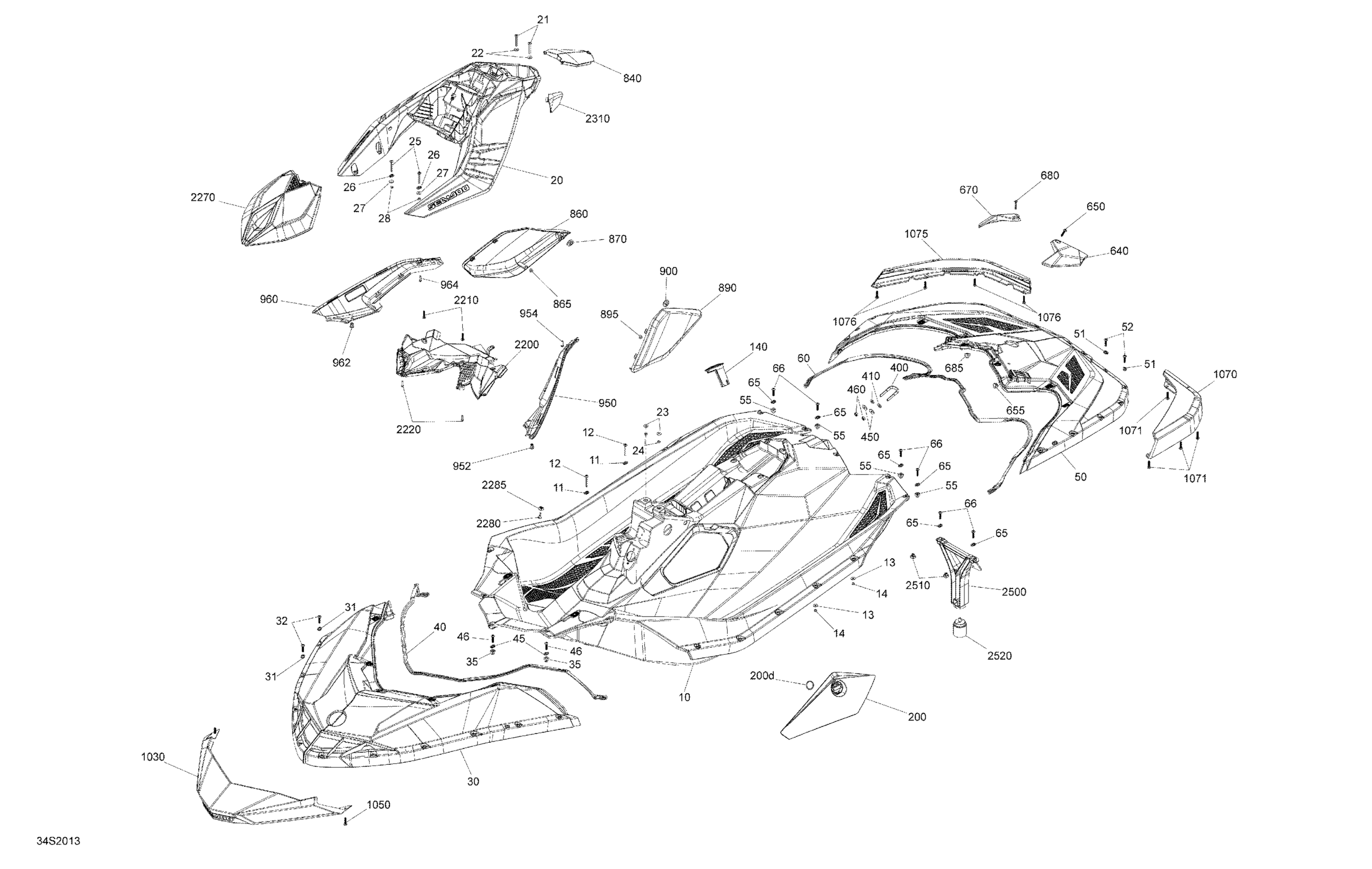

Sea-doo 001 - Spark 900 ACE, 2020 09- Body Diagram
#
10
Deep Black, Mid Deck
291004646
$1.00
11
Oval Washer
291003880
$1.77
12
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
13
Flat Washer M6, Stainless
234062600
$0.77
14
Elastic Stop Nut M6, Brass
232561200
$4.23
20
Console Front | Includes 20 to 20a
291005057
$184.99
21
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
22
Flat Washer M6, Stainless
250200150
$3.49
23
Flat Washer M6, Stainless
234062600
$0.77
24
Elastic Stop Nut M6, Brass
232561200
$4.23
25
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
26
Oval Washer
291003880
$1.77
27
Flat Washer M6, Stainless
234062600
$0.77
28
Elastic Stop Nut M6, Brass
232561200
$4.23
30
Bright White, Front Deck
291004581
$264.99
30
Dazzling Blue, Front Deck | Model Manta Green
291005190
$259.99
31
Oval Washer
291003880
$1.77
32
Screw Torx M6.81 X 30
250001007
$2.54
35
Insert
291003793
$3.56
40
Seal Joint
293250341
$41.49
45
Oval Washer
291003880
$1.77
46
Screw Torx M6.81 X 30
250001007
$2.54
50
Bright White, Rear Deck
291004586
$264.99
50
Dazzling Blue, Rear Deck | Model Manta Green
291005191
$264.99
51
Oval Washer
291003880
$1.77
52
Screw Torx M6.81 X 30
250001007
$2.54
55
Insert
291003793
$3.56
60
Seal Joint
293250340
$41.49
65
Oval Washer
291003880
$1.77
66
Screw Torx M6.81 X 30
250001007
$2.54
140
Deep Black, Rear Access Cover
291003390
$42.99
200<200d
Deep Black, Front Access Cover | Includes 200 to 200d
291004155
$47.99
200d
O-Ring
293300121
$8.32
400
U-Clamp
292000933
$59.49
410
Flat Washer M8.5 x 18
293050001
$3.07
450
Flat Washer 8 mm, Stainless
234082600
$2.43
460
Hex. Elastic Nut M8 Brass
232581200
$2.22
640
Deep Black, LH Rear Panel Trim
291003883
$28.99
650
Screw Torx M6.81 X 30
250001007
$2.54
655
Insert
291003793
$3.56
670
Deep Black, RH Rear Panel Trim
291003884
$28.99
680
Screw Torx M6.81 X 30
250001007
$2.54
685
Insert
291003793
$3.56
840
Deep Black, Glove Box Cover
291003378
$65.99
860
Manta Green, RH Knee Pads | Model Manta Green
291004732
$111.49
860
Gulfstream Blue, RH Knee Pads | Model Gulfstream Blue
291004733
$111.49
865
Rubber Bumper
293830005
$8.09
870
Oval Washer
705000321
$5.61
890
Manta Green, LH Knee Pads | Model Manta Green
291004736
$110.99
890
Gulfstream Blue, LH Knee Pads | Model Gulfstream Blue
291004737
$110.99
895
Rubber Bumper
293830005
$8.09
900
Oval Washer
705000321
$5.61
950
Bright White, LH Panel Trim
291004524
$28.99
950
Bright White, LH Panel Trim
291004524
$28.99
952
Tuflok Plastic Rivet
293150230
$1.47
954
Hex. Screw 10-14 X 7/8”
211000023
$3.59
960
Bright White, RH Panel Trim
291004525
$28.99
960
Bright White, RH Panel Trim
291004525
$28.99
962
Tuflok Plastic Rivet
293150230
$1.47
964
Hex. Screw 10-14 X 7/8”
211000023
$3.59
1030
Front Bumper
291004567
$116.49
1050
Screw Torx M6.81 X 30
250001007
$2.54
1070
Black, LH Rear Bumper
291004568
$37.99
1071
Screw Torx M6.81 X 30
250001007
$2.54
1075
Black, RH Rear Bumper
291004569
$37.99
1076
Screw Torx M6.81 X 30
250001007
$2.54
2200
Black, Inferior Cover
291004575
$93.99
2210
Screw Torx M6.81 X 30
250001007
$2.54
2220
Hex. Screw 10-14 X 7/8”
211000023
$3.59
2270
Gulfstream Blue, Front Trim | Model Gulfstream Blue
291004592
$67.99
2270
Manta Green, Frontal Trim | Model Manta Green
291004981
$28.99
2280
Torx-Truss M/S Stlss M6 X 20
250000829
$3.35
2285
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
2310
Cap
291003702
$18.99
2500
Rear Support
291003440
$25.99
2510
Insert
291003793
$3.56
2520
Rear Support Mount
291003694
$20.99
