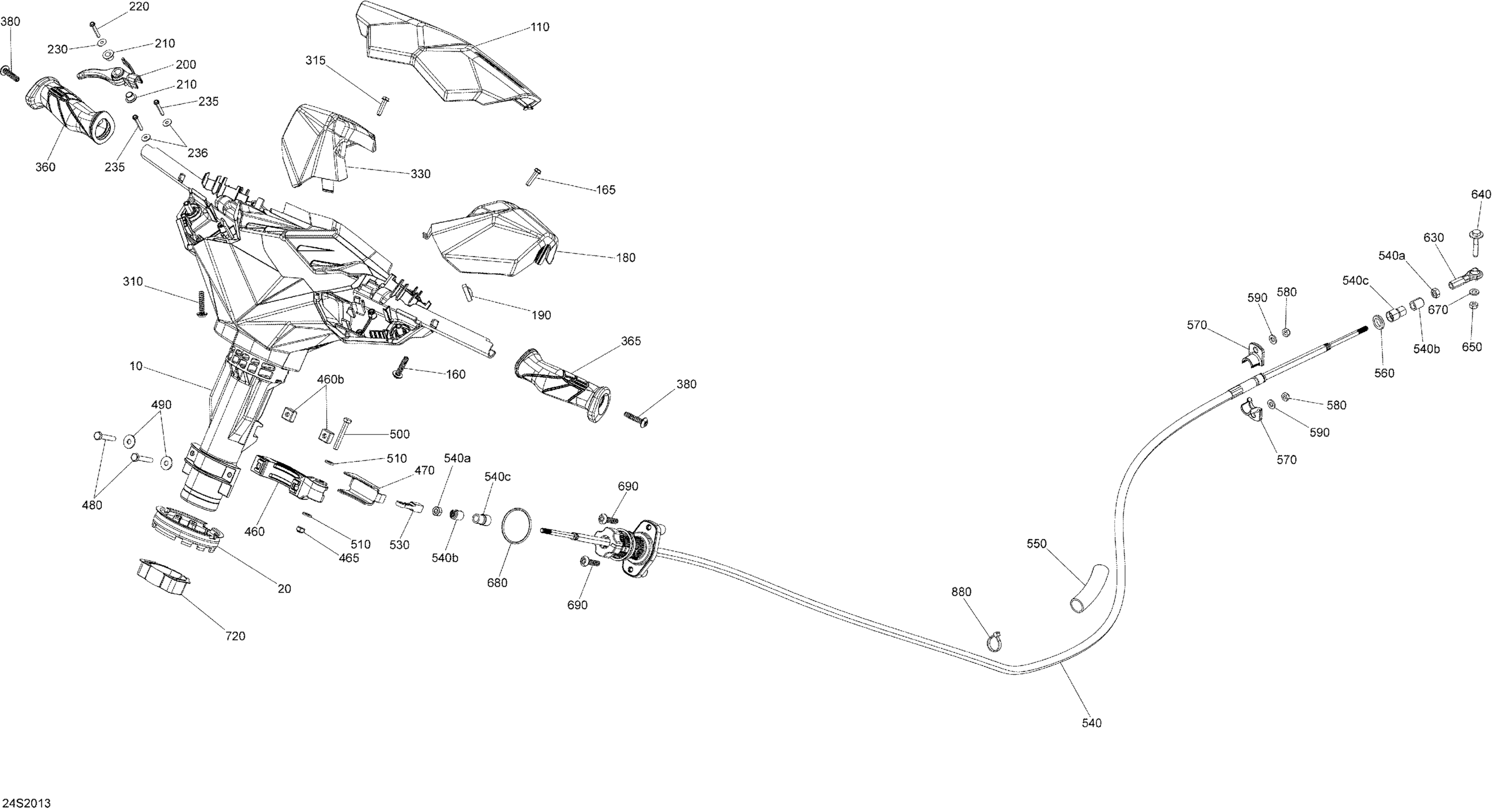

Sea-doo Spark 900 ACE, 2020 Steering Diagram

#

Description
Price

10

Steering

277001952

$206.69

20

Wear Ring

277001874

$11.18

110

Bright White, Steering Pad

277001786

$25.34

160

Screw Torx M6.81 X 30

250001007

$1.85

165

Hex. Screw 10-14 X 7/8”

211000023

$3.34

180

Deep Black, LH Cover

277001787

$17.88

180

Deep Black, LH Cover

277001787

$17.88

190

Red, Knob Switch

277001887

$8.66

200

Hand Lever Accelerator

277002138

$35.04

210

Bushing

293900091

$3.84

220

Hex. Flange Screw K40 X 25

241142560

$2.49

230

Flat Washer 4 mm, Stainless

234042600

$1.06

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

310

Screw Torx M6.81 X 30

250001007

$1.85

315

Hex. Screw 10-14 X 7/8”

211000023

$3.34

330

Deep Black, RH Cover

277001788

$17.88

360

Deep Black, RH Handle Grip

277001946

$17.88

365

Deep Black, LH Handle Grip

277001958

$17.88

380

Screw Torx M6.81 X 30

250001007

$1.85

460<460b

Support Ass'y | Includes 460 to 460b

277002179

$20.12

460b

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

465

Elastic Stop Nut M6, Brass

232561200

$4.03

470

Spacer

277001654

$13.09

480

Hex. Screw M6 X 35

207163560

$1.34

490

Flat Washer M6, Stainless

234062600

$0.73

500

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540<540c

Steering Cable | Includes 540 to 540c

277002065

$241.76

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

540c

End Piece

277001583

$12.79

550

Sheat Corrugated 19 MM ID

276000446

$0.51

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Elastic Stop Nut M6, Brass

232561200

$4.03

590

Stainless Flat Washer M6

234061600

$0.28

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.03

670

Stainless Flat Washer M6

234061600

$0.28

680

O-Ring

293300176

$1.07

690

Screw Torx M6.81 X 30

250001007

$1.85

720

Wear Ring

277002318

$14.27

880

Tie-Rap 180 mm

414115200

$0.10
